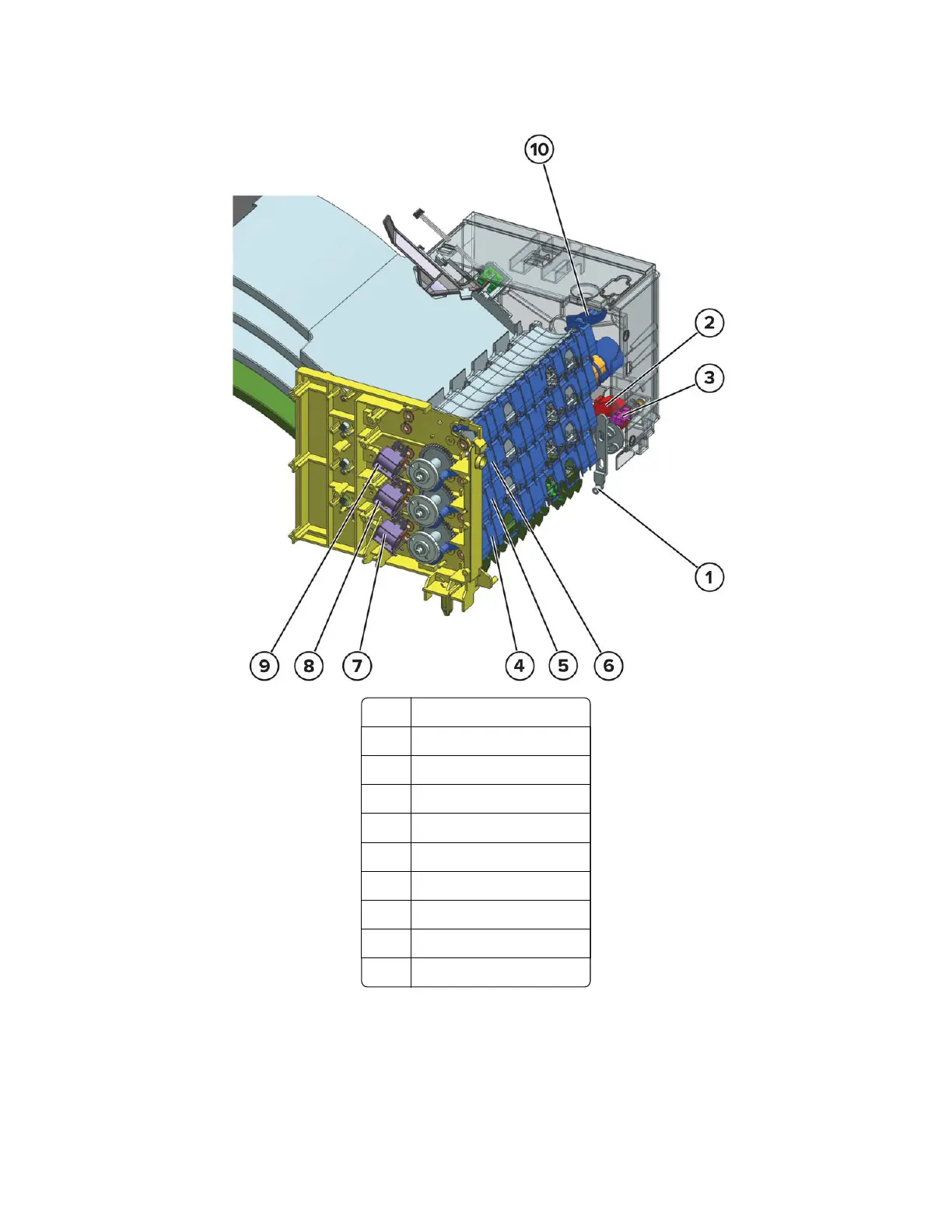

Mailbox diverter drive
1 Diverter plunger
2 Motor (diverter)
3 Sensor (diverter plunger)
4 Diverter 1
5 Diverter 2
6 Diverter 3
7 Diverter 1 solenoid
8 Diverter 2 solenoid
9 Diverter 3 solenoid
10 Mailbox top diverter
The diverter (from the printer or optional bin) under the mailbox switches to open up the paper path of the
mailbox. The diverter plunger controls the position of the diverter below it. The motor (diverter) drives the
movement of the plunger. The sensor (diverter plunger) detects the position of the plunger.
4064
Theory of operation
