SF bin section
Ejector drive
4
3
2
1
1 Ejector paddles
2 Sensor (staple throat paper present)
3 Sensor (staple finisher ejector)
4 Motor (staple finisher ejector)

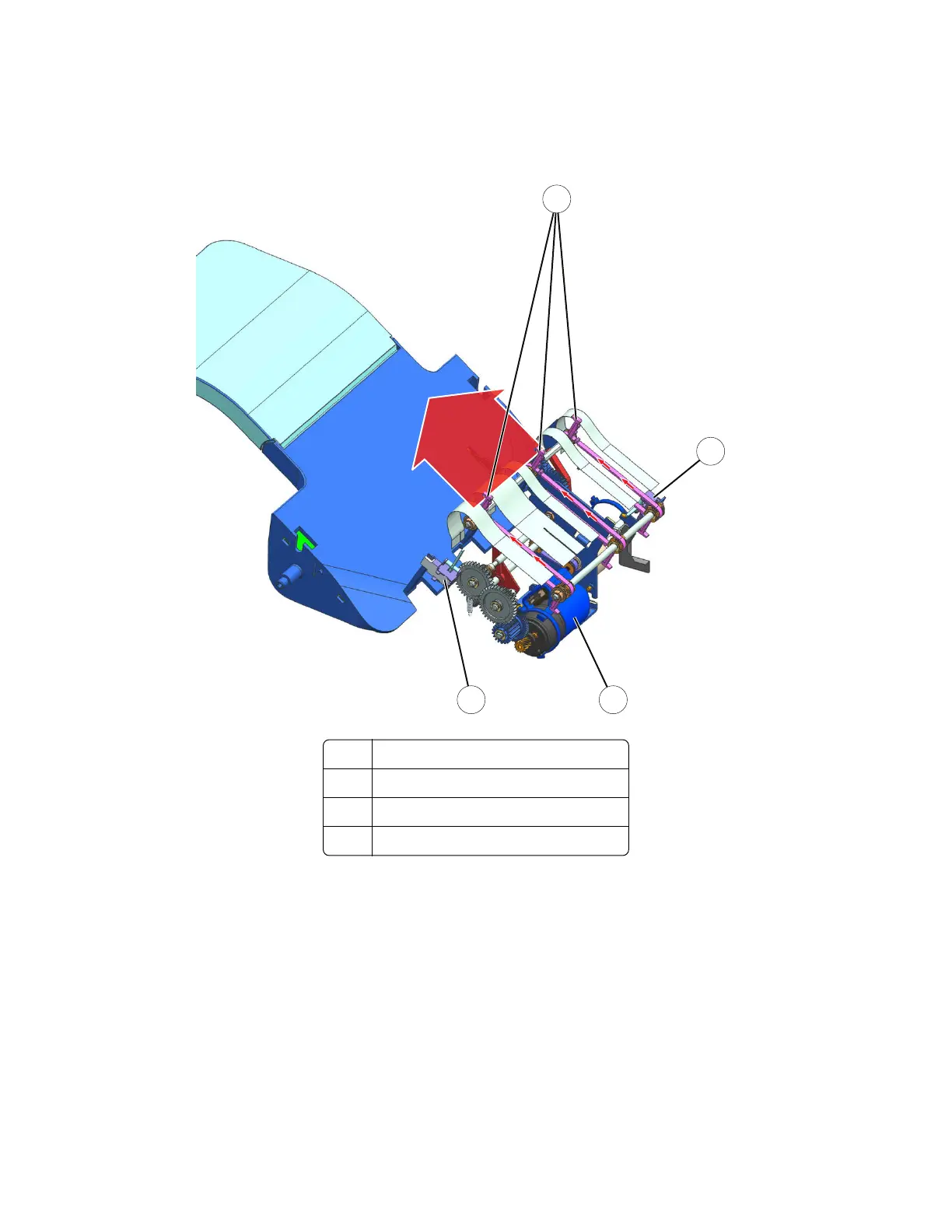

After the paper stack is stapled, the ejector paddles that are connected to a belt push the stack toward the bin.
The motor (SF ejector) drives the ejector belt. The sensor (SF ejector) detects the ejector belt at its home
position.
