6
R

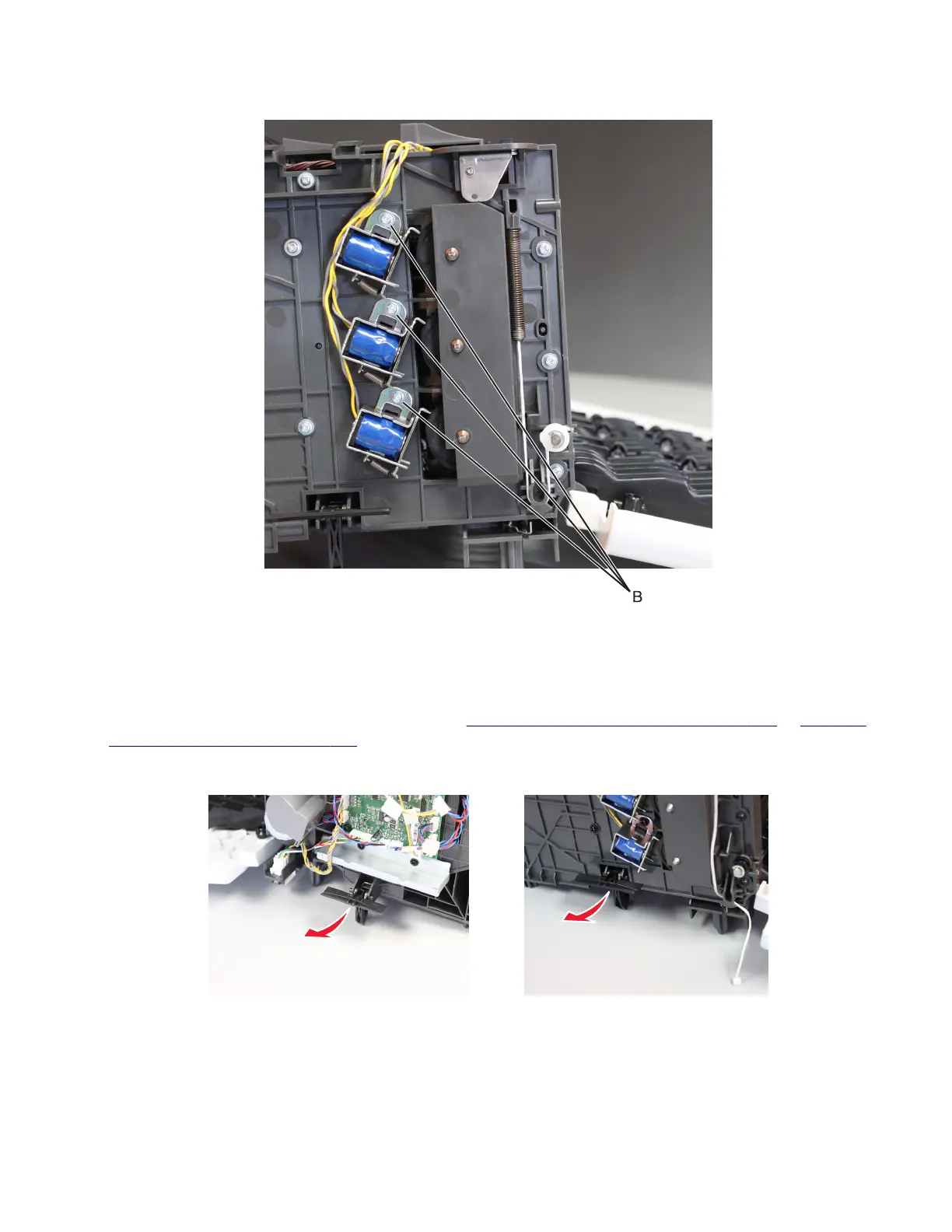

emove the screw (B) securing the solenoid.
7
R
oute the cable o the mailbo
x,
the
n remove the so
lenoid.
Mailbo
x latch removal
1
R
emove the mailbo
x left cover or right cover
. See
“Mailbo
x left cover removal” on page
654
or
“Mailbo
x
right cover removal
” on page
651
.
2
Pull the latches o the
mailbo
x, and then remove.
4064
Parts removal
657
656
658
