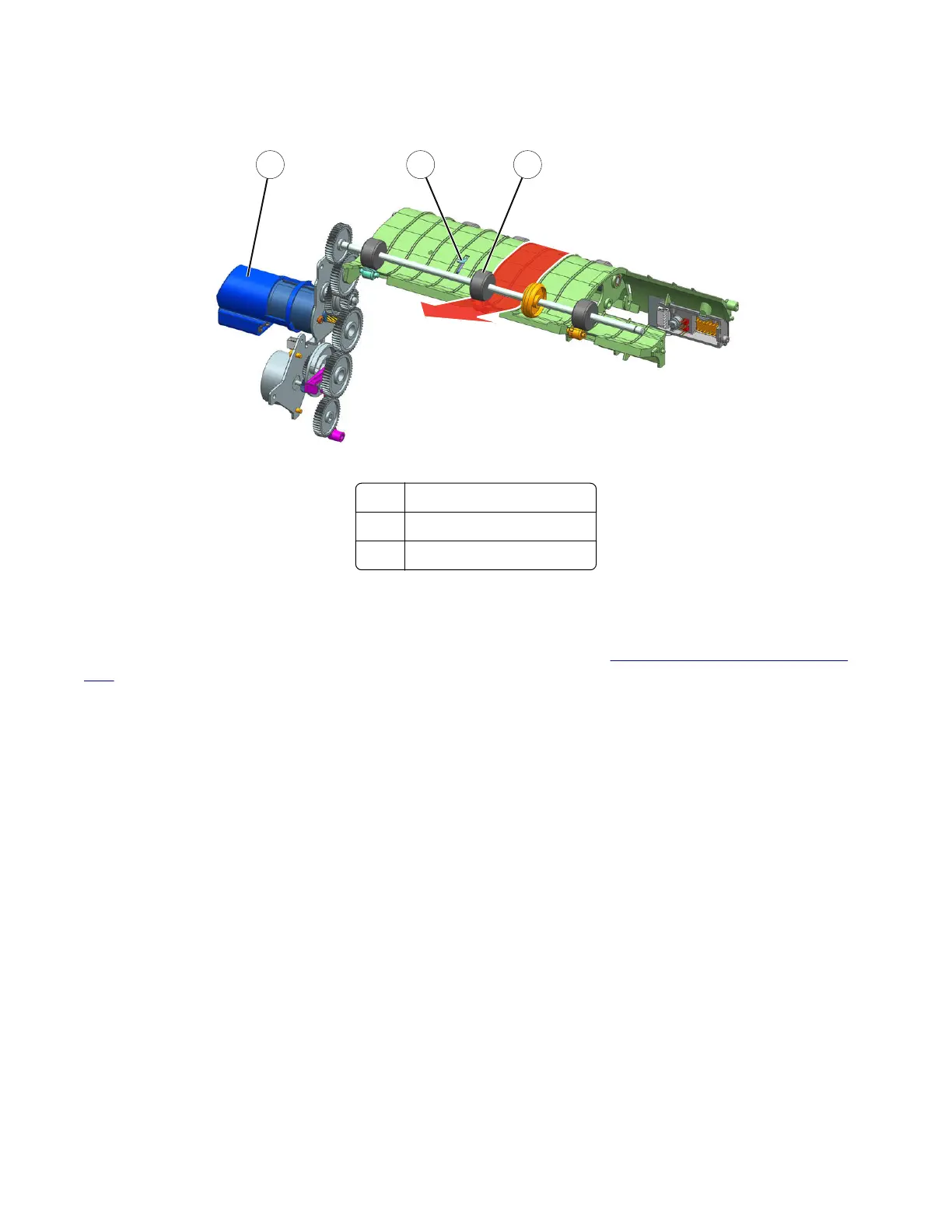

SHPF exit drive
13 2
1 Sensor (HPU trailing edge)
2 Exit roller
3 Motor (SHPF transport)
The exit roller receives the paper from the transport rollers, and then ejects the paper to the tamper tray. Paper
is stacked on the tamper tray in preparation for stapling.
The motor (SHPF transport) drives both the exit and entrance rollers (see
“SHPF entrance drive” on page
903).
4064
Theory of operation
906
