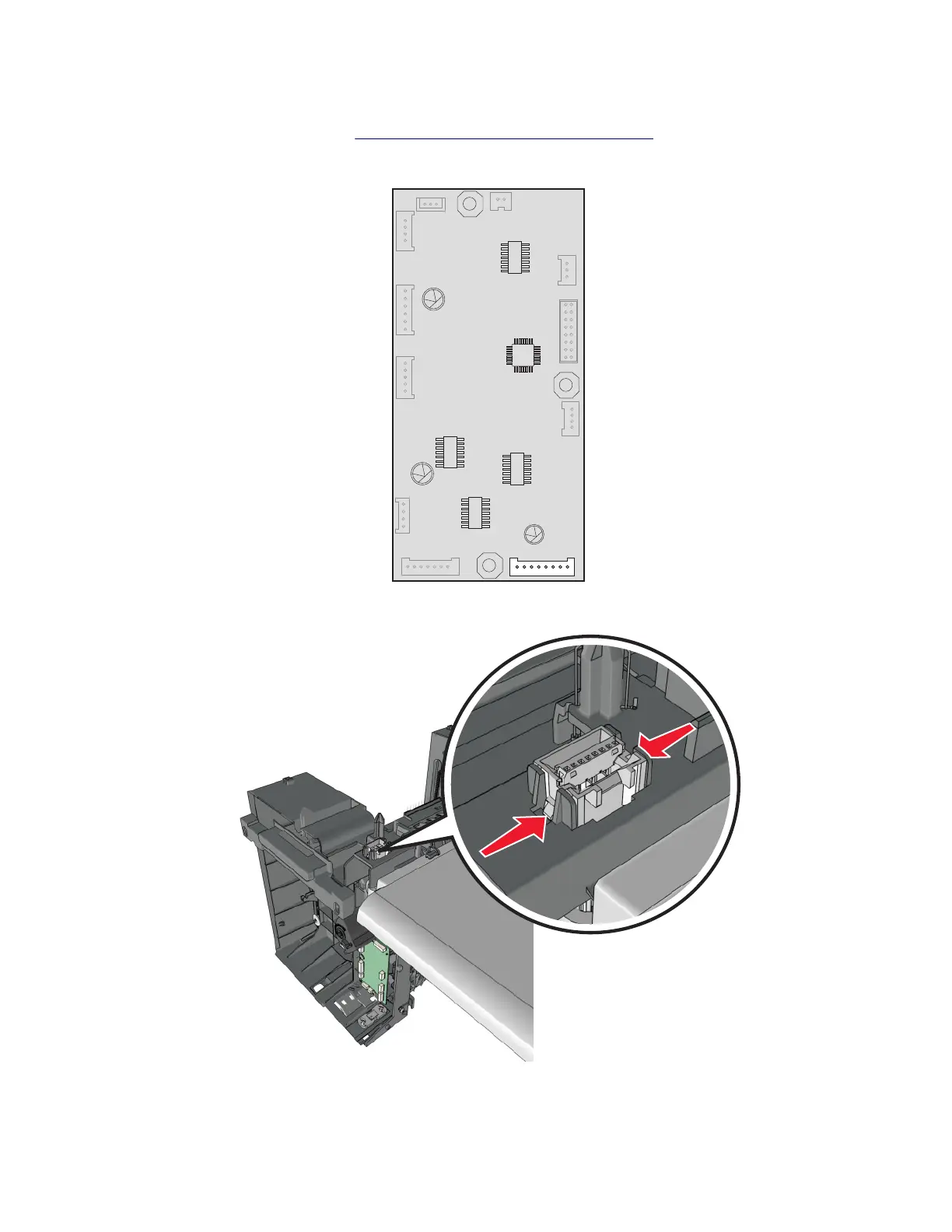

HCOE lower interface cable removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
2 Disconnect the lower interface cable J1 from the controller board.
3 Push inward to release the latches, then push the connector out of its slot.
4 Remove the lower interface cable.
4064
Parts removal
553
