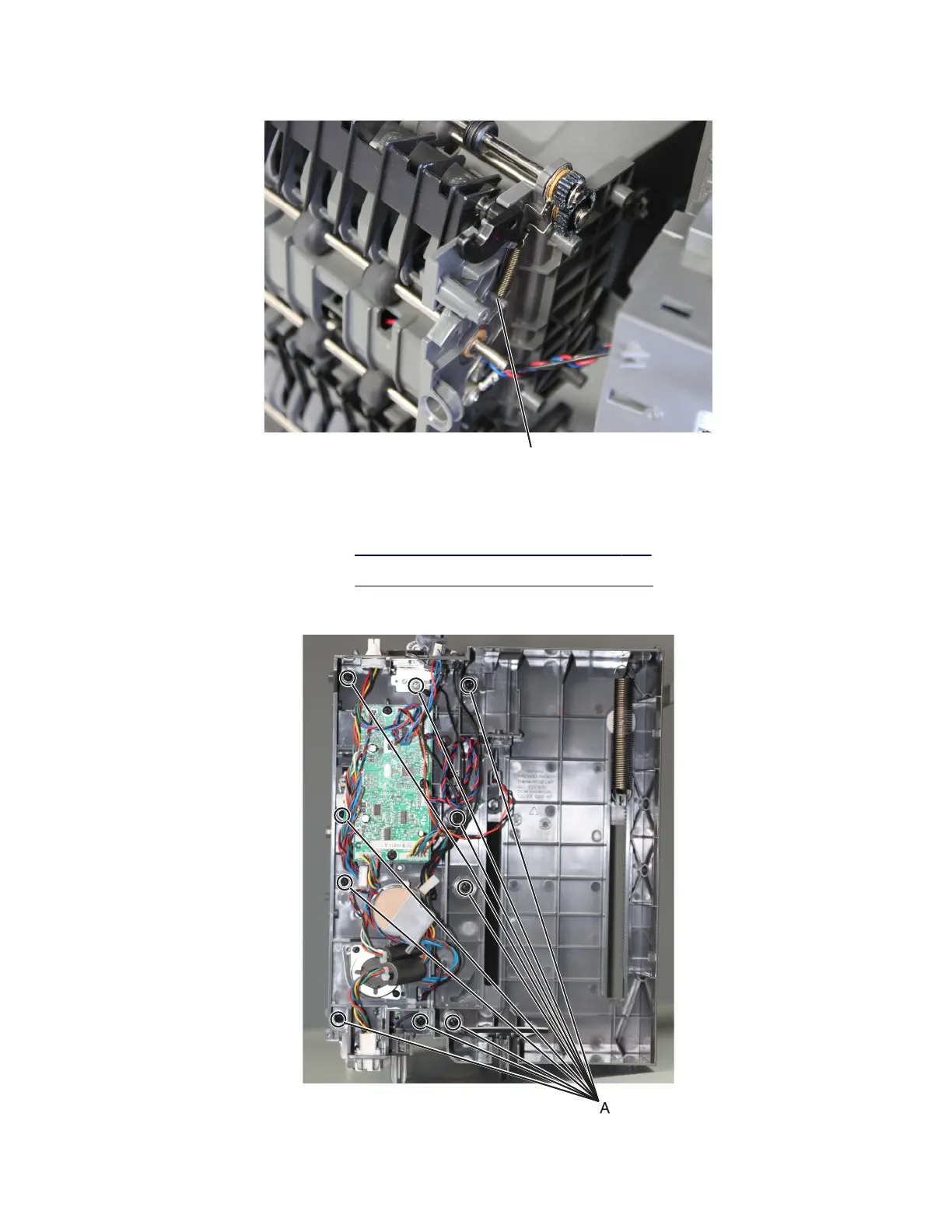

5 Unhook the lower end (B) to release, and then remove the spring.
B
HCOE top diverter removal
1 Remove the HCOE rear door. See “HCOE rear door removal” on page 546.
2 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
3 Remove the 10 screws (A) from the inner left frame.
4064
Parts removal
573

Lexmark M52 Series Specifications

General

Print Technology	Laser
Print Resolution, Black	Up to 1200 x 1200 dpi
Connectivity, Standard	USB 2.0, Ethernet
Network Connectivity	Ethernet
Media Types Supported	Card Stock, Envelopes, Plain Paper, Transparencies
Operating Systems Supported	Windows, macOS, Linux
