Fuser removal
1 For models using a hot roll type of fuser, remove the printhead access cover. See “Printhead removal” on
page 455.
2 Open the rear door.

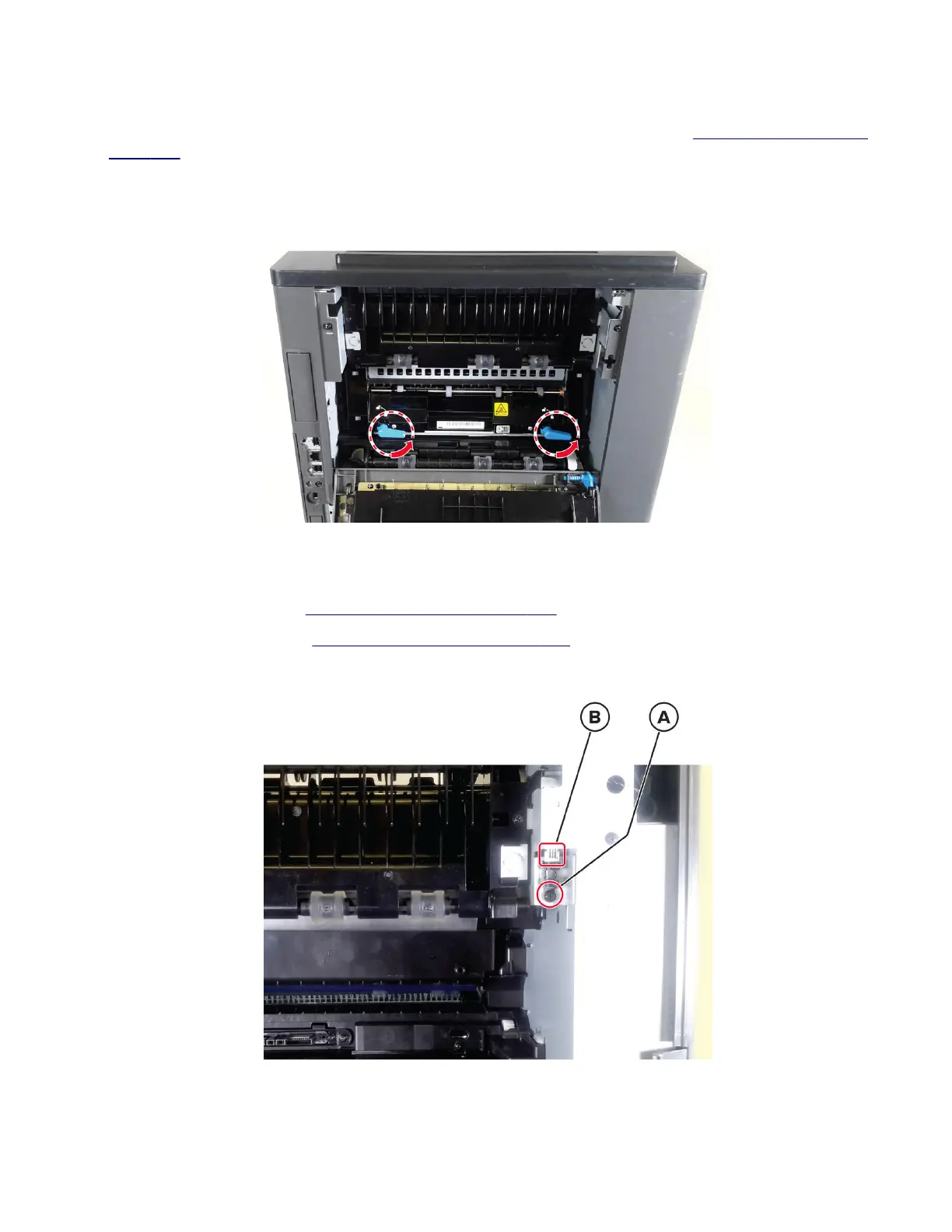

3 Rotate the latches to release, and then remove the fuser.
Sensor (rear door interlock) removal
1 Remove the rear door. See “Rear door removal” on page 449.
2 Remove the rear cover. See “Rear cover removal” on page 450.
3 Remove the screw, and then disconnect the sensor cable (B).
4 Remove the sensor.
