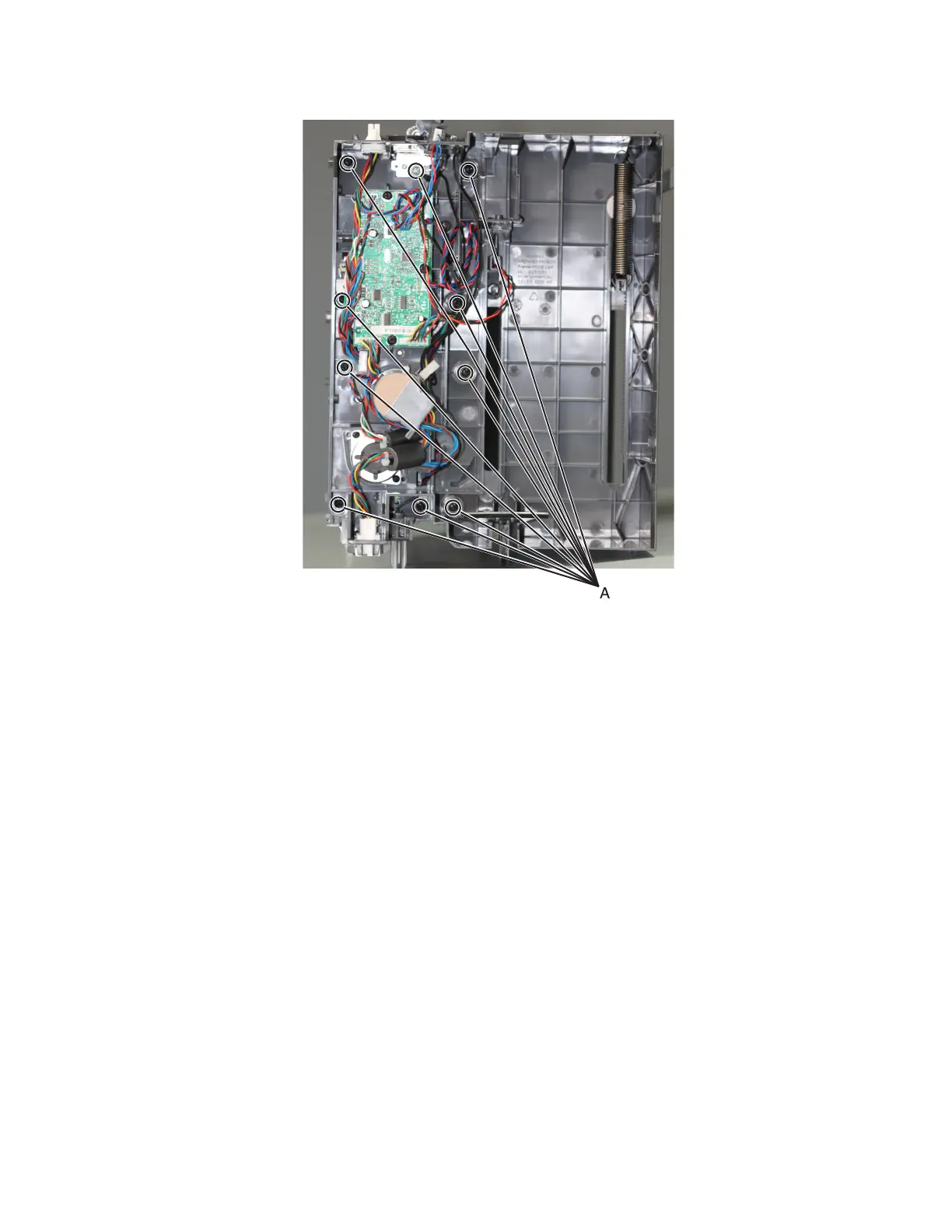

3 Remove the 10 screws (A) from the inner left frame.
4 Slightly pull away the frame to access the gear assembly underneath it.
5 Remove the two screws (B), and then remove the plunger.
4064
Parts removal
565
