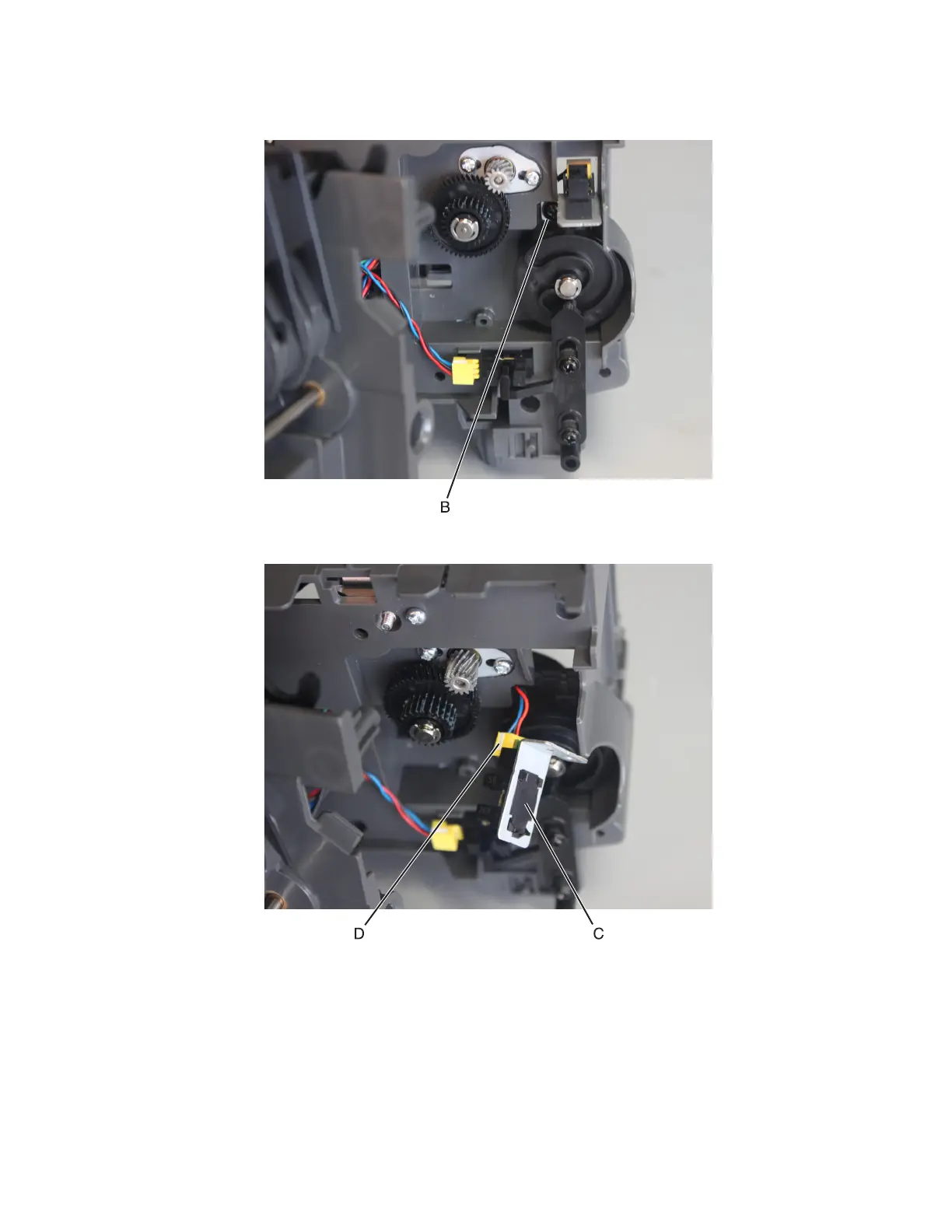

3 Slightly pull the frame to access the parts underneath it. Remove the screw (B), and then release the sensor
bracket.
4 Remove the sensor retainer (C), disconnect the cable (D), and then remove the sensor.
4064
Parts removal
535
