ERROR CODES
Please refer to the Safety Precautions on pages 4-7 for more detail to prevent injury or death regarding the operation and service
troubleshooting of the Multi V product.
WARNING
Error No. 151, continued.

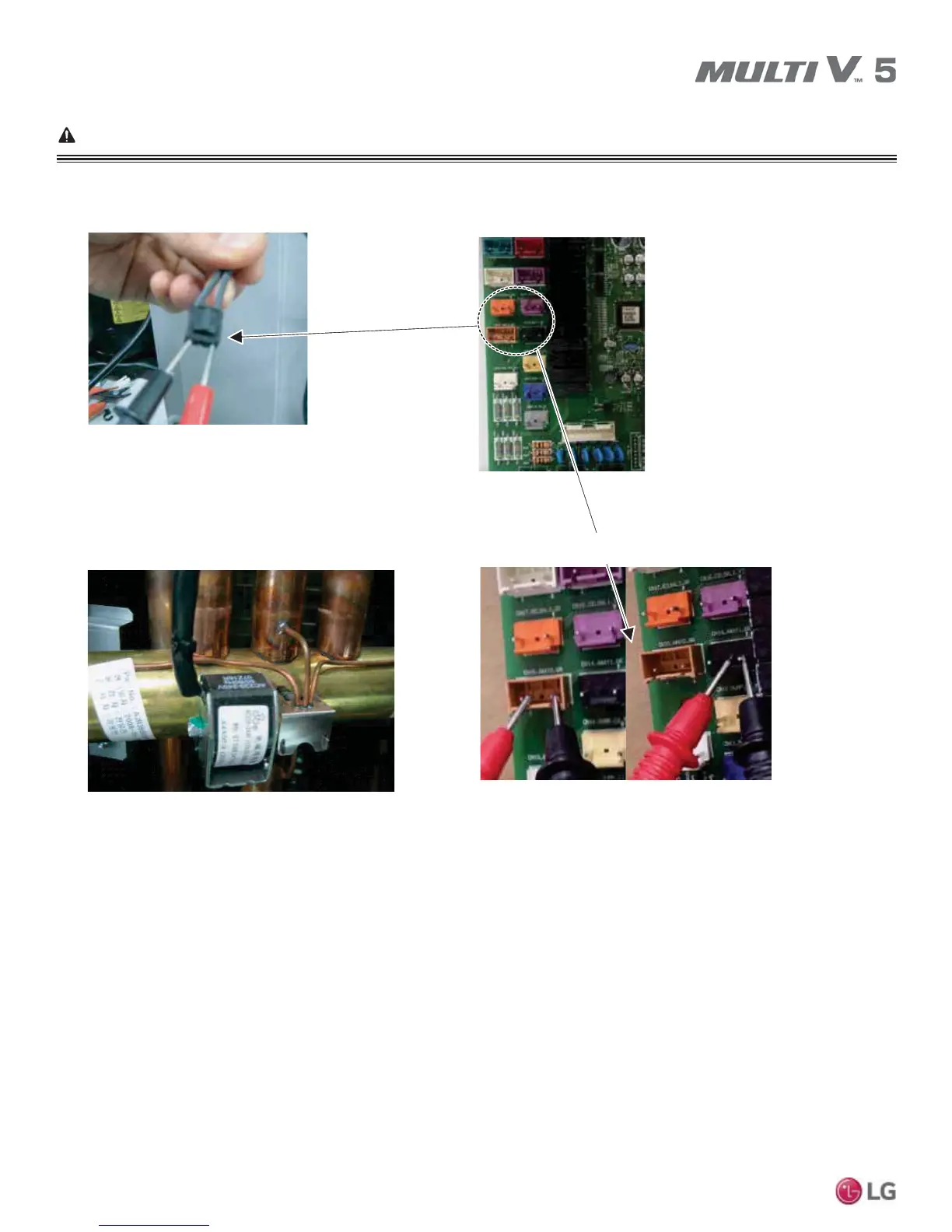

Location of the four-way valve connector on
the Main PCB (marked as “4way, CN09”).
Confirm the four-way valve coil is completely inserted.
Measure the four-way valve resistance.
Check the output voltage of the terminal socket
during heating operation (output should be 230 V AC).
