Error Codes
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

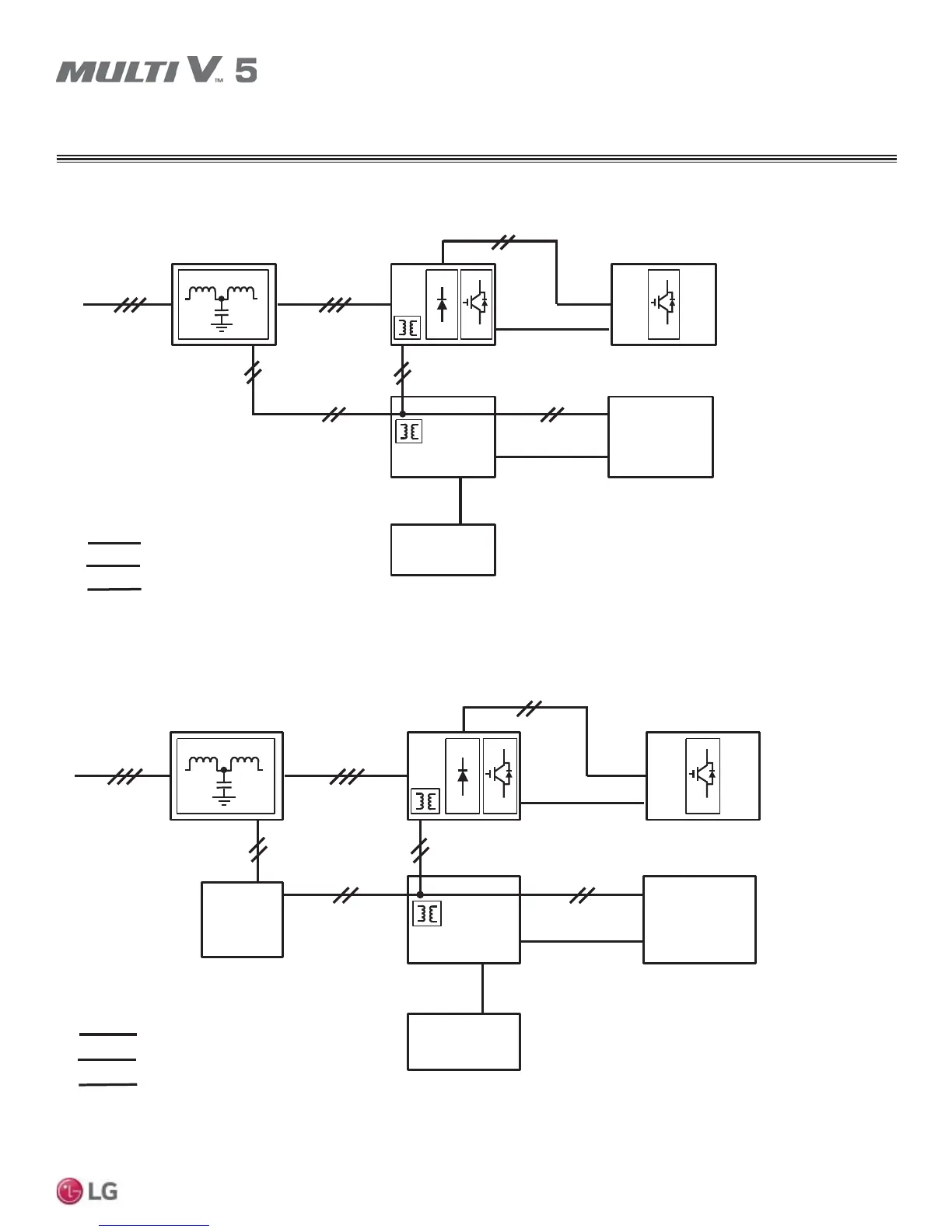

POWER SYSTEM WIRING DIAGRAMS
Figure 89: Power Wiring Diagram (Three phase 220V).
Figure 90: Power Wiring Diagram (Three phase 460V).
Noise Filter Inverter Fan
Main External
3Phase
220V
1Phase
220V
485
Comm. Module
15V, 5V, GND1
12V, 5V, GND2
12V, 5V, GND3
DC 310V
Noise Filter Inverter Fan
Main External
Trans
3Phase
460V
1Phase
460V
1Phase
220V
485
Comm. Module
15V, 5V, GND1
12V, 5V, GND2
12V, 5V, GND3
