PCBs
OUTDOOR UNIT PARTS

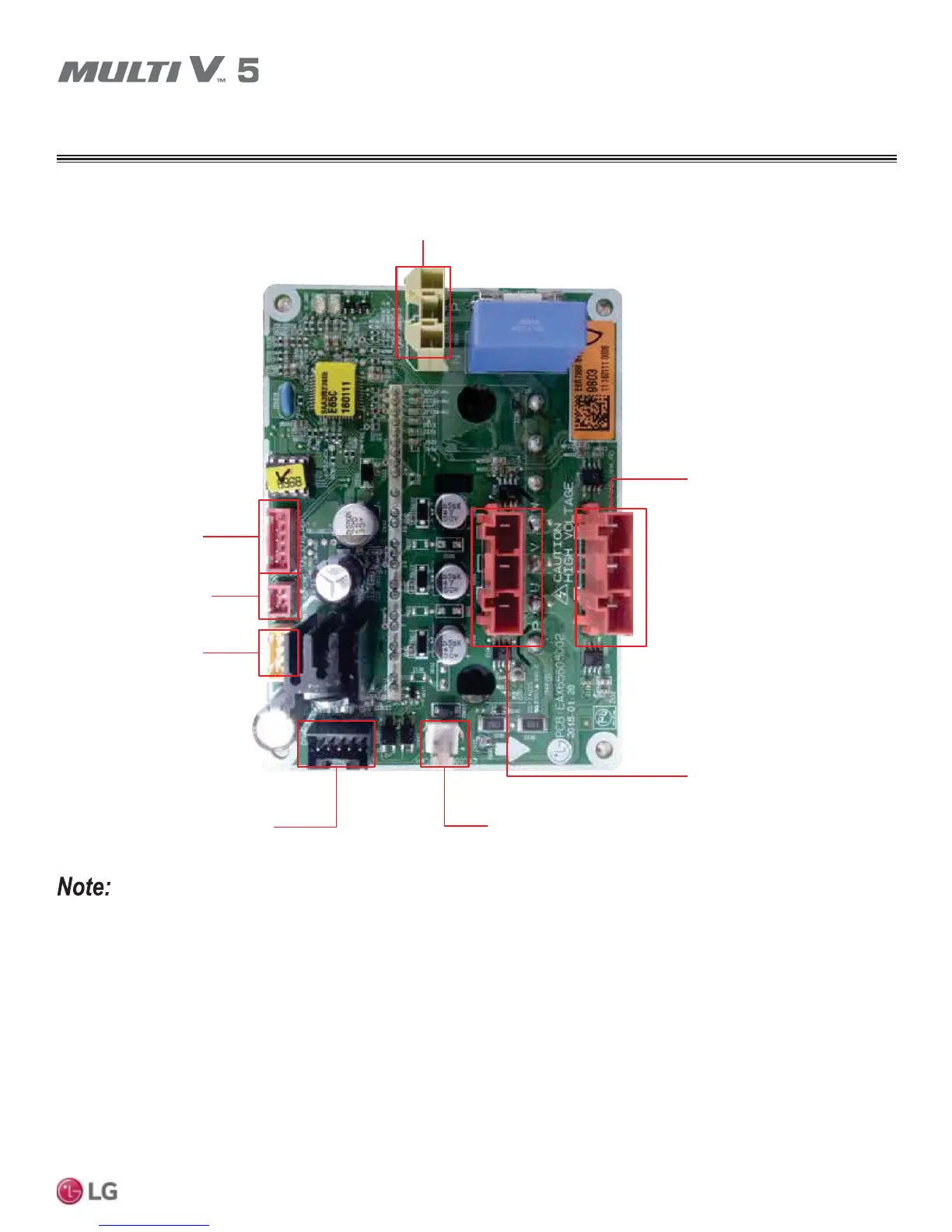

Fan PCB
CN_DCLINK_YL
CN_FAN2_UVW_RD
CN_FAN1_UVW_RD
CN_COMM_OUT_WH
CN_INV_BK
CN_JTAG_RD
CN_FLASH_RD
CN_LGMV_YL
Actual component appearances may differ depending on manufacturing date, model, system type, etc.

LG Multi V5 Specifications

General

Compressor Type	Inverter Scroll
Refrigerant	R410A
Energy Efficiency	High
Heat Recovery	Available
Smart Diagnosis	Yes
Type	VRF (Variable Refrigerant Flow)
Control	Centralized Control
Power Supply	380-415V / 3Ph / 50Hz
