CHECKING INPUT VOLTAGE IN CASE
OF POWER ON
Please refer to the Safety Precautions on pages 4-7 for more detail to prevent injury or death regarding the operation and service
troubleshooting of the Multi V product.
WARNING
&KHFNLQJ,QSXW9ROWDJH7KUHH3KDVH7KUHH:LUH
Terminal
Inverter
PCB
RS T
RST
220V 460V
Inverter
PCB
RS T
RST
Terminal
Red
Black

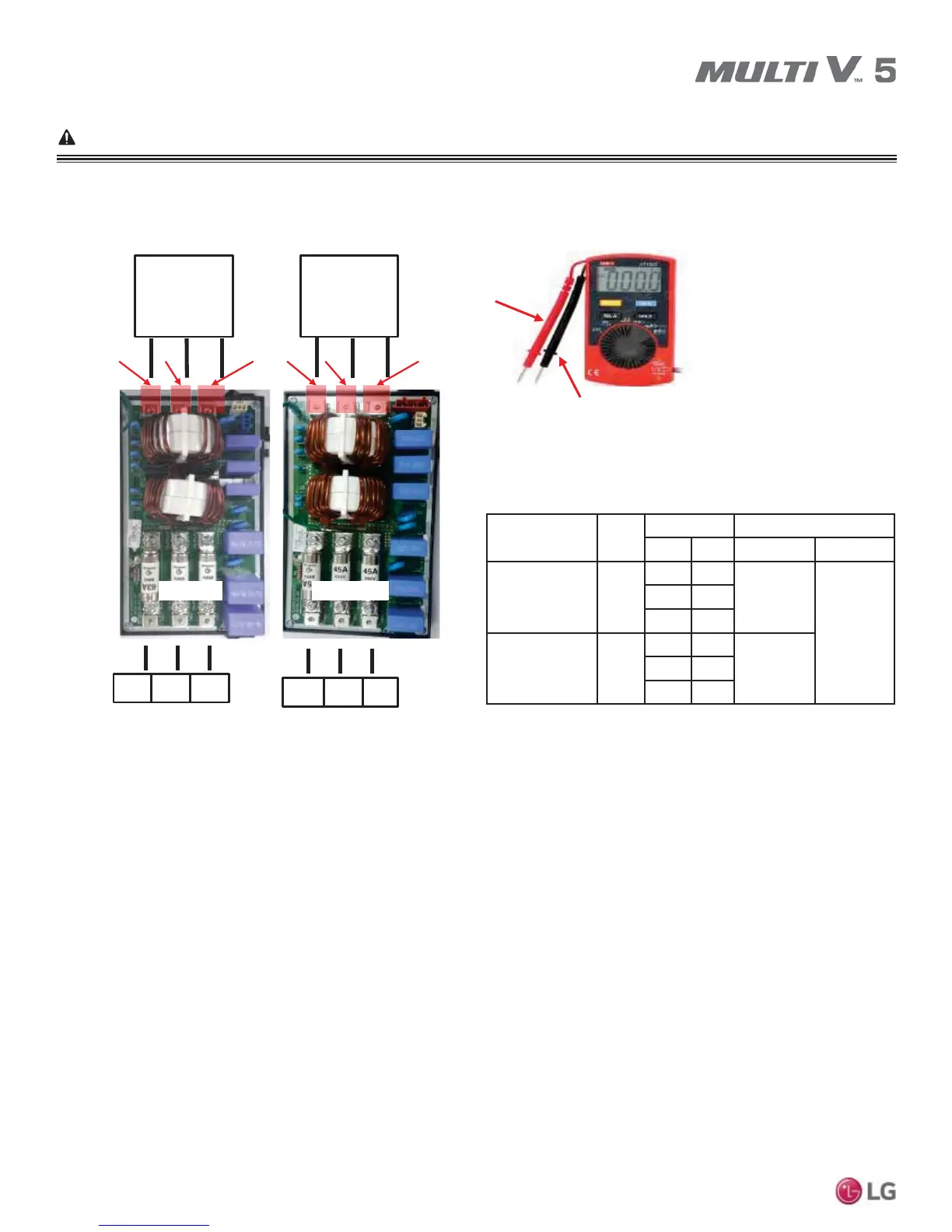

Figure 79: Checking Input Voltage. Figure 80: Multi-Meter.
Check Mode
Multi-Meter Measured Value
Black Red Normal Abnormal
Input Voltage
(3-Phase/3-Wire
220V)
AC
RS
220V±15%
Not
Normal
RT
ST
Input Voltage
(3-Phase /3-Wire
460V)
AC
RS
460V±15% RT
ST
Table 90: Input Voltage Measurements.
