MULTI V 5 Outdoor Unit Service Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
PCBs - Expanded Internal View
OUTDOOR UNIT PARTS
W6631A
268711G
268711E268711C
W49200
268711F
268711A
268711B
249950
W6640
261704
W6200
460V Outdoor
Units Only

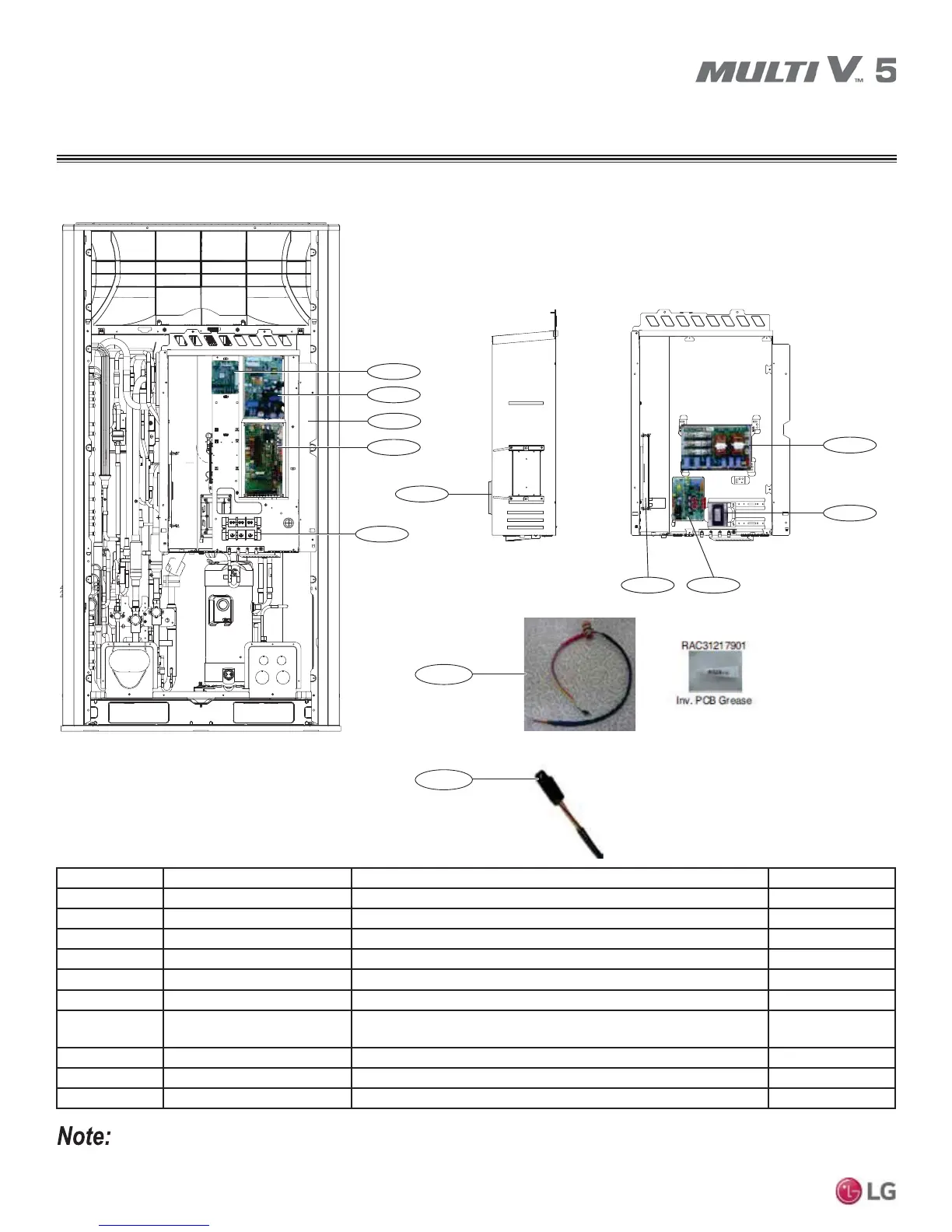

PCBs - Expanded Internal View for 6-Ton (Small Frame) Outdoor Units
Type Part No. Description Color
Multiple Harness W6631A Inverter PCB to Compressor Power Wiring -
Single Harness W6631C Main PCB to External PCB Communication Cable White - White
Single Harness W6631D Fan PCB to Inverter PCB DC Link Yellow - Yellow
Single Harness W6631E Main PCB to External PCB Communication Cable Blue - Blue
Single Harness W6631F Main PCB to External PCB Power Wiring White - White
Single Harness W6631G Main PCB to Inverter PCB Communication Cable White to Blue
Single Harness
W6631H
(208-230V Outdoor Units Only)
Noise Filter PCB to Main PCB Power Wiring Black - Black
Single Harness W6631J Main PCB to Inverter PCB Power Wiring Black - Black
Multiple Harness W6631K Fan PCB to Inverter PCB Communication Cable Black - Red - Yellow
Single Harness W6631L Indoor Unit Communication PCB to Main PCB Communication Cable White - White
Table 95: PCBs - Internal View for 6-Ton (Small Frame) Outdoor Units Harness List.
Actual component appearances may differ depending on manufacturing date, model, system type, etc.
