227
Parts
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

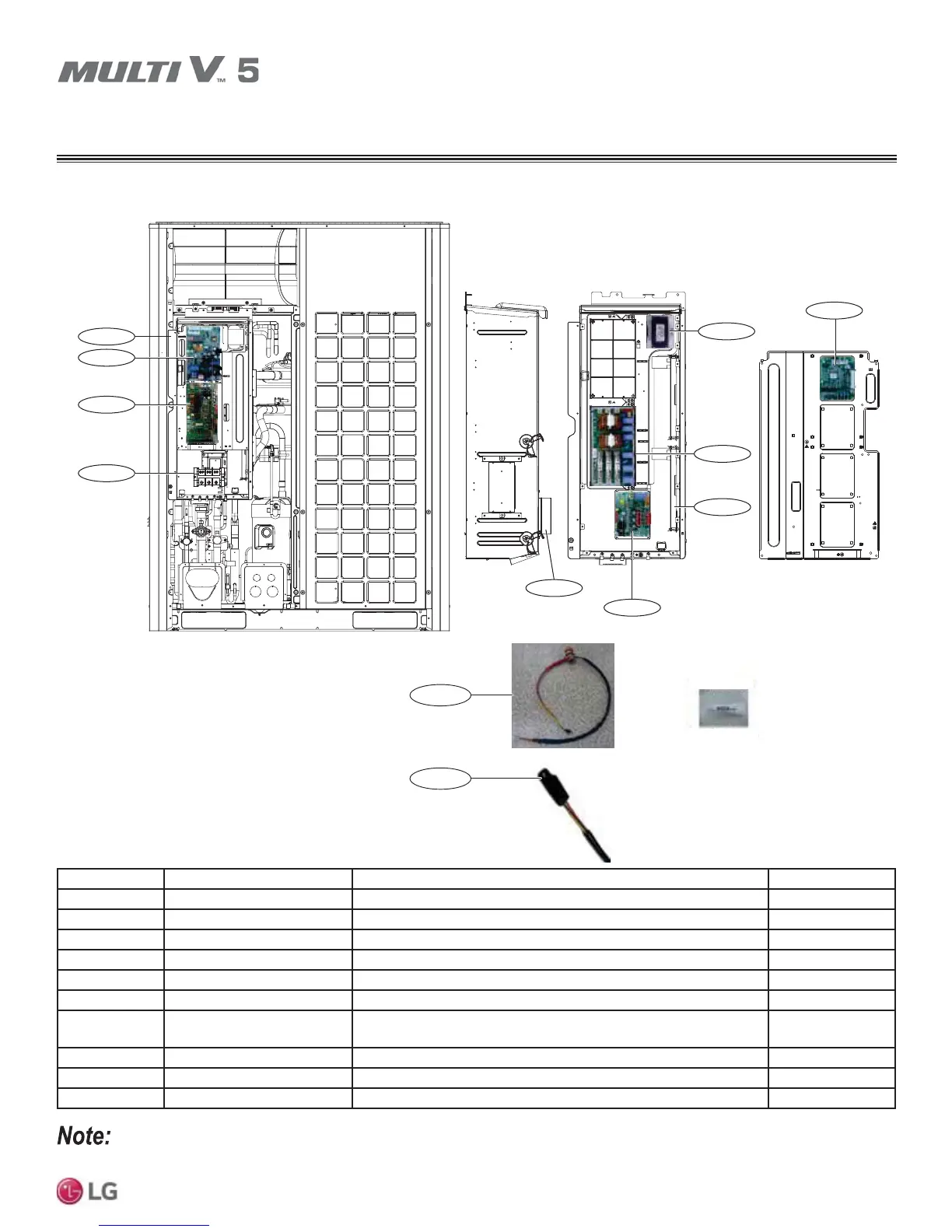

PCBs - Expanded Internal View for 8- and 10-Ton (Large Frame) Outdoor
Units
PCBs - Expanded Internal View
OUTDOOR UNIT PARTS
249950
268711A
268711B
W6640
W6200
W49200
268711C
268711E
268711F
W6631A
268711G
RAC31217901
Inverter PCB Grease
261704
460V Outdoor
Units Only
Type Part No. Description Color
Multiple Harness W6631A Inverter PCB to Compressor Power Wiring -
Single Harness W6631C Main PCB to External PCB Communication Cable White - White
Single Harness W6631D Fan PCB to Inverter PCB DC Link Yellow - Yellow
Single Harness W6631E Main PCB to External PCB Communication Cable Blue - Blue
Single Harness W6631F Main PCB to External PCB Power Wiring White - White
Single Harness W6631G Main PCB to Inverter PCB Communication Cable White to Blue
Single Harness
W6631H
(208-230V Outdoor Units Only)
Noise Filter PCB to Main PCB Power Wiring Black - Black
Single Harness W6631J Main PCB to Inverter PCB Power Wiring Black - Black
Multiple Harness W6631K Fan PCB to Inverter PCB Communication Cable Black - Red - Yellow
Single Harness W6631L Indoor Unit Communication PCB to Main PCB Communication Cable White - White
Table 96: PCBs - Internal View for 8- and 10-Ton (Large Frame) Outdoor Units Harness List.
Actual component appearances may differ depending on manufacturing date, model, system type, etc.
