Liebert NX User Manual

Options
108 Liebert
®
NX
™

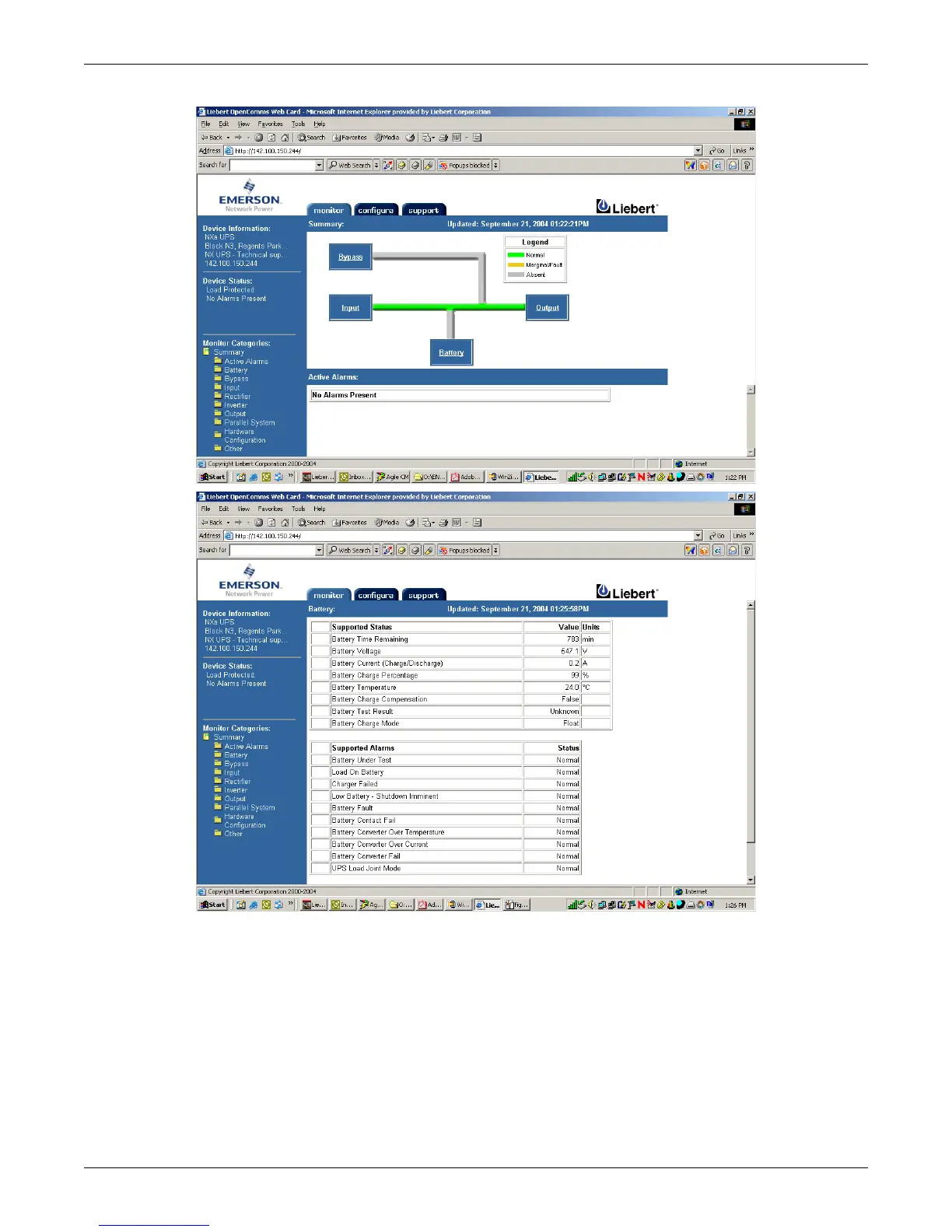

Figure 69 Liebert IntelliSlot
™
Web card display
Relay Card
The relay card provides voltage-free contact closures for remote monitoring of alarm conditions.
Delivering On Battery, On Bypass, Low Battery, Summary Alarm, UPS Fault and On UPS
signals, the easy-to-install card integrates with AS/400 computers (additional cable required) and
other relay contact monitoring systems.
The relay card is rated for 24 VAC/DC at 1A and supported in any of the three Liebert IntelliSlot bays
on the Liebert NX
™
.Refer to the Liebert Intellislot Relay Card user manual, SL-23211, for pin and
jumper configuration. The manual is available at Liebert’s Web site: www.liebert.com

Liebert NX Specifications

General

Frequency	50/60 Hz
Topology	Double Conversion/Online
Input Voltage	208, 220, 240 VAC
Output Voltage	208, 220, 240 VAC
Battery Type	VRLA
Operating Temperature	0 to 40°C (32 to 104°F)
Humidity Range	0 to 95% (non-condensing)
