NOTES
1. All dimensions are in inches (mm).
2. 18" [457mm] minimum clearance above unit required for air exhaust.
3. Keep cabinets within 15 degrees of vertical.
4. Output conduit plates
Panelboard option:
Top output plates have 84 knockouts for 1/2" conduit per plate.
Bottom output plates have 84 plugs for 1/2" conduit per plate.
Output circuit breaker option:
Top and bottom output plates are removable blank plates. Remove,
punch to suit conduit size and reinstall.
5. Control wiring and power wiring must be run in separate conduits.
6. All wiring is to be in accordance with national and local electrical codes.
7. Depth dimensions include front and rear doors.
8. Width dimensions without side panels. Add 2.2 [56mm] when adding
both side panels.
9. Clearance of 36" [914mm] minimum is recommended at front and rear for
service access.
AIR INLET
FOR COOLING
R 25.3" (643mm) x
180° Door Swing°
R 25.3" (643mm) x
180° Door Swing°
R 25.3" (643mm) x
180° Door Swing°
R 25.3" (643mm) x
180° Door Swing°
Output Conduit Plates
11.9" x 15.7" (302 x 400mm)
See Note 4
47" (1194mm)
See Note 8
39.5" (1003mm)
38.6" (980mm)
79.6"
(2021mm)
3.8"
(97mm)
2.2"
(56mm)
1.9"
(48mm)
6.6" (168mm)
26.7"
(677mm)
39.2" (996mm)
Input Conduit Plates
5" x 8.5" (127 x 216mm)
Input Conduit Plates
5" x 8.5" (127 x 216mm)
Control Wiring Holes
2-1/2" (64mm)
Including Hinge
and Bezel
Projection

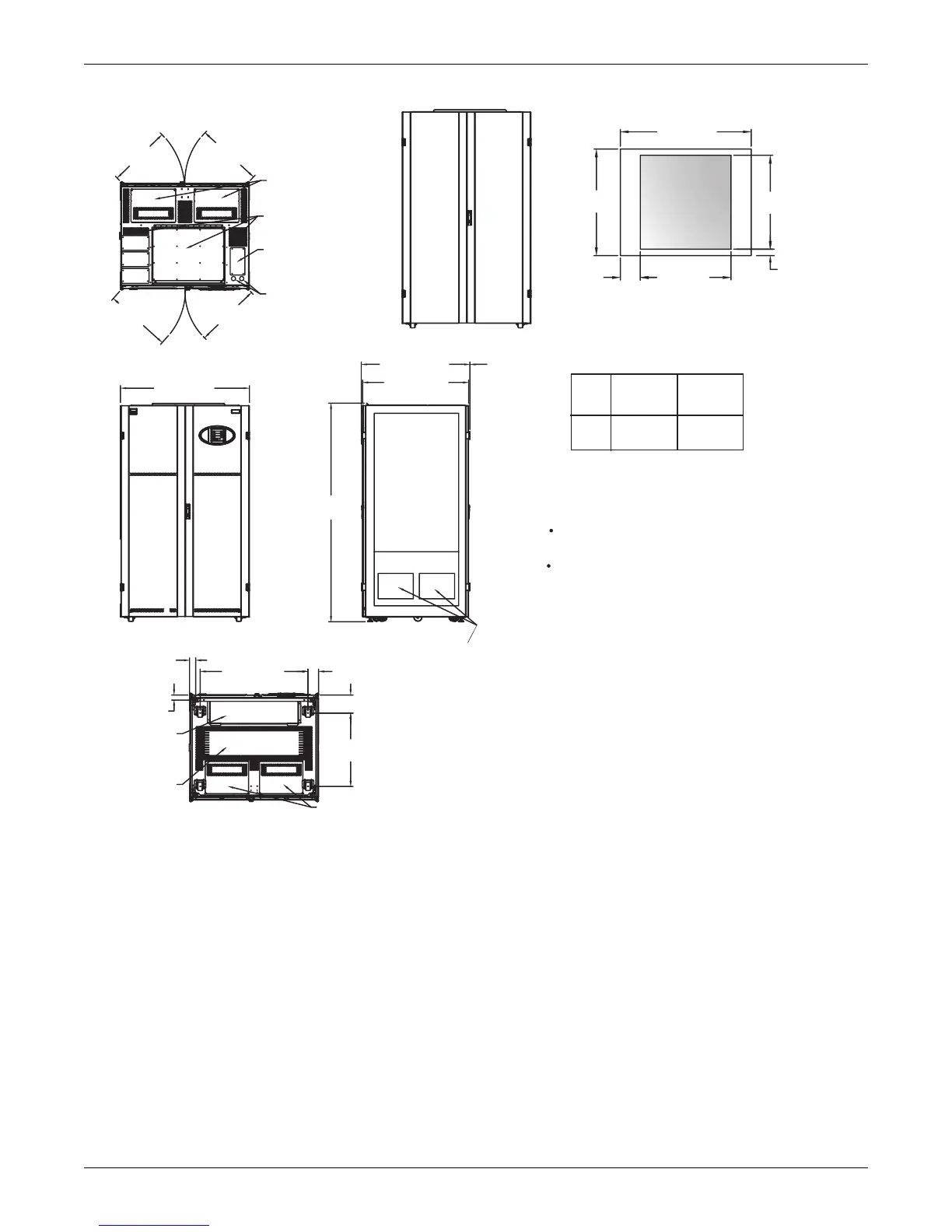

TOP VIEW
RIGHT
SIDE
VIEW
REAR VIEW
FRONT VIEW
BOTTOM VIEW
Input Conduit Plates
32" x 8" (812 x 204mm)
Output Conduit Plates
15.7" x 11.9" (400 x 302mm)
See Note 4
Left and Right Side
Output Cable Access
Area; (2) @ 2"x10"
(210 x 254mm)
47" (1194mm)
36.4"
(925mm)
33.8"
(859mm)
FRONT
Base Footprint Shaded Area
Indicates Floor Cutout Dimensions
For Cooling Air and Cable
Entry and Exit
6" (152mm)
1.3"
(33mm)
Unit
kVA
200
Weight
lb. (kg)
2770
(1259)
Full Load
Heat Output
BTU/Hr (kw)
1390
(4.08)
FPC1360
Rev. 1
