Liebert NX - Figure 38 Outline Drawing, 49 Battery Power Pack System, Single Cabinet

Installation Drawings
64 Liebert
®
NX
™

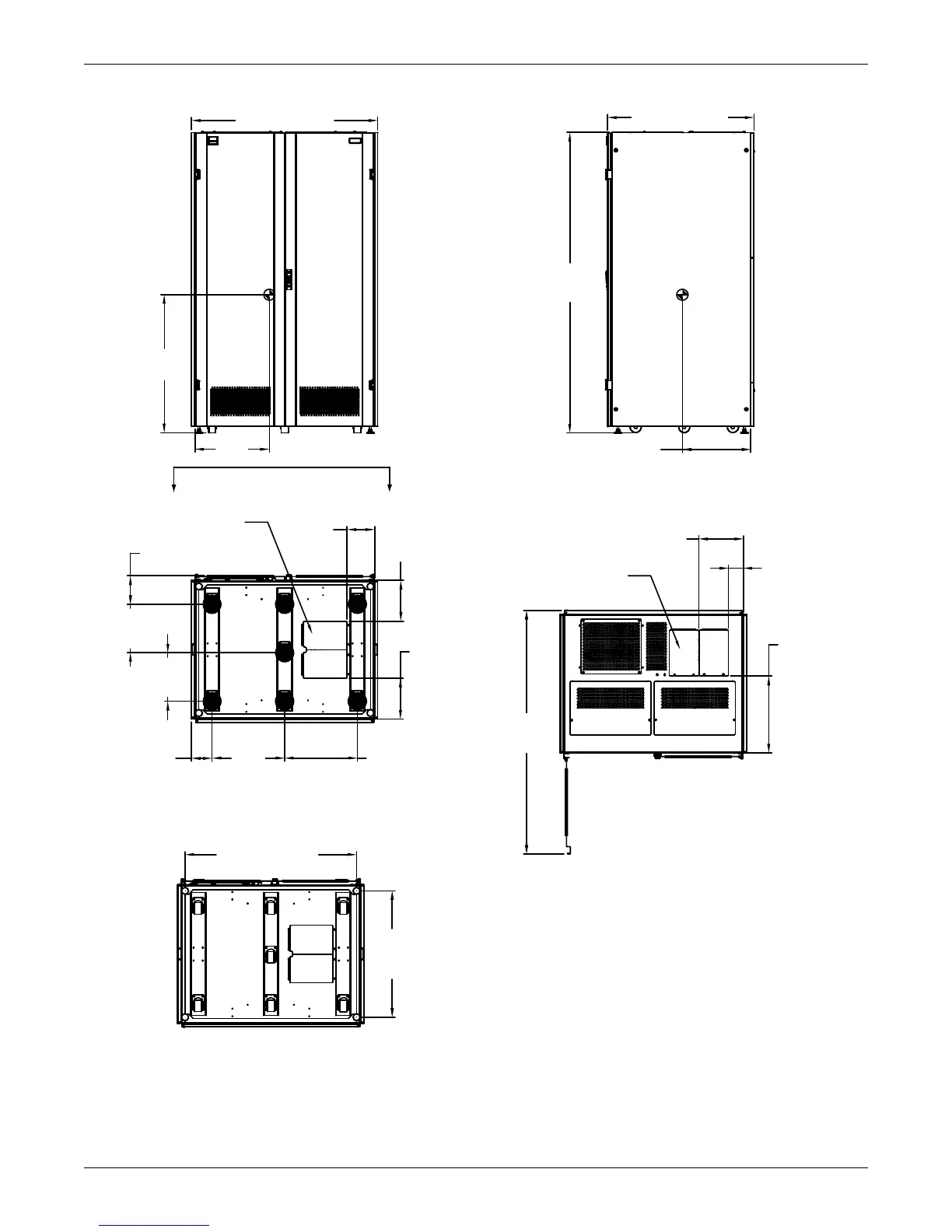

Figure 38 Outline drawing, 49" battery power pack system, single cabinet
FRONTFRONT
RIGHT SIDE
SECTION A-A
(Plan View)
LEVELER SPACING
TOP VIEW
(Door Open)
Rear
323mm
(12.7") typ.
323mm
(12.7") typ.
138mm
(5.4") typ.
188mm
(7.4")typ.
974mm (38.3")
1240mm (48.8)
1997mm
(78.6")
482mm
(19.0")
typ.
482mm
(19.0") typ.
1140mm (44.9")
typ.
841mm
(33.1")
typ.
Cable Entry Panel
190x290mm (7.2x11.4")
typ. 2
Cable Entry Panel
190x290mm (7.2x11.4")
typ. 2
183mm (7.2)
Outside
Frame
271mm
(10.7")
Rear Frame
271mm
(10.7")
Front Frame
98mm (3.9")
Outside Frame
509mm (20")
FrontFrame
296mm (11.7")
Outside Frame
1616mm
(63.6")
868.7mm
(34.2")
485.3mm
(19.1")
481.1mm (18.94")
AA
