Liebert NX User Manual

Installation Drawings
76 Liebert
®
NX
™

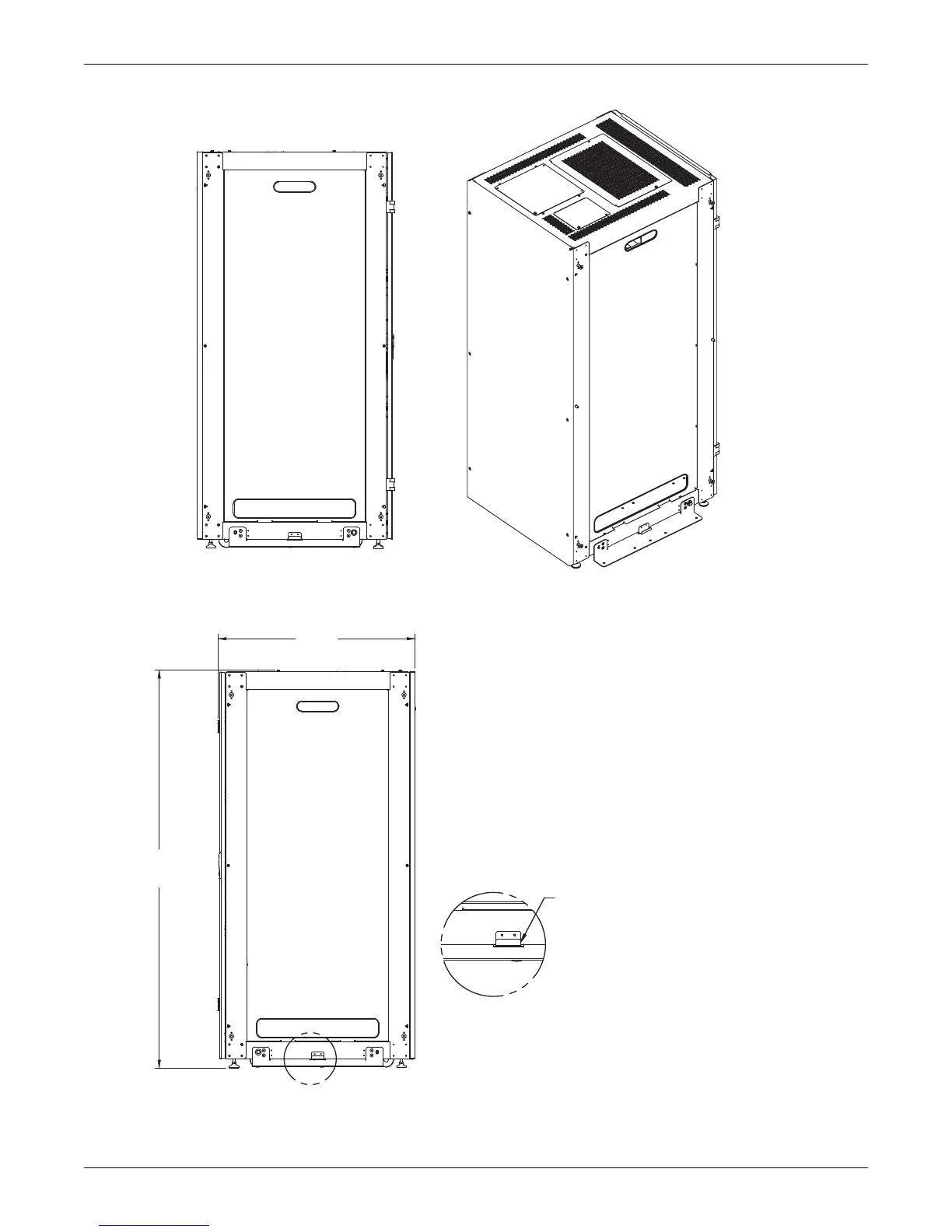

Figure 50 Line-up detail, bolt together description, 40-120 kVA Liebert NX
Remove
when cabinets
are to be bolted
together
DETAIL A
A
U3819301
NOTES:
1. All dimensions are in millimeters (inches)
2. All cables should be routed before bolting
cabinets together.
3. The cables between the auxillary cabinets
and the UPS cabinet must be supplied by customer.
4. All hardware supplied with ancillary cabinets
for bolting cabinet to UPS.
5. Use M6 hardware provided. Assemble as
shown in detail drawing.
6. All external wiring is to be in accordance
with national and local codes.
2000
(78.7 in)
965
(38 in.)
LEFT SIDE
Without Exterior
Panels
RIGHT SIDE
Without Exterior
Panels
LEFT SIDE
Isometric View

Liebert NX Specifications

General

Frequency	50/60 Hz
Topology	Double Conversion/Online
Input Voltage	208, 220, 240 VAC
Output Voltage	208, 220, 240 VAC
Battery Type	VRLA
Operating Temperature	0 to 40°C (32 to 104°F)
Humidity Range	0 to 95% (non-condensing)
