Liebert NX User Manual

Installation Drawings
60 Liebert
®
NX
™

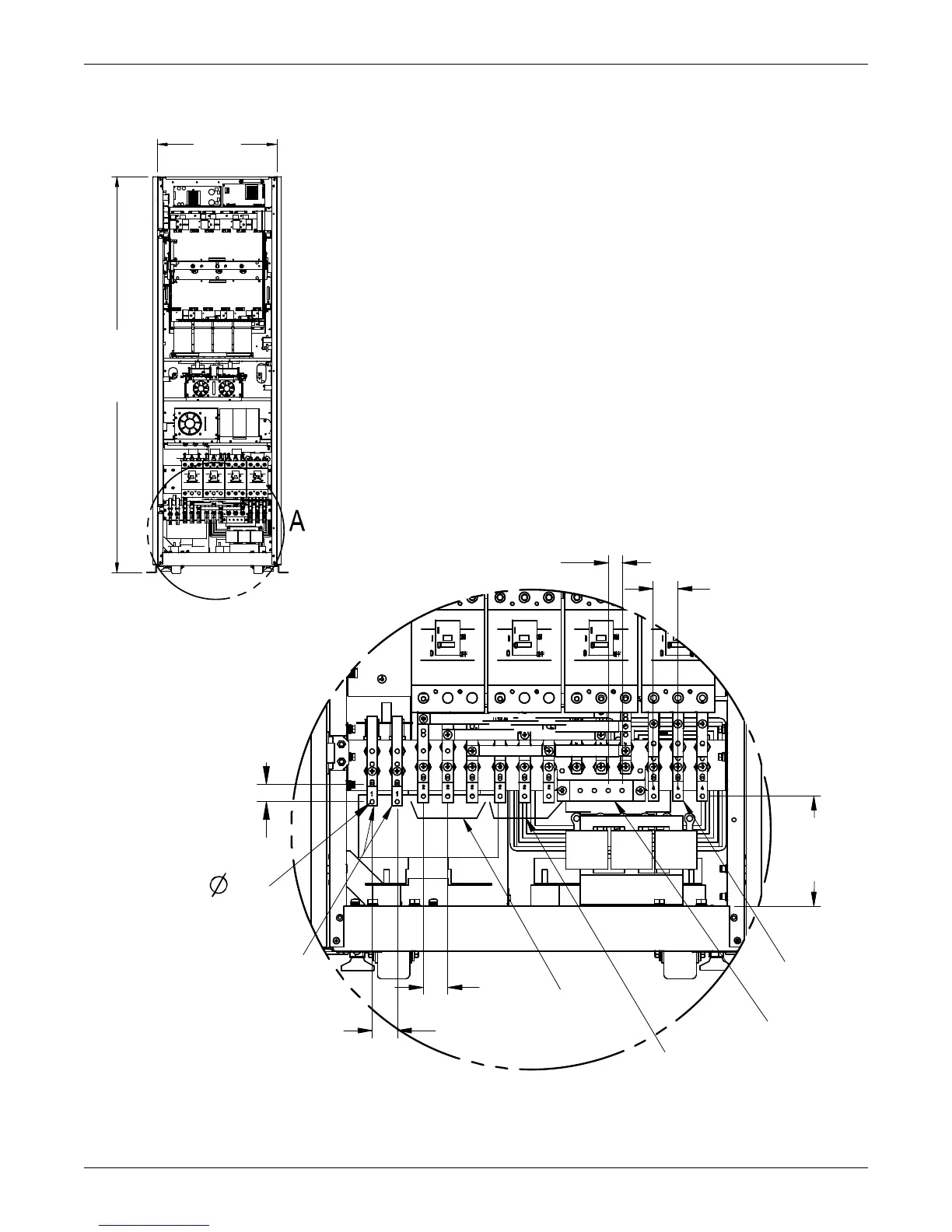

Figure 34 Liebert NX 40-120kVA cable connections
NOTES
1. All dimensions are millimeters (in.).
2. Top and bottom cable entry available through
removable access plates. Remove, punch to
accommodate conduit size and replace.
3. Control wiring and power wiring must be run in
separate conduit. Output and input cables must
be run in separate conduit.
4. Aluminum and copper-clad aluminum cables are
not recommended.
5. All wiring is to be in accordance with national
and local electrical codes.
20 (.79")
35
(1.38")
158.1
(6.22")
35
(1.38")
36 (1.42")
Output
GND
DC
Bypass
Main
25.4
(1")
6
(.24")
CB1 CB2 CB3 CB5
DETAIL A
600
(23.6")
2000
(78.7")
FRONT VIEW
(with door removed)

Liebert NX Specifications

General

Frequency	50/60 Hz
Topology	Double Conversion/Online
Input Voltage	208, 220, 240 VAC
Output Voltage	208, 220, 240 VAC
Battery Type	VRLA
Operating Temperature	0 to 40°C (32 to 104°F)
Humidity Range	0 to 95% (non-condensing)
