Installation Drawings
Liebert
®
NX
™
53

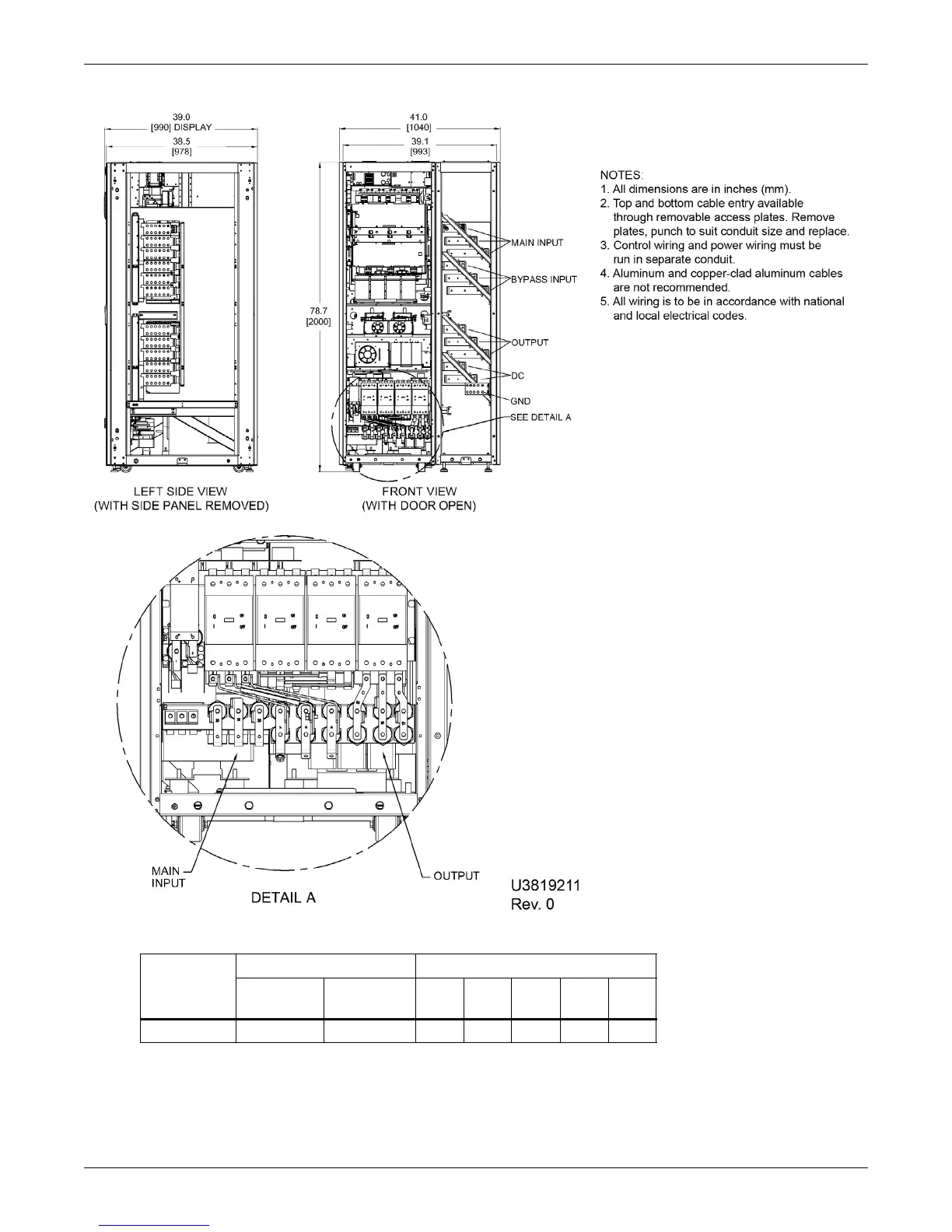

Figure 27 Liebert NX 80-120kVA dimensions—front and left side
Table 25 UPS terminal specifications
Unit Rating
Utility Configurations Breaker Size, Amps
Bolt Shaft
Size
Torque
lb-in (N-m) CB1 CB2 CB3 CB4 CB5
80-120 M8 88 (10) 225 225 225 225 225
Source: U3819611, Rev. 0
