Liebert NX User Manual

Installation Drawings
Liebert
®
NX
™
63

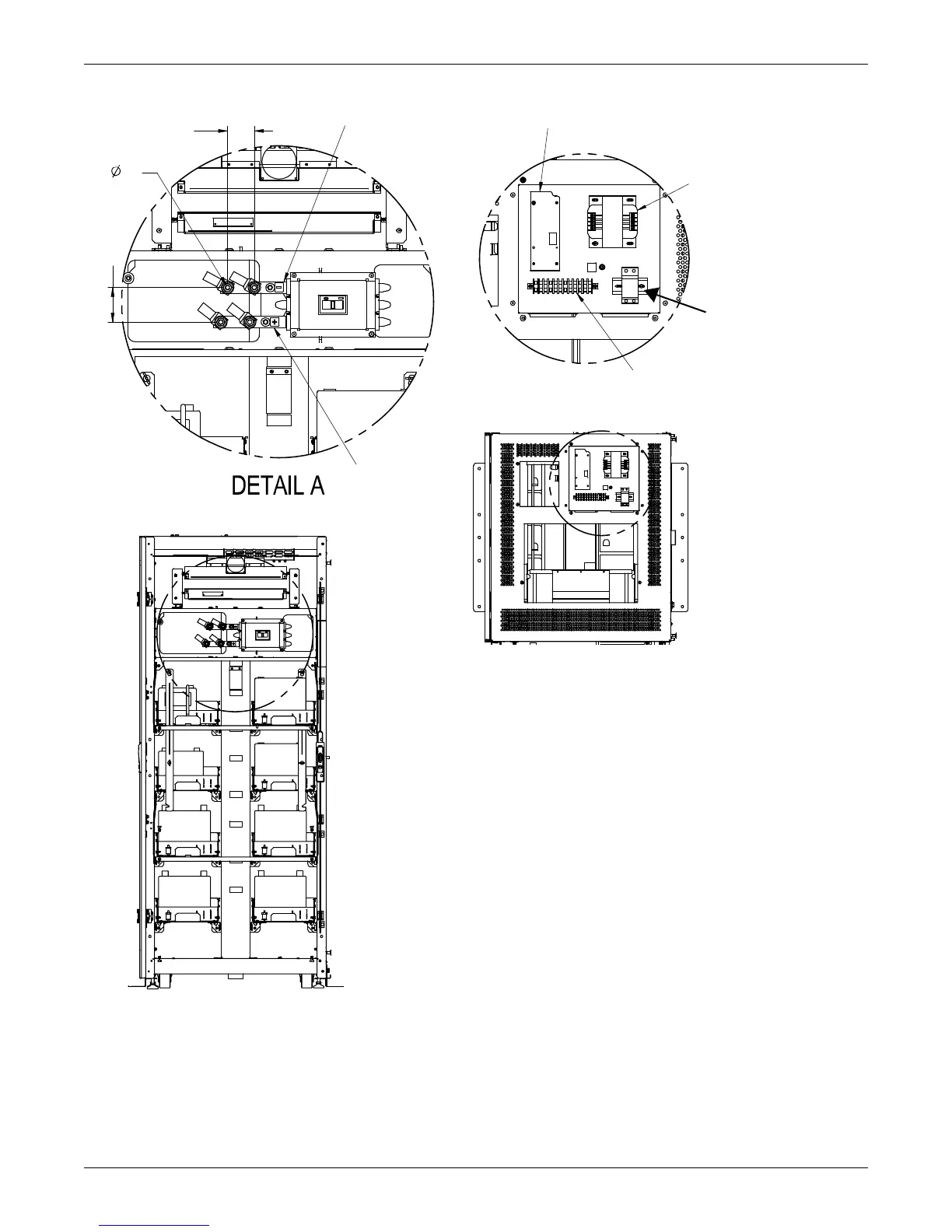

Figure 37 Terminal details, 33" battery power pack system, single cabinet Liebert NX
NOTES:
1. All dimensions are in millimeters (inches).
2. All cables should be routed before bolting cabinets togethe r.
3. The cables between the battery cabinet and the UPS cabinet
must be supplied by others.
4. All hardware supplied with battery cabinet for bolting cabinet
to UPS use M6 hardware provided; assemble as shown in
detail drawings.
5. All external wiring is to be in accordance with national
and local electrical codes.
Front
(Without Doors and
Protective Plates)
Top
(Without Protective Plates)
Transformer
For Alber Monitoring
System (Optional)
 Fused Input
for Alber Monitoring
System (Optional)
Terminal Block
Aux. Contacts
DETAIL B
PCB
59
(2.32)
(-) Negative
9
(0.30)
76.2
(3)
B
A
(+) Positive
U3819205

Liebert NX Specifications

General

Frequency	50/60 Hz
Topology	Double Conversion/Online
Input Voltage	208, 220, 240 VAC
Output Voltage	208, 220, 240 VAC
Battery Type	VRLA
Operating Temperature	0 to 40°C (32 to 104°F)
Humidity Range	0 to 95% (non-condensing)
