Liebert NX User Manual

Installation Drawings
56 Liebert
®
NX
™

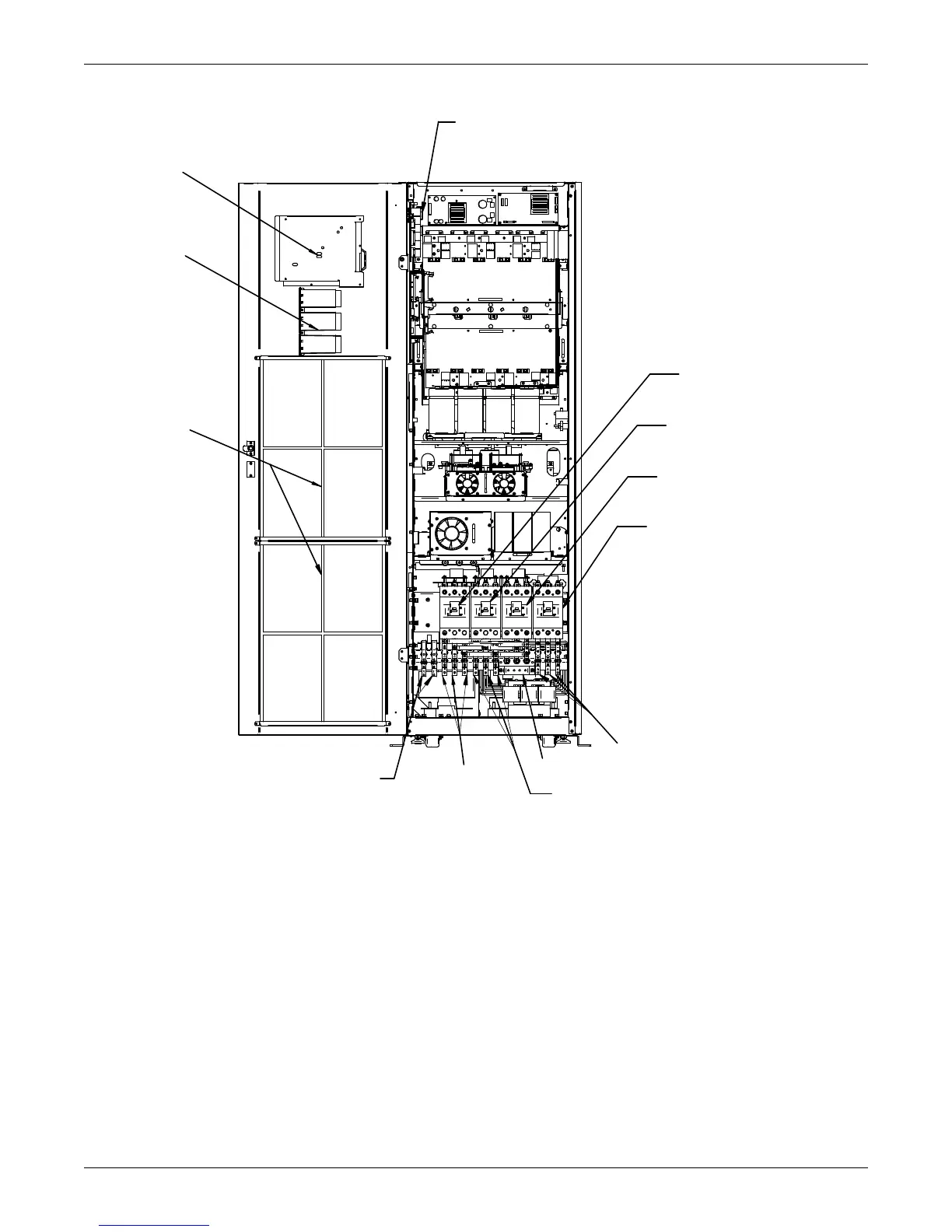

Figure 30 Liebert NX 40-120kVA main components—typical unit
Monitor
Board
Intellislot
Communication
Ports
Replaceable
Air Filters
FRONT VIEW
(door open)
DC Bus
Main Input
Bus
Bypass
Input Bus
(Dual Input)
Output Bus
GND
Output Breaker
(CB5)
Maintenance
Bypass Breaker (CB3)
Bypass Breaker
(CB2)
Input Breaker
(CB1)
Parallel Board
CB1 CB2 CB3 CB5

Liebert NX Specifications

General

Frequency	50/60 Hz
Topology	Double Conversion/Online
Input Voltage	208, 220, 240 VAC
Output Voltage	208, 220, 240 VAC
Battery Type	VRLA
Operating Temperature	0 to 40°C (32 to 104°F)
Humidity Range	0 to 95% (non-condensing)
