Installation Drawings
Liebert
®
NX
™
61

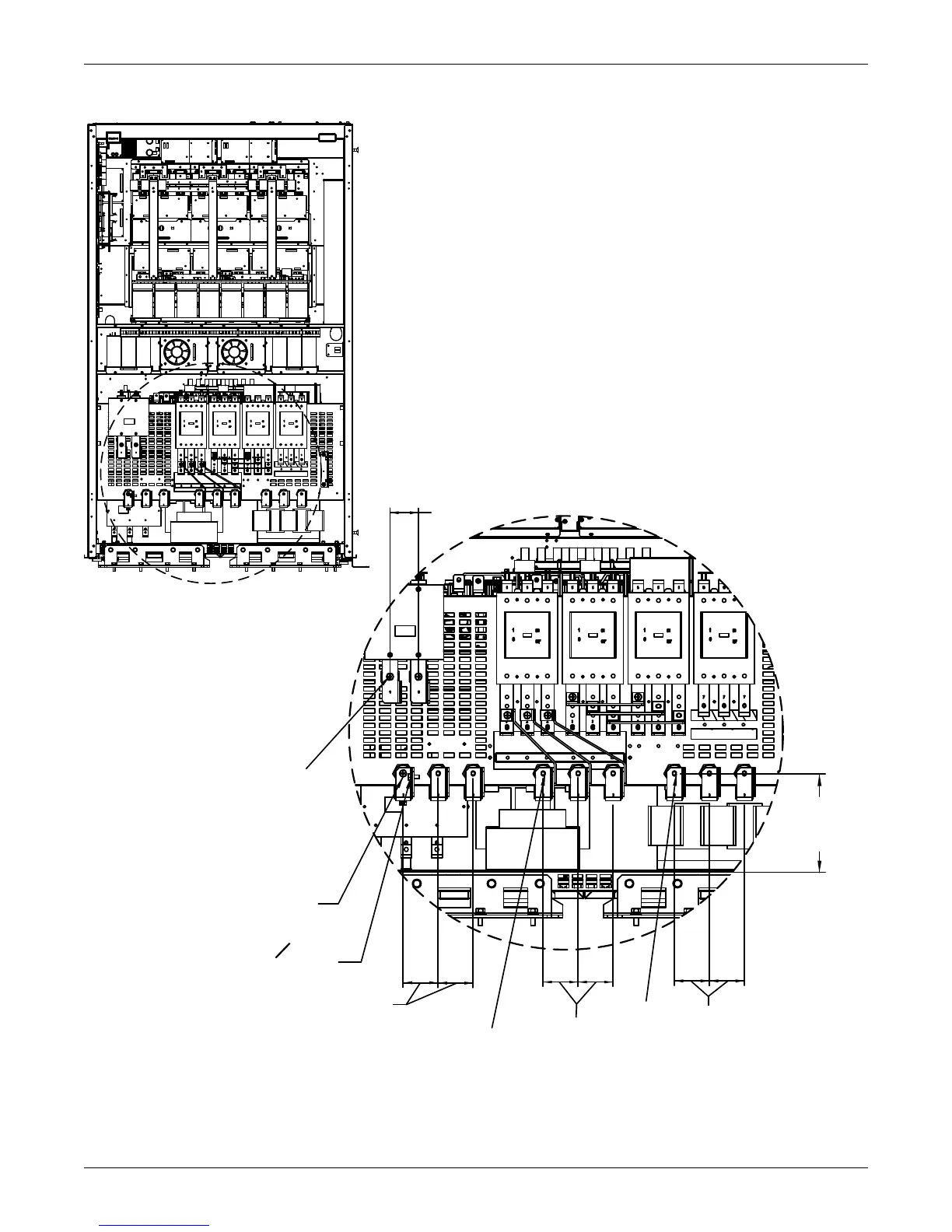

Figure 35 Liebert NX 160-200kVA cable connections
DC Bus
Main Input
Bus
Bypass
Input Bus
(Dual Input)
Output
Bus
O 10mm
(0.394")
DETAIL A
80mm
(3.15")
80mm
(3.15")
80mm
(3.15")
65mm
(2.56")
224mm
(8.83")
FRONT VIEW
(door removed)
A
