liftup FlexStep V2 - Component Specifications and Approvals; Internal Receiver and Remote Specs

INSTALLATION & SERVICE MANUAL – FLEXSTEP V2– UK VERSION
1.7
Liftup A/S Hagensvej 21| DK-9530 Støvring | Denmark | T: +45 96 86 30 20 | M: support@liftup.dk | www.liftup.dk | CVR DK-1015 3964
13

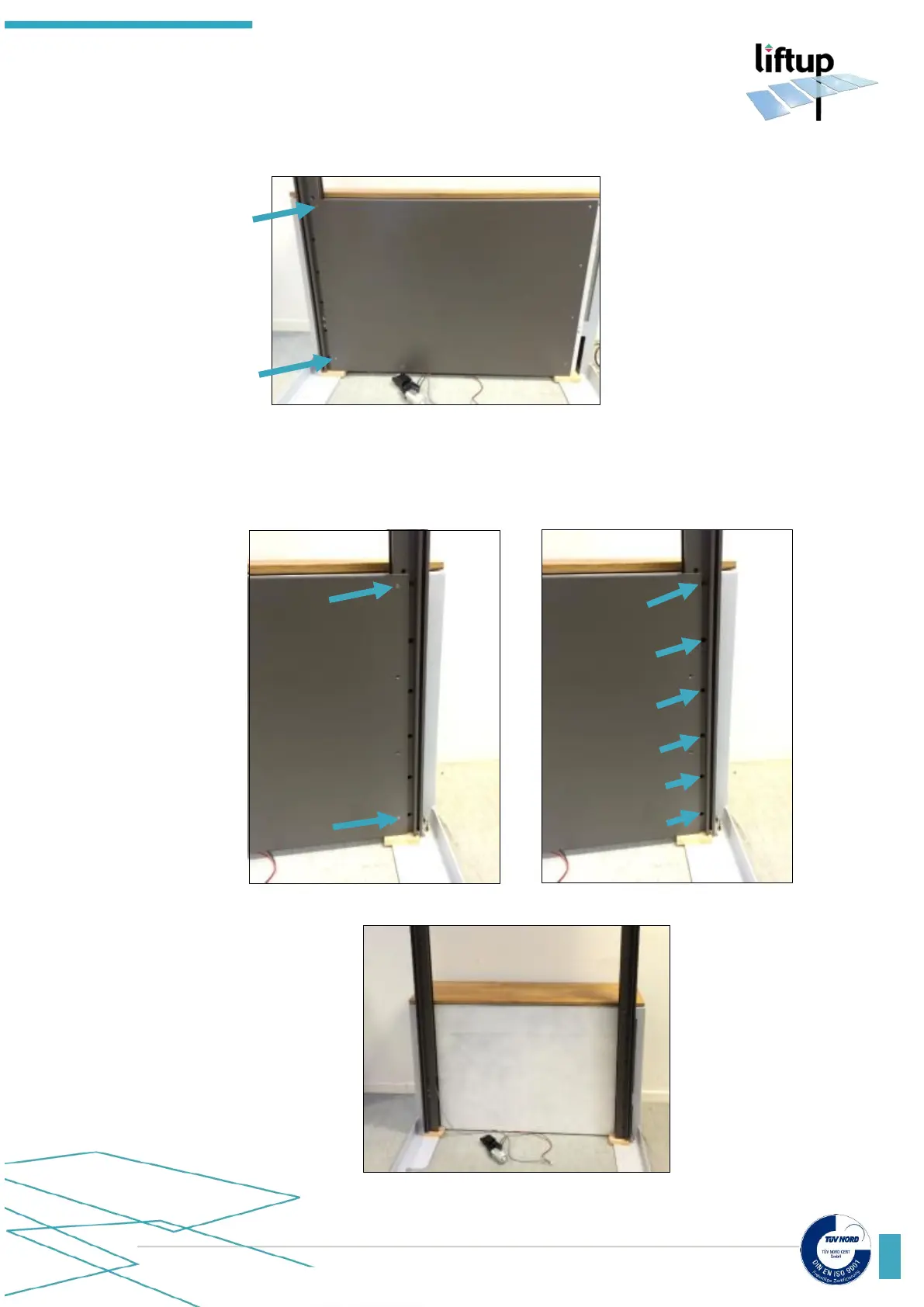

5.
Mount cover plate to left hand side wall profile, using two M4 screws – top and
bottom.
6.
Mount cover plate to right hand side wall profile, using two M4 screws – top and
bottom. Use e.g. shims at the bottom to support the wall profile as it is heavy.
(approx 2 cm). Fix the second wall profile to the wall through the mounting
holes. Use relevant screws and plugs for the actual wall type.
7.
Remove the cover plate.
