4 Call stations
The FlexStep V2 can be delivered with different types of call stations to be mounted on upper
level and lower level (recommended). Find different solutions on www.liftup.dk. How to
connect a standard Liftup call station is described below.
4.1 Standard call station wired

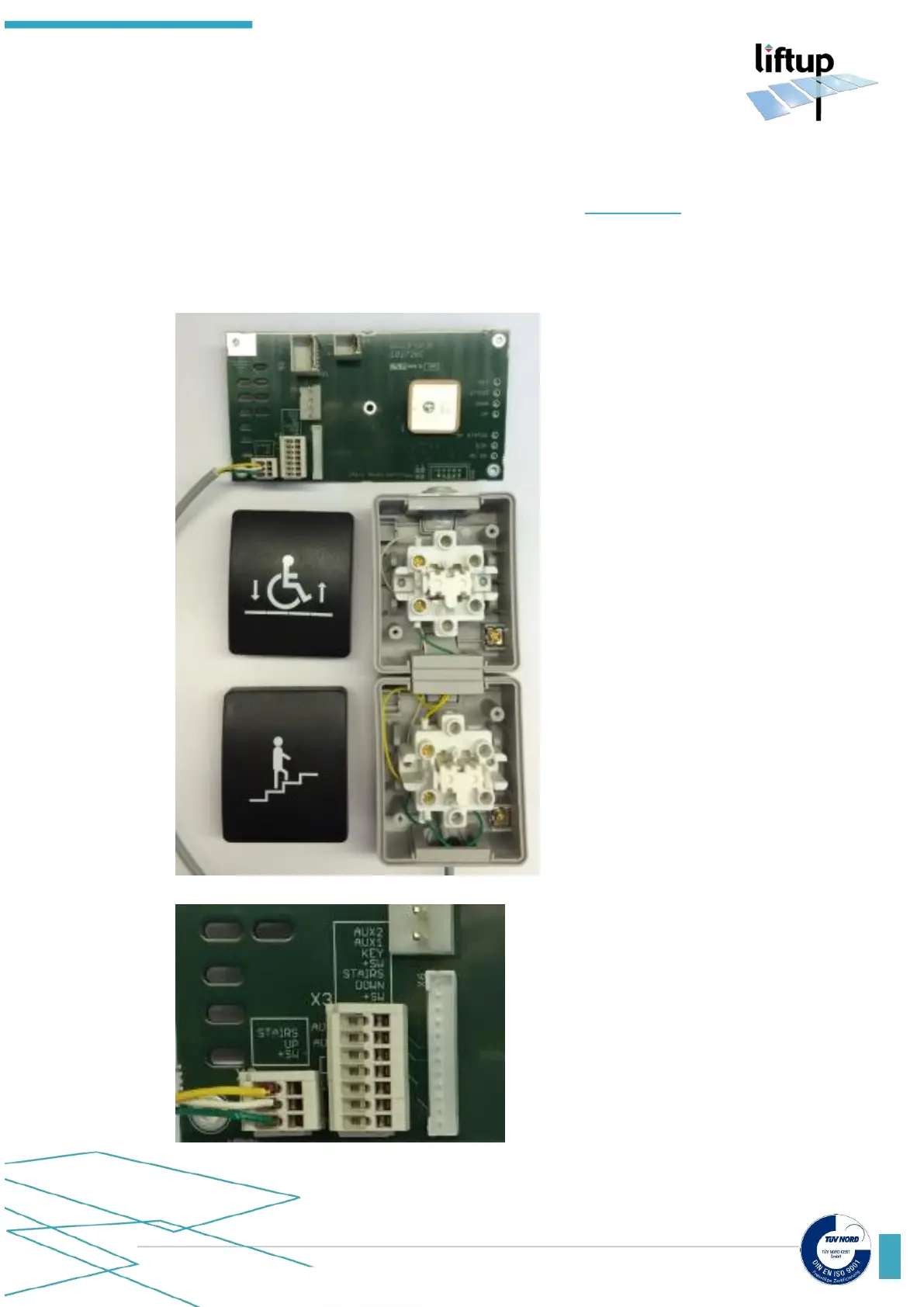

2 ways connections:
Lower Call station (X3):
Green / Common
White / Down
Yellow / Staircase
Upper Call station (X2):
Green / Common
White / Up
Yellow / Staircase
