3 Control Unit
The control unit consists of the power supply unit (103080), the PCB for connection box
(102726), both factory mounted on the bottom rail and two control boards (103252)
mounted inside the two control boxes, placed on each side of the FlexStep V2 .

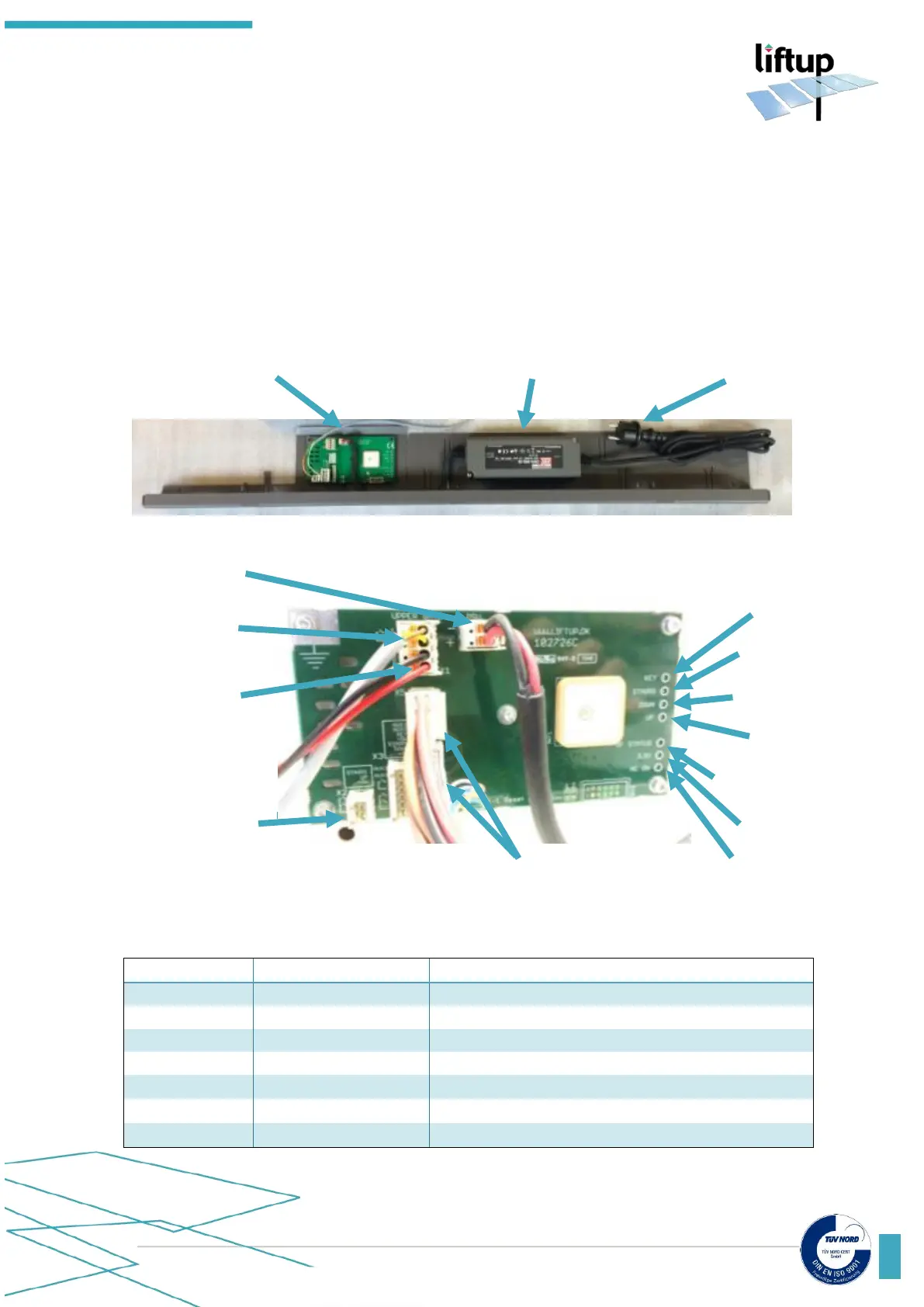

3.1 Bottom rail
4
Description
LED Colour
Action if LED is ON
Key
Orange
Key locked (I.e. FlexStep V2 not usable)
Stairs
Yellow
Button activated
Down
Yellow
Button activated
Up
Yellow
Button activated
RF Status
Orange
Remote control activated
3.3 V
Green
DC supply for remote control OK
AC ON
Orange
Power supply connected (mains)
Power supply / PSU
Key
From safety
barrier switch
(optional)
From wired call
station (optional)
From safety
barrier motor
(optional)
Stairs
Down
Up
RF status
3.3 V
AC ON
From primary control board
Connect to mains
Power supply unit
PCB for connection box
