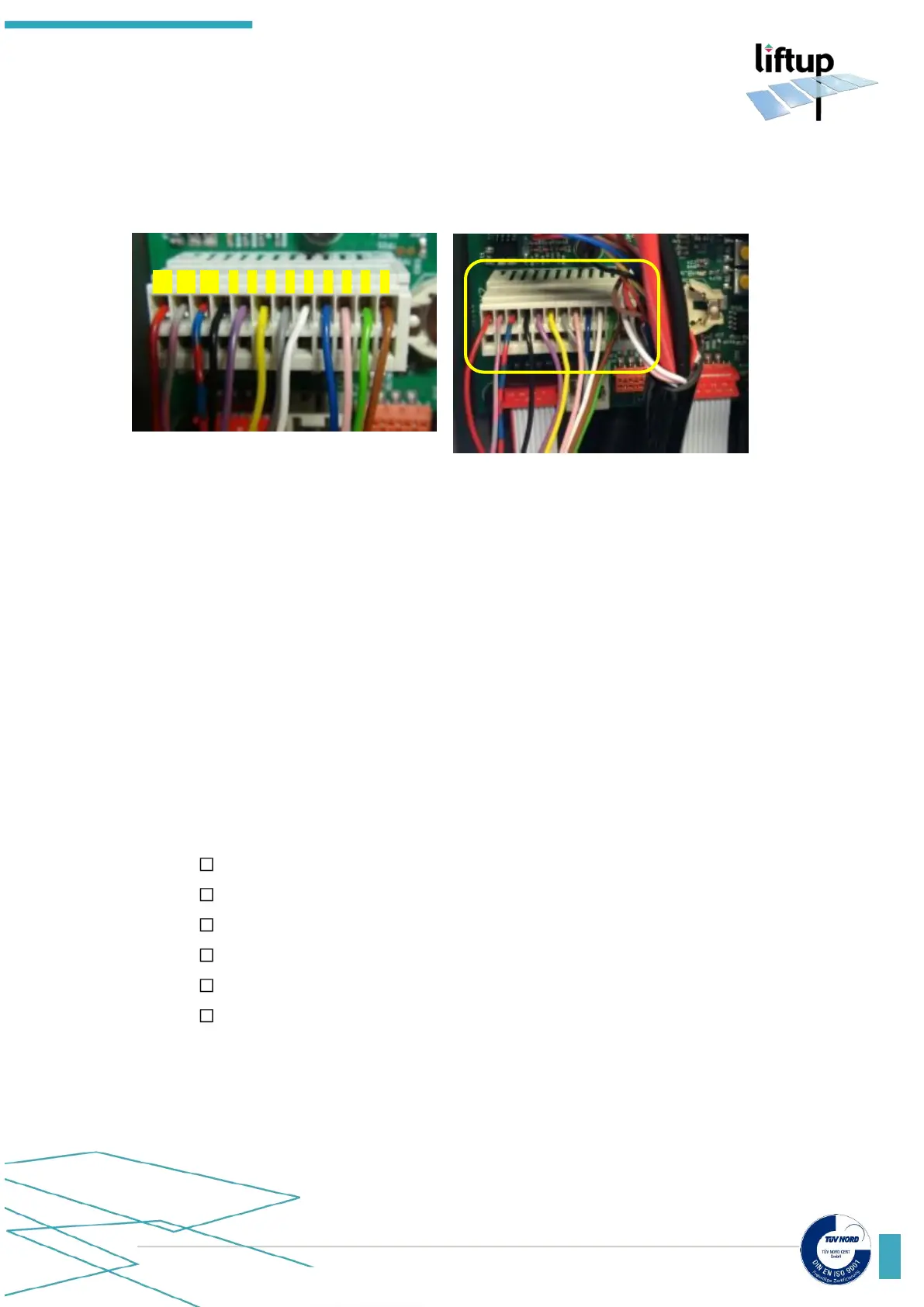

Pull the wire from the Control Panel up in front of the Control Board (102352) and reconnect
the wires to the connector as illustrated below.
Wires for Control Panel
1. Red Light +24
2. Pink/Grey Aux 2
3. Red/Blue (NB) Aux 1
4. Black Light neg
5. Purple Alarm button
6. Yellow Down button
7. Grey Up button
8. White EMS +
9. Blue VSS
10. Pink EMS
11. Green speaker
12. Brown speaker
Mount connector from control panel wires to
control board (102352)
9.3 Check list
When everything is done, please make sure that everything is working correctly using the
check list below:
Make sure no wires are squeezed.
All switches on pressure plates. (2 on each step)
All girder safety plates activates IR Stairs.
All IR PCB must be checked individually. Green LED’s are ON.
Check the emergency stop.
Maneuvering the FlexStep V2 with the up and down buttons.
12 11 10 9 8 7 6 5 4 3 2 1
