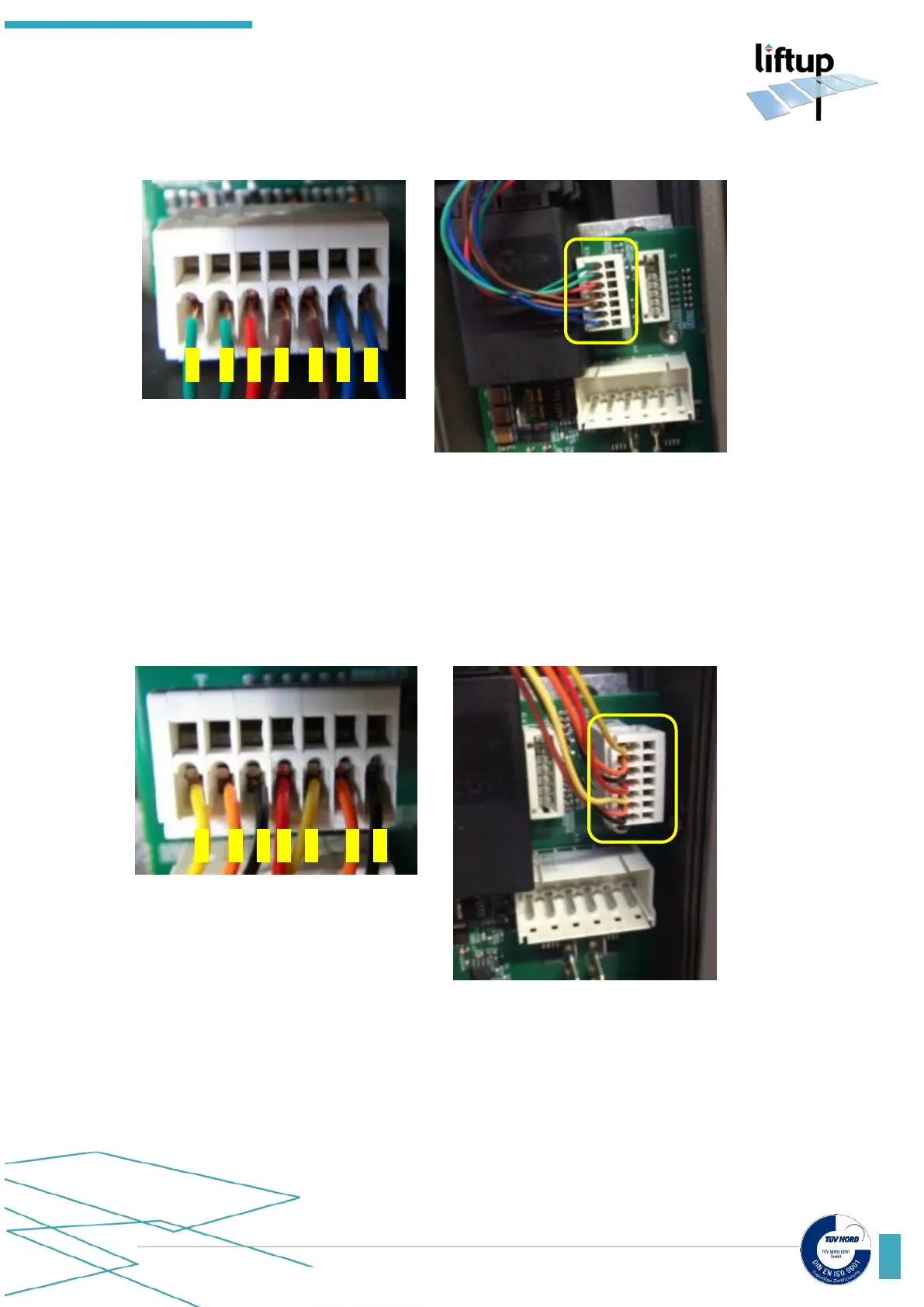

Wires for Actuator (connector X8)
1. Yellow H2 (Slave)
2. Orange H2 (Slave)
3. Black H2 (Slave)
4. Red H2 (Slave)
5. Yellow H1 (Master)
6. Orange H1 (Master)
7. Black H1 (Master)
Mount connectors from actuator wires to
control board (102352).
Wires for Actuator (connector X9
)
1. Green H2 (Slave)
2. Green H1 (Master)
3. Red H1 (Master)
4. Brown H2 (Slave)
5. Brown H1 (Master)
6. Blue H2 (Slave)
7. Blue H1 (Master)
Mount connectors from actuator wires to
control board (102352).
1 2 3 4 5 6 7
1 2 3 4 5 6 7
