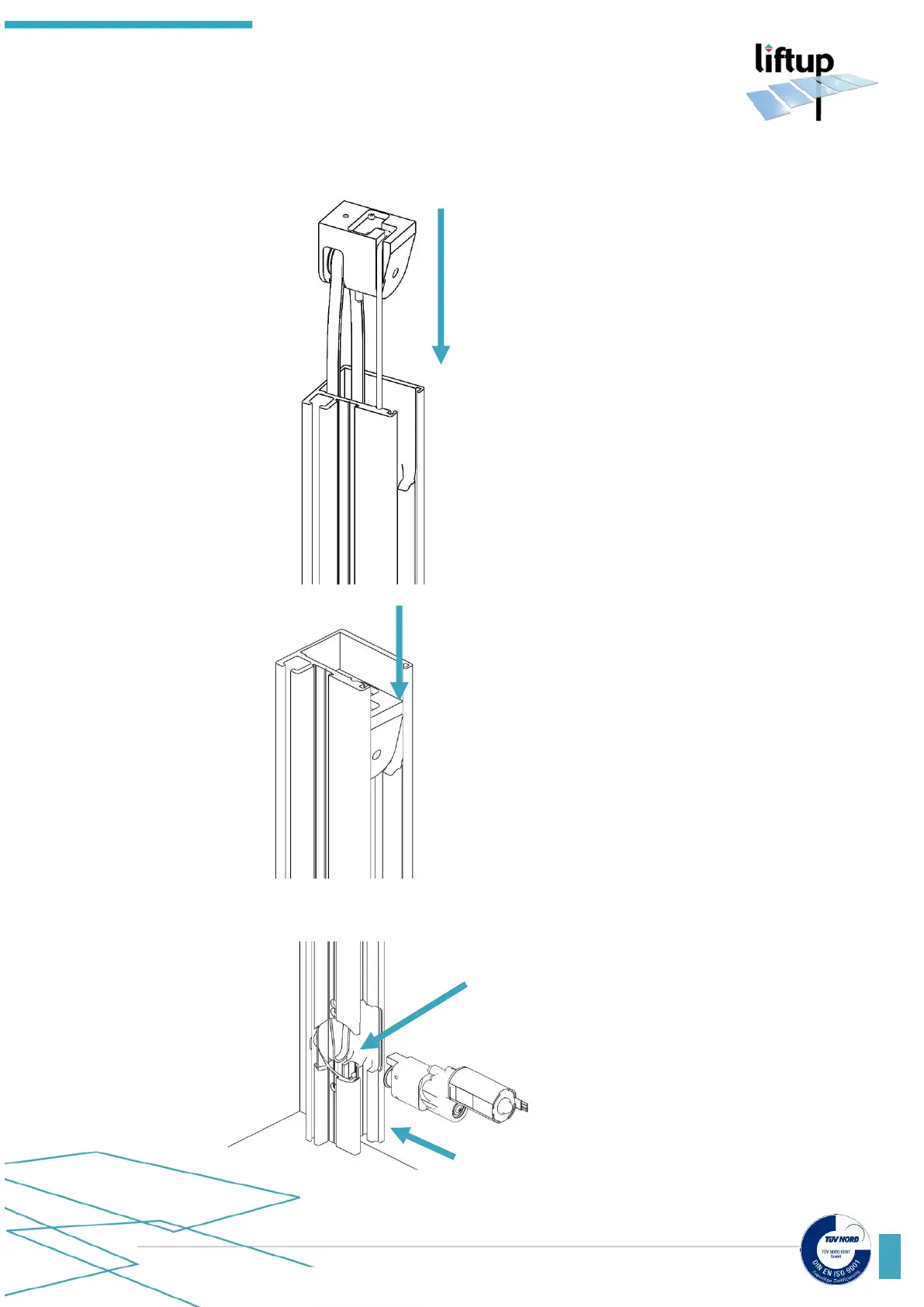

2.2.4 Assembling timing belt and motor to vertical safety barrier
Remove the masking tape holding the timing belt against the wall profile.
1.
2.
3.
Remount the motor to the
wall profile.
Carefully slide
down timing belt,
grey wire and top
mounting bracket.
Make sure the cog on the motor
is in grip with timing belt.
Top mounting
bracket placed
correct in left wall
profile.
