2.2.5 Timing belt tension
Tension on the timing belt should be "firm". The timing belt must be tight enough to
ensure sufficient grip on the cog but not too tight to overload the drive motor. Adjust
distance between top cover and top mounting bracket to be app. 20 mm.
ATTENTION
If the tension of the belt is too tight, the vertical safety barrier will not work properly
and the motor and belt will have significantly reduced lifetime.

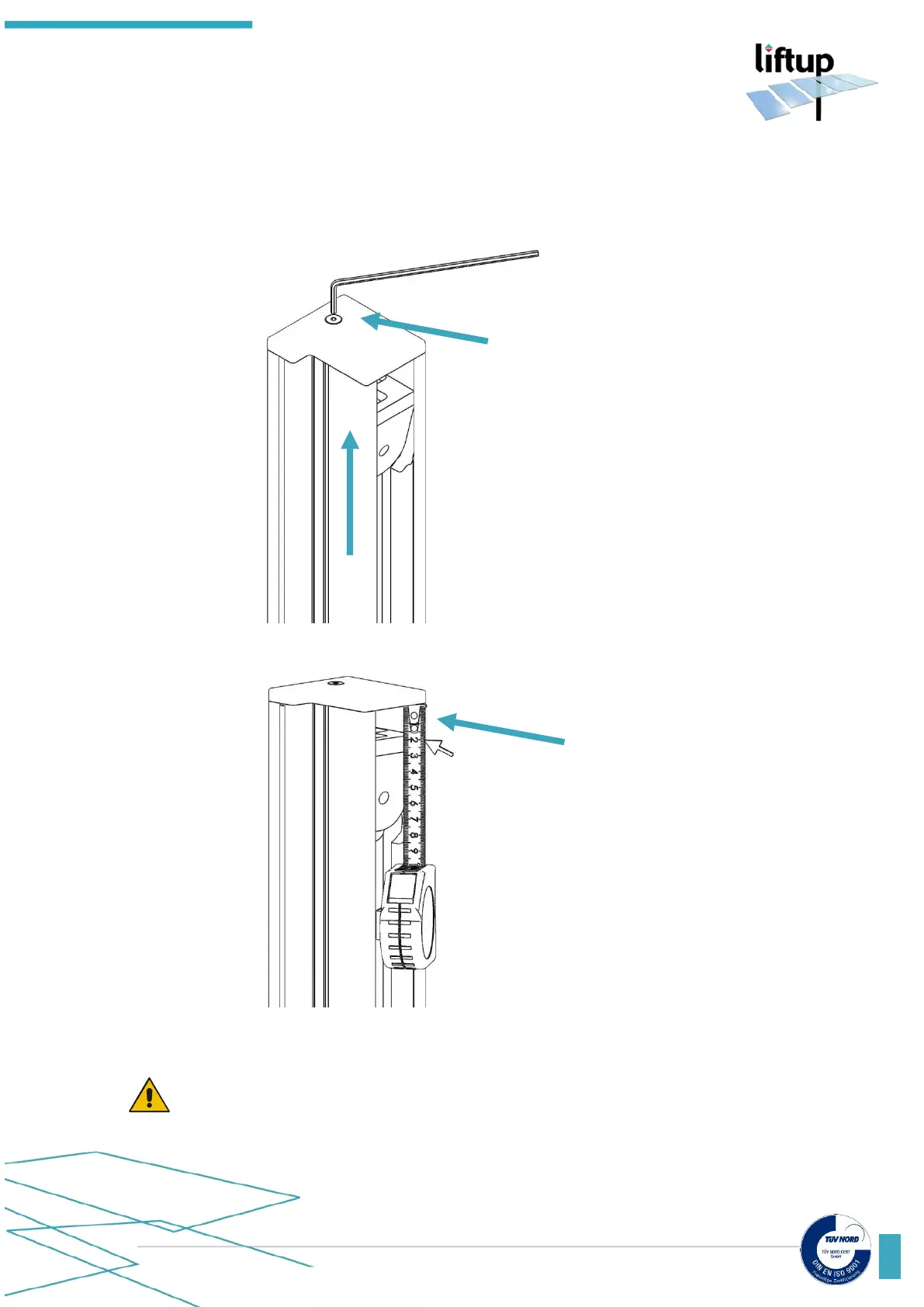

Tighten the timing belt
with the screw in the
top cover of the left
hand wall profile.
Adjust
distance to
20 mm.
