1 Unpackning & Moving the FlexStep V2
1.1 Definition
In order to simplify the reading of this manual, or any conversation with us, it is important to set
some basic definitions in place. The FlexStep V2 is a lifting platform capable of transferring a
wheelchair or disabled people between 2 levels (max 1250 mm). After transfer the product will
in most cases automatically return into staircase position.
The product can be with 3, 4, 5 or 6 steps (3+1, 4+1), as an option it can be equipped with a
Vertical Safety Barrier.

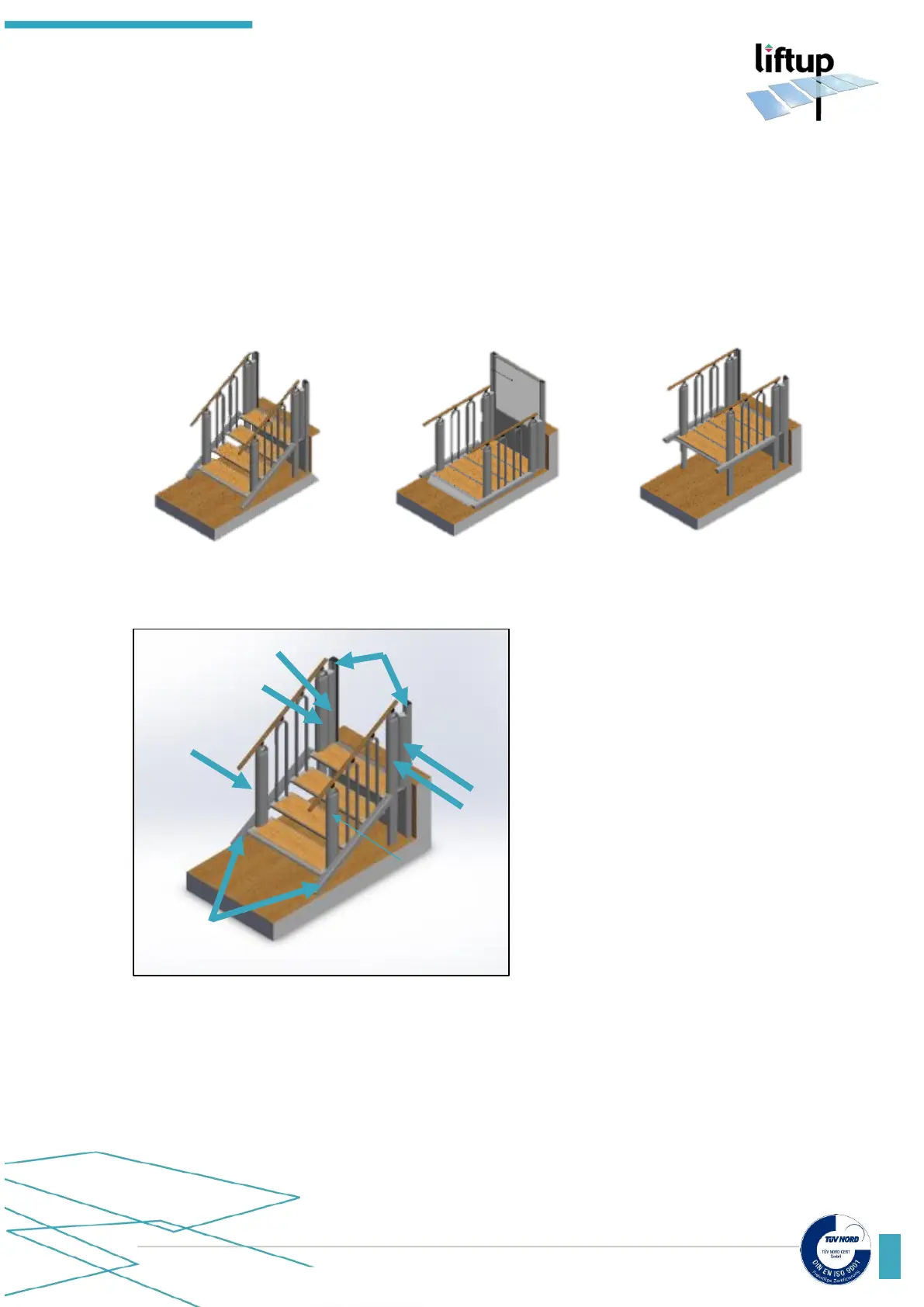

Right Hand Side of the lift
A: Primary Master Actuator
B: Primary Slave Actuator
C: Primary Control Unit (jumpers are
on this side)
Left Hand Side of the lift
E: Secondary Master Actuator
F: Secondary Slave Actuator
D: Secondary Control Unit
G: RH Side and LH Side wall profiles
H: RH Side and LH Side Girders
After opening the wood or carton pallet, you need to remove all packaging around the FlexStep.
A
B
C
E
F
D
G
H
