liftup FlexStep V2 - Wiring of Safety Switches to the Infrared Sensor Boards

INSTALLATION & SERVICE MANUAL – FLEXSTEP V2– UK VERSION
1.7
Liftup A/S Hagensvej 21| DK-9530 Støvring | Denmark | T: +45 96 86 30 20 | M: support@liftup.dk | www.liftup.dk | CVR DK-1015 3964
46
IR safety RX board. (103008)

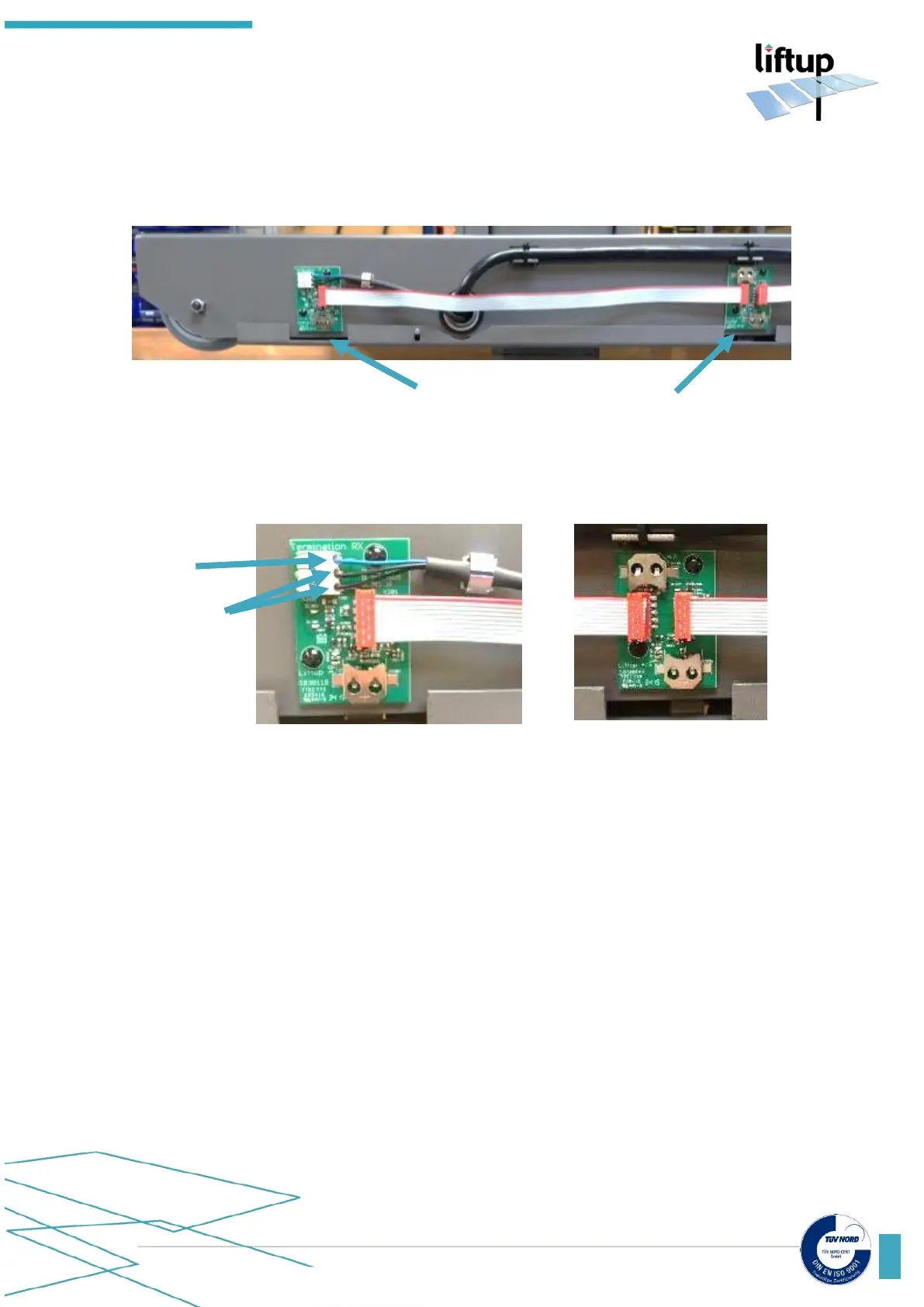

7.2 Wiring of Safety Switches to the Infrared Sensor Boards
The pictures bellow show how the wires from the safety switches are connected to the
IR-boards.
IR safety RX board. (103008)
IR termination board (103011)
RH side girder
Safety switch
lower step
Ramp lock switch.
IR termination board (103011)
