4.4 How to pair transmitter and receiver
4.4.1 Wireless call station and receiver
The transmitter and receiver must always be paired in order to work.
The receiver will not react to a transmitter which is not paired with it.
A receiver can be paired with up to 20 transmitters.
A transmitter can be paired with several receivers if required.
When a receiver is powered on (please see section 3.6) the RF-Status in the connection box will
flash for 2 minutes. Or until it is paired with a transmitter.
How to reset the transmitter and receiver
To reset a call station so it is no longer paired with a particular lift, do as follows:

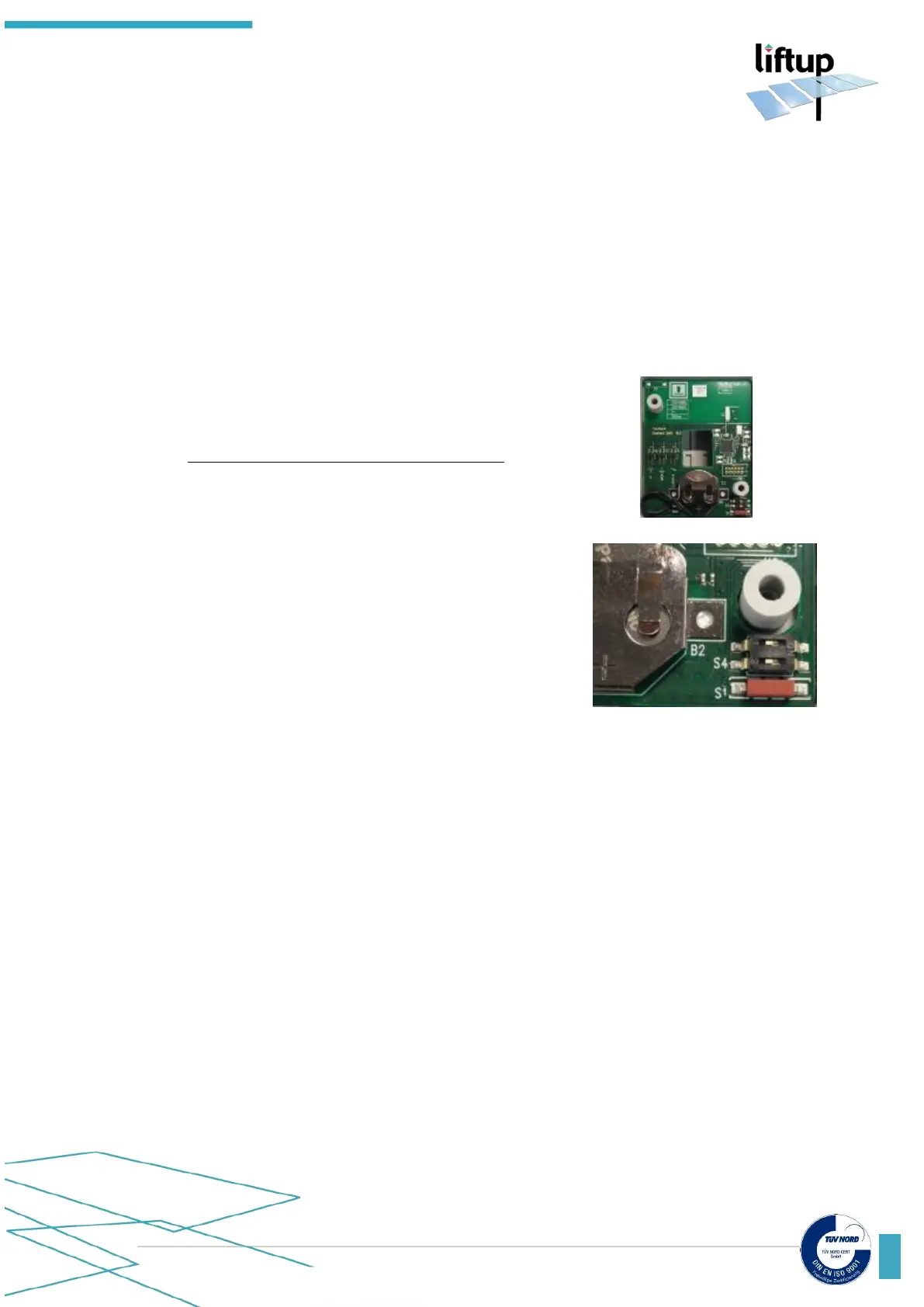

Set microswitch S4 #1 to ON and press on the contact or connect (↑) or (↓) using a metal
object. The control LED on the call station will flash rapidly.
The pairing with the receiver has now been erased.
Return microswitch S4 #1 to off.
How to reset the receiver
Switch the receiver on.
Short-circuit JP1-1on the connection box board.
When the control LED begins to flash rapidly, the receiver has been reset.
Should the control LED not flash rapidly, this means that no receiver has been paired.
1. Ensure that there is power to the system. Press the
emergency stop and switch off the on/off switch on
the side of the lift (please see item 10.6).
2. Wall-mounted remote-controlled call station: Set
microswitch S4 #2 to ON and press on the contact
or short-circuit (↑) or (↓) using a metal object. The
control LED on the call station will start to flash
slowly. The call station is now in installation mode for
2 minutes.
Return S4 #2 to its starting position (off).
3. Within these 2 minutes, release the red emergency
stop on the lift by turning it clockwise.
4. The control LED on the call station is paired with the
lift when it stops flashing.
5. Test the system so as to ensure the pairing has been
performed correctly. If not, repeat 1-5 above.
If you need to pair several call stations to the
receiver, repeat items 2-6 above.
6. Switch on the on/off switch on the side of the lift.
