7 Safety Features
7.1 Infrared Sensors (IR)
The FlexStep V2 is mounted with Infrared Sensors, to minimise risk of getting
squeezed between the steps and under the girders. The Infrared Sensors are
positioned on the girders off the edges of each step and protected by removable
covers.

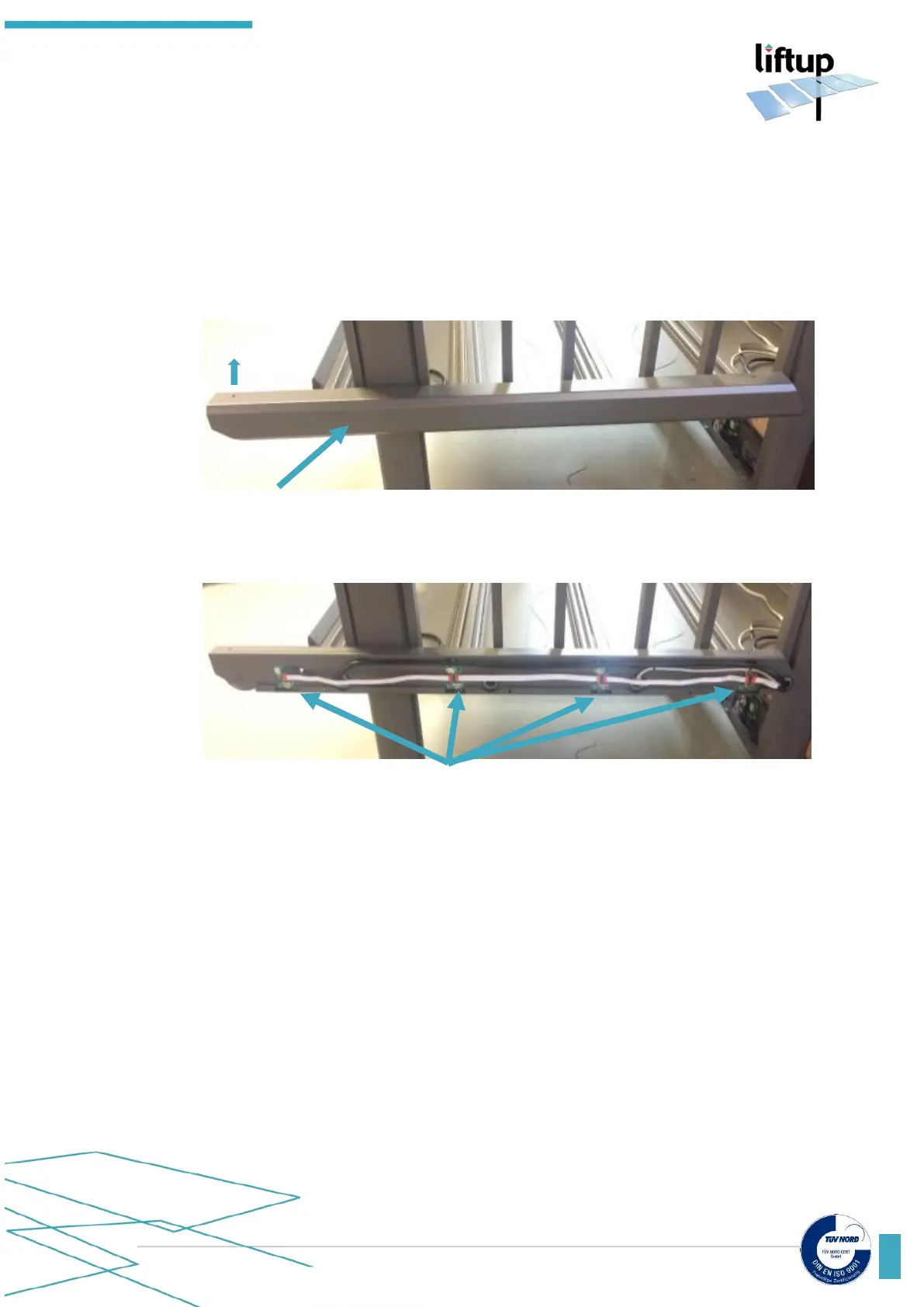

Attaching the IR safety boards TX (Transmitter) & RX (Receiver) to the girder:
The safety IR boards are attached to the girder with plastic clips. TX boards with the LED
through the hole and RX boards with the receiver opposite the hole.
