9 Assemble the steps

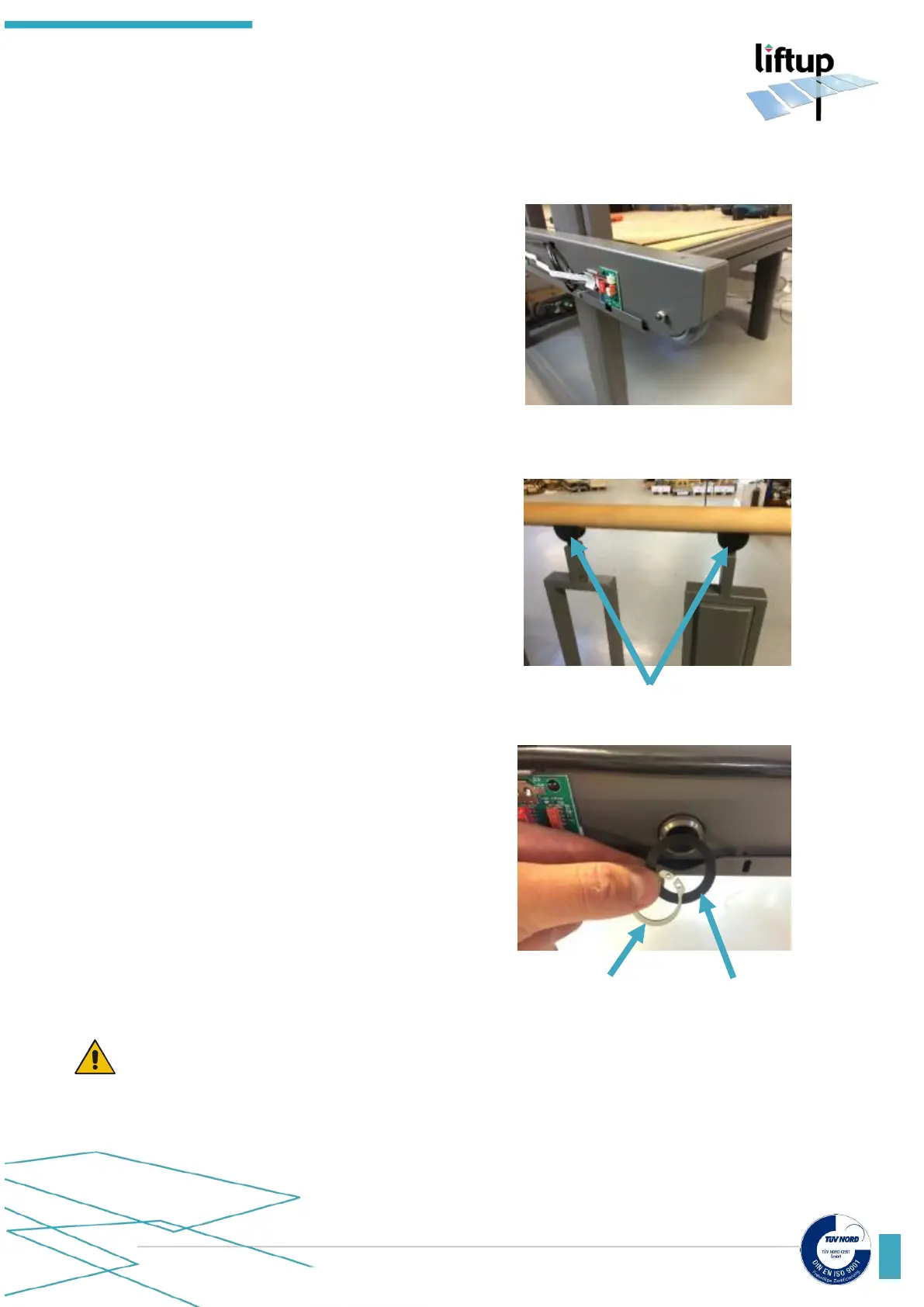

9.1 Mounting the girders
Place the steps in the correct position (1-2-3-4-
5) and place the two girders near by the steps
(app. 5-10 cm from the steps).
Make sure that the right hand side girder is at
the right hand side, (PCB’s are always on the
outer side).
First assemble the handrails.
Push the girder towards the steps and on to
the shafts. Place the plastic spacers on the
shafts. Mount the circlips on the shafts. Now
put all the wires through the holes of the
bushings.
IMPORTANT!
When both girders have been mounted, make sure that all the wires are able to move
freely in the holes (Not squeezed).
