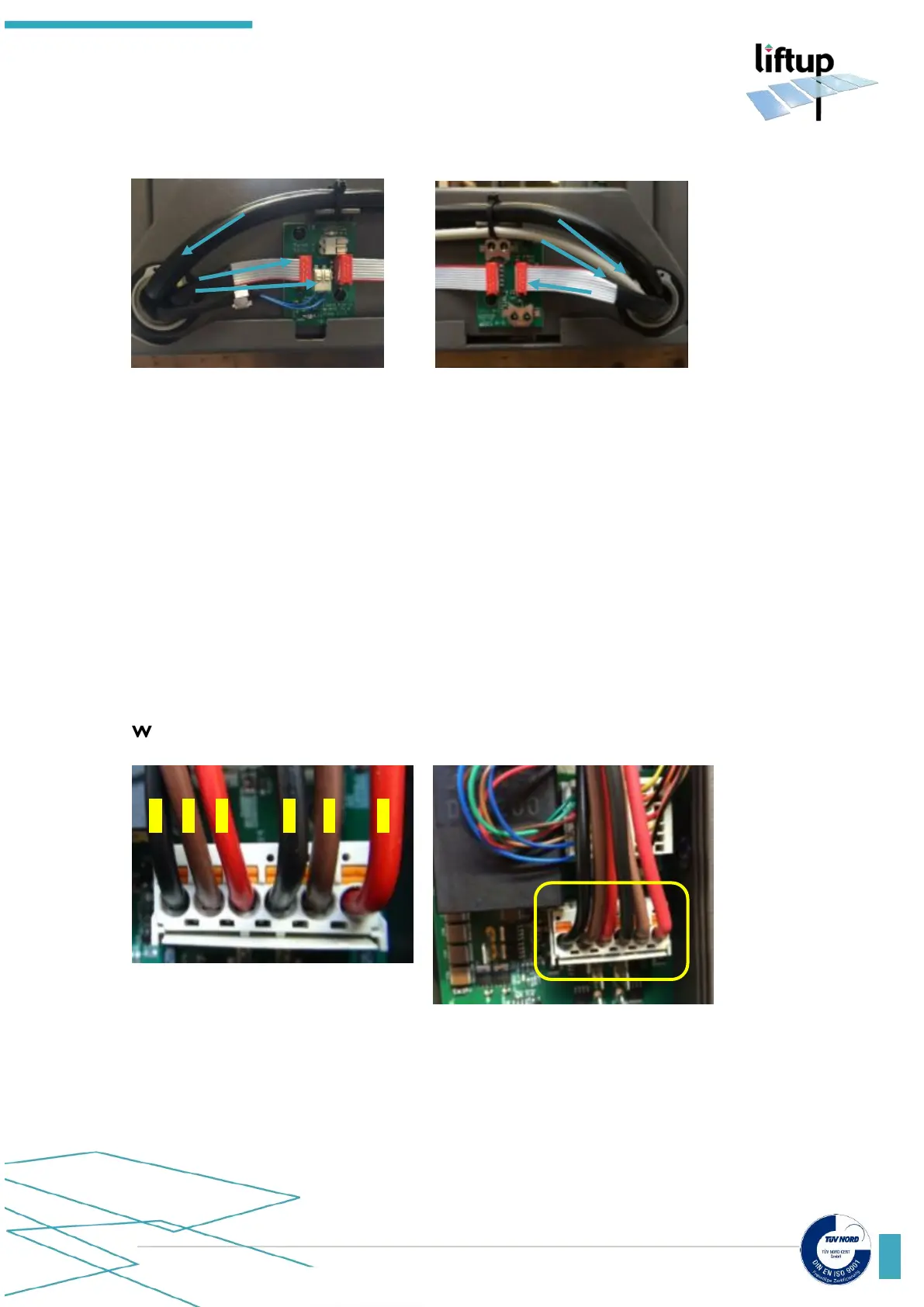

9.2 Connecting the wires
Left hand side
1 Pull flat wire and blue wires out
through upper step shaft and connect to
IR Safety TX board (103009).
2 Pull black wire from secondary slave
actuator in through upper step shaft for
connection to control board (102352).
3 Mount wires to girders with cable
binders.
Right hand side
1 Pull flat wire out through upper step
shaft and connect to IR Safety RX board
(103008).
2 Pull black wire from primary slave
actuator and grey wire from control panel
in through upper step shaft for connection
to control board (102352).
3 Mount wires to girders with cable
binders
Pull the wires from the actuators up behind the Control Board and reconnect the
wires to the connectors as illustrated below:
Wires for Actuator (Connector X4 )
1. Black (slave = H2)
2. Brown (slave = H2)
3. Red (slave = H2)
4. Black (master = H1)
5. Brown (master = H1)
6. Red (master = H1)
Mount connectors from actuator wires to
control board (102352)
1 2 3 4 5 6
