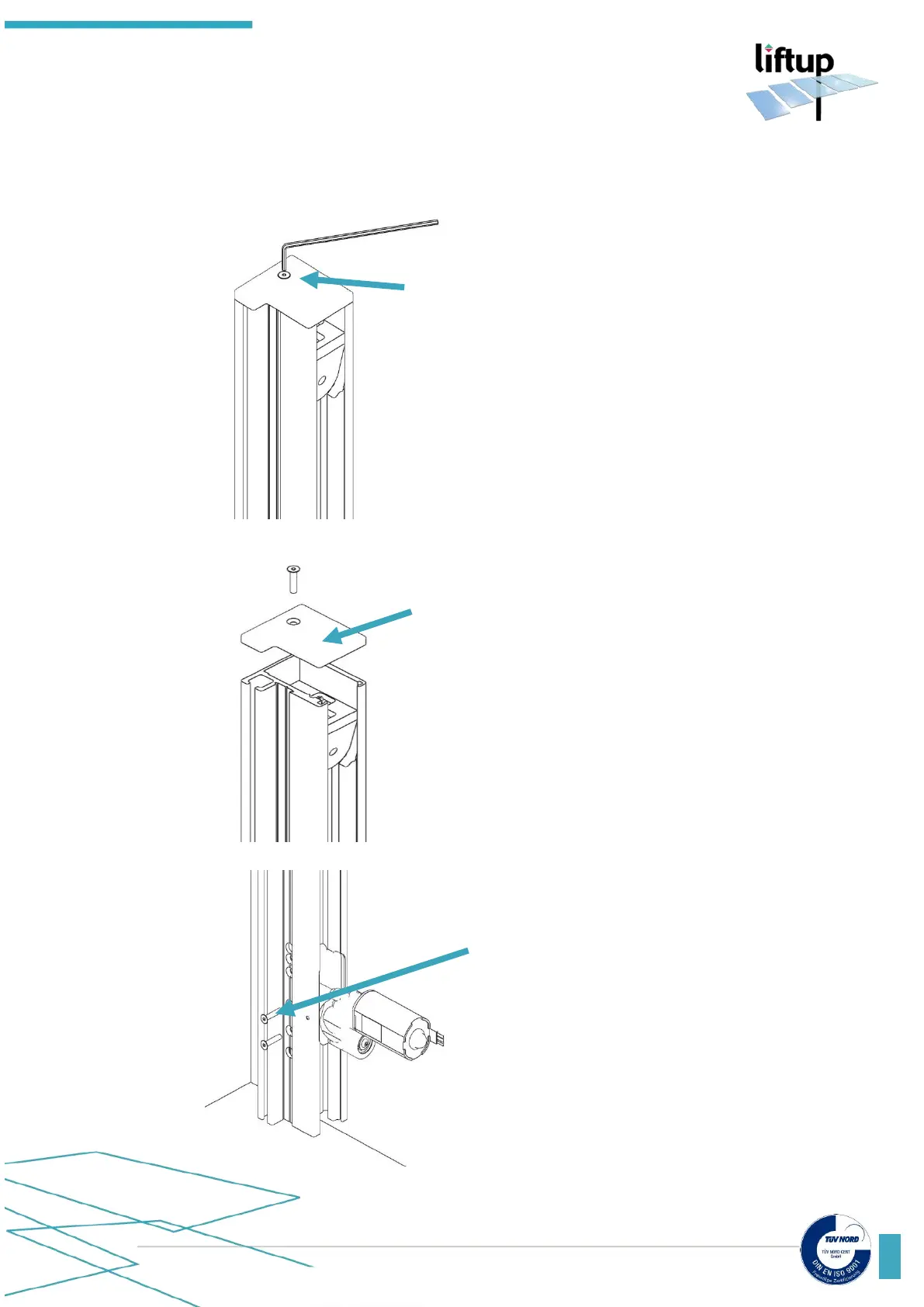

2.2.2 Dismantling timing belt system
The left hand side wall profile is delivered with motor, timing belt etc. already mounted.
The motor and timing belt must be dismounted before mounting the plates that forms
the Vertical Safety Barrier.
1.
2.
3.
Loosen two screws and
dismount motor.
Remove the top cover from the wall profiles in
both left and right hand side to access the top
mounting bracket for the timing belt.
Loosen the belt tension screw in the top cover.
