5.

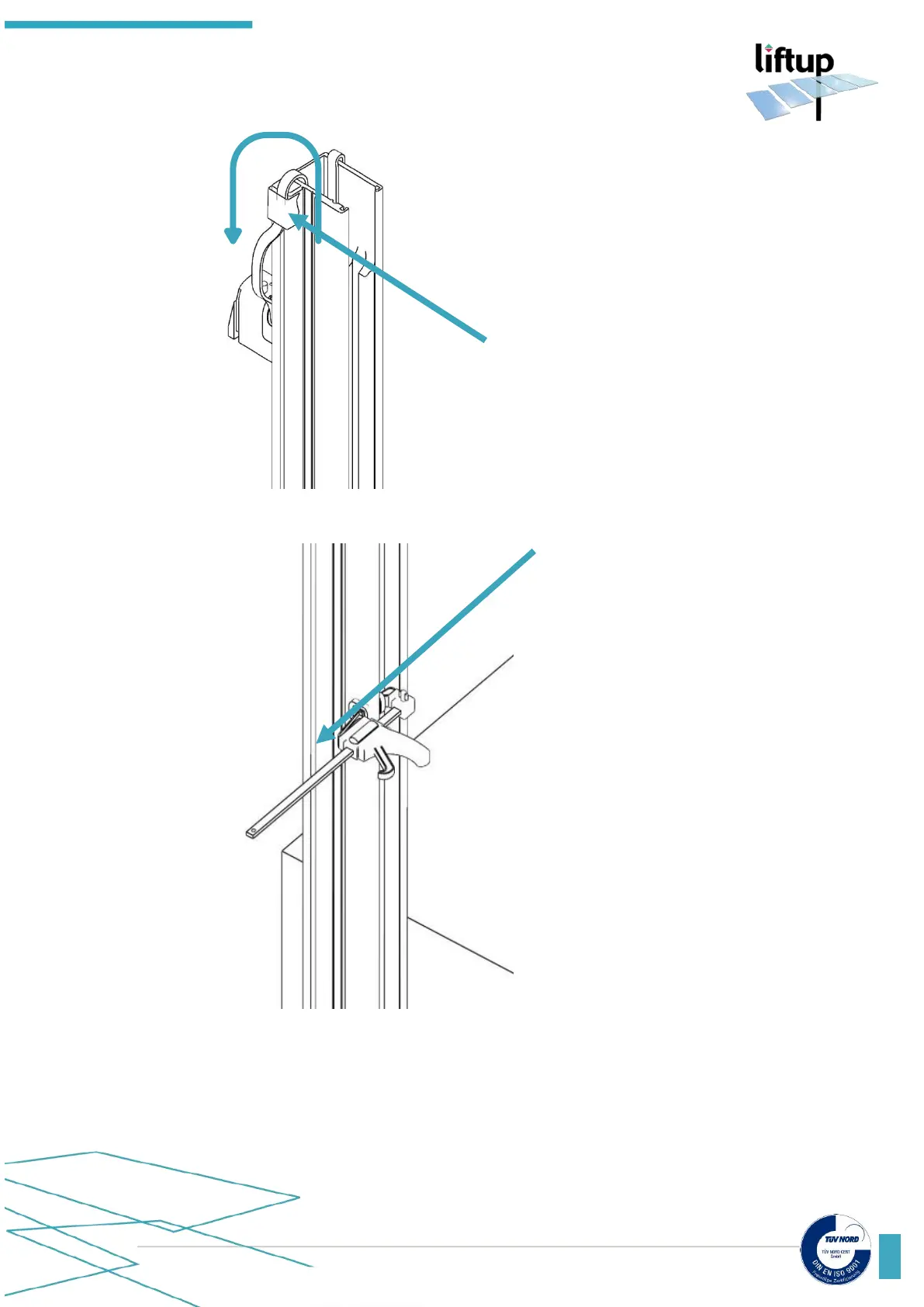

Fasten the timing belt to the wall profile
with masking tape or similar.
Pull the timing belt up from the left hand
wall profile leaving 20 – 25 cm hanging
outside the wall profile.
Mount a bar clamp on the wall
profile temporarily, to secure
vertical safety barrier from sliding
down towards the floor. Remove
it when barrier plates are placed
into the wall profiles, motor is
mounted and connected to
timing belt.
