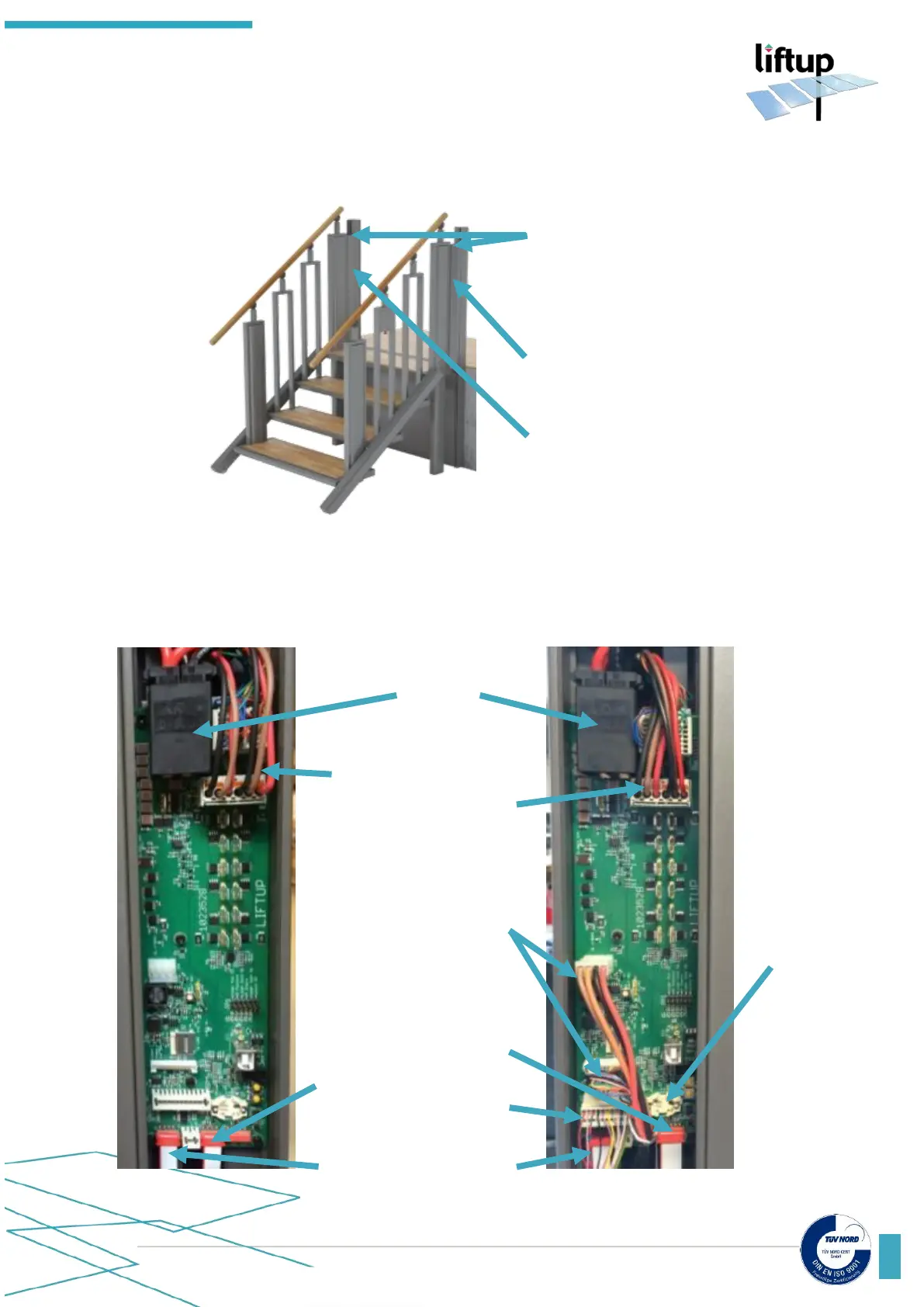

3.2 Control Boards
The FlexStep V2 control boards (102352) are mounted inside the two control units,
placed on each side of the FlexStep V2.
PRIMARY Control unit
(102352)
RH side
SECONDARY Control unit
(102352) LH side
IR safety
RX boards
Actuators cables
LH side
PCB for
Connection box
cables
Operating
panel
Primary
Control board
Actuators cables
RH side
Battery Power
connector
Secondary
Control board
IR safety
TX boards
Battery
CR 1220
Remove covers for control box to access
control boards.
Primary control board (always on right
hand side of the Flexstep V2)
Secondary control board
