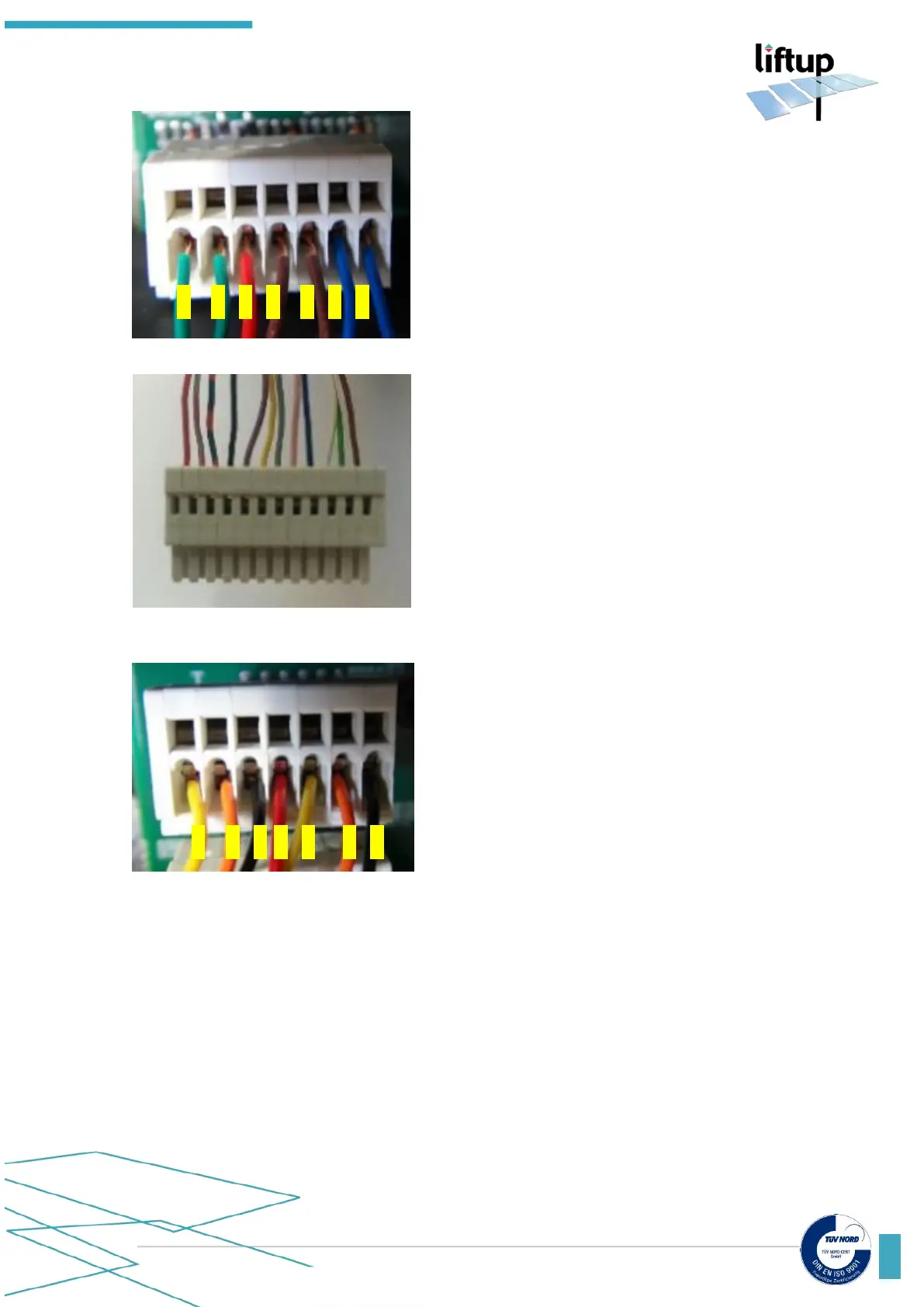

Disconnect Hall sensor actuator wires for the SLAVE
actuator (H2) from connector X9 (1, 4, 6)
Disconnect control panel wires from connector (only on the
primary side)
Disconnect Hall sensor actuator wires for the SLAVE
actuator (H2) from connector X8 (1,2,3,4)
Repeat on the LH side Control Board!
1 2 3 4 5 6 7
1 2 3 4 5 6 7
