Lighthouse SOLAIR 3350, 5350 Gen E Operating Manual
6-48 248083387-1 Rev 10

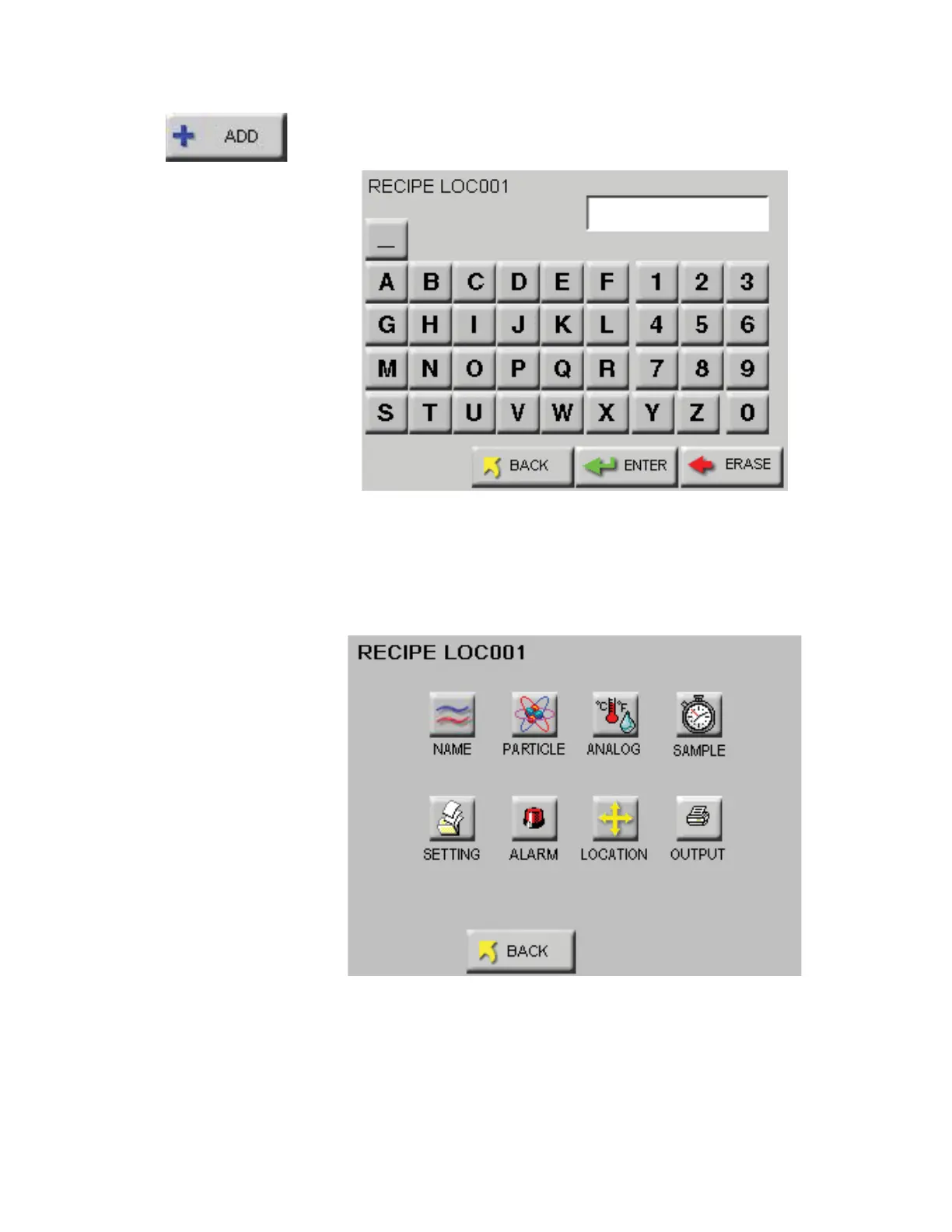

Selecting the ADD button displays the RECIPE text screen. See Figure
6-64. The recipe can be named using up to 12 characters.
Note: If the location
selected is already
assigned to another recipe
or if there are no available
free locations, the user will
not be able to add a new
recipe. The “Add” button
will not be displayed.
Figure 6-64 Recipe Name Screen
Pressing the ENTER button will add the recipe to the database and
display the recipe CONFIG screen as shown in Figure 6-65. Each
option allows the user to configure the instrument to the current recipe.
Figure 6-65 Recipe Configuration
Press the BACK button to save the settings and return to the RECIPE
screen.
