Lighthouse SOLAIR 3350 - Page 48

Lighthouse SOLAIR 3350, 5350 Gen E Operating Manual
4-14 248083387-1 Rev 10
6. Select Connections and verify that Connect Protocol and
Connection settings are set to the following:
• Protocol: Modbus
• Local Port: 502
• Accept Incoming: Yes.
• Under Modbus Mode, set the Message Timeout to “1000ms” if
not already set.
• Press the OK button.Connections Settings will display Done! as
shown in Figure 4-11.

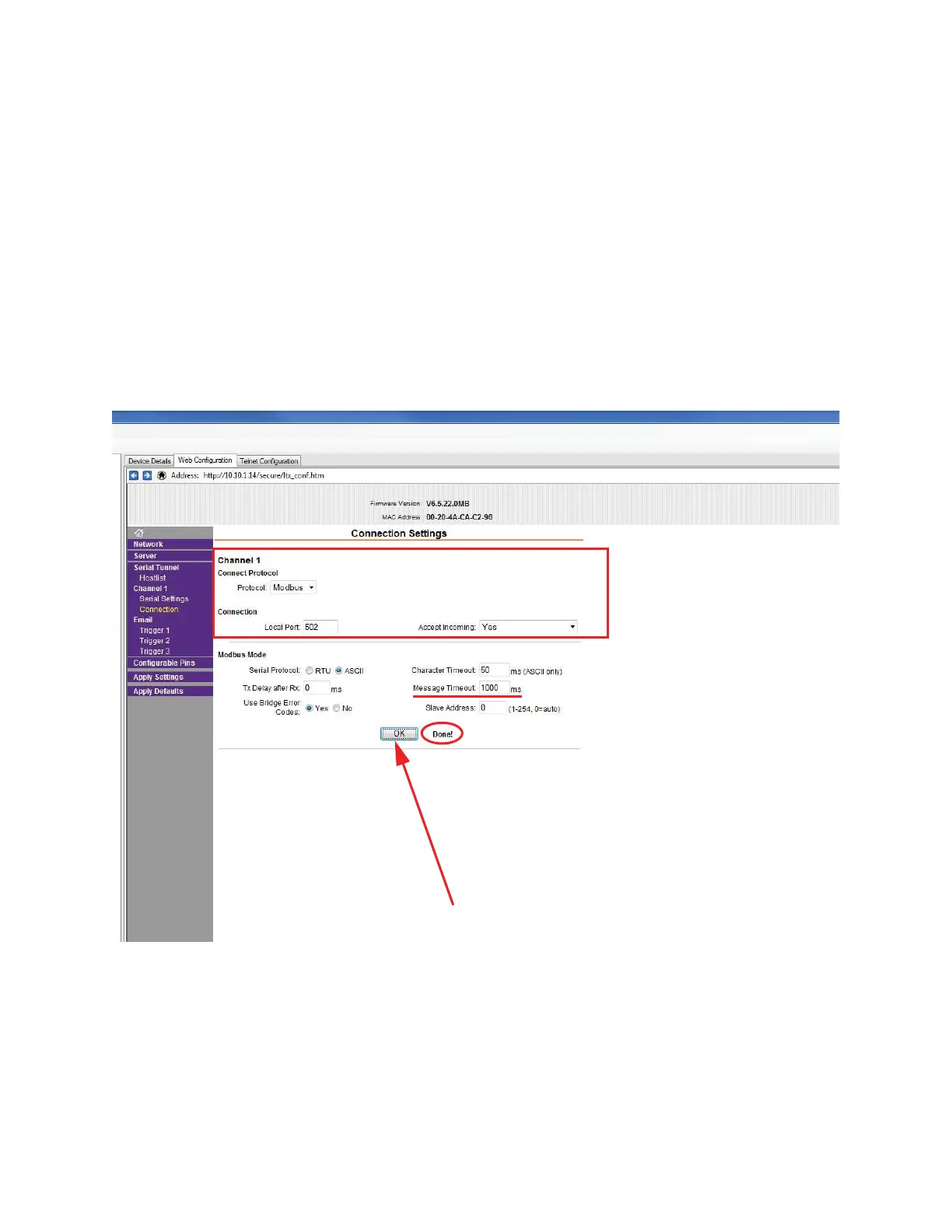

Figure 4-11 Connections
