Lightware MMX8x4-HT Series User Manual


12. Appendix MMX8x4-HT series – User's Manual 185


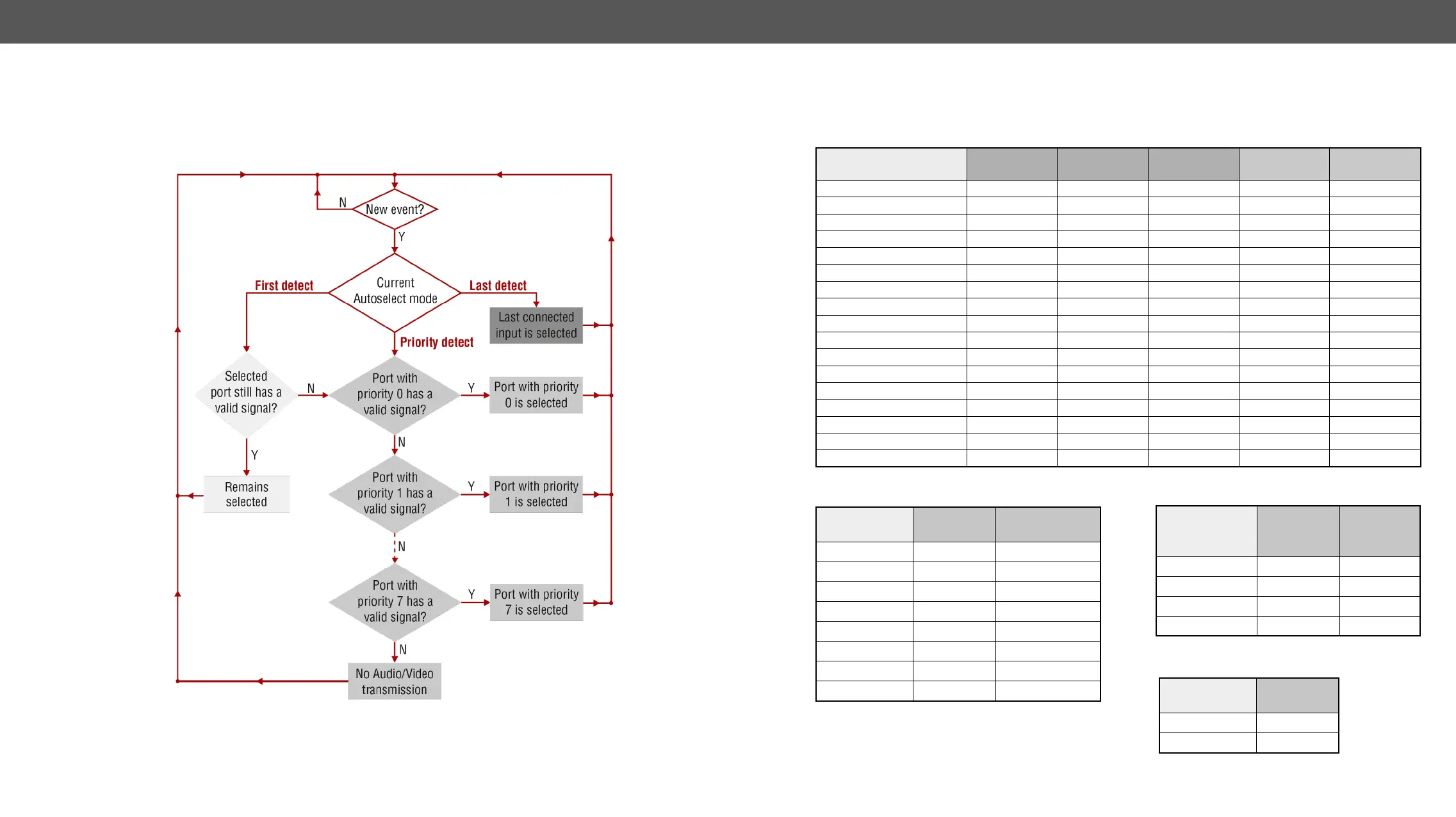

Flowchart of Autoselect Modes Port Numbering


Port name
Video port nr.
(LW2)
Video port nr.
(LW3)
Emulated
EDID memory
Audio port nr.
(LW2)
Audio port nr.
(LW3)
TPS IN 1 01 I1 F47 - I1
TPS IN 2 02 I2 F47 - I2
TPS IN 3 03 I3 F47 - I3
TPS IN 4 04 I4 F47 - I4
HDMI IN 5 05 I5 F47 - I5
HDMI IN 6 06 I6 F47 - I6
HDMI IN 7 07 I7 F47 - I7
HDMI IN 8 08 I8 F47 - I8
MIC INPUT - - - - I9
 - - - - I10
<video_port_name> - - - - I11
HDMI OUT 1 01 O1 - - O1
HDMI OUT 2 02 O2 - - O2
HDMI OUT 3 03 O3 - - O3
HDMI OUT 4 04 O4 - - O4
AUDIO OUT 05 O5 - - -
 - - - - O6
RS-232 Ports
Port name
Port nr.

Command
injection port nr.
Rs232 1 P1 8001
Rs232 2 P2 8002
Uart3 Ir1 Mixed P3 8003
Uart4 Ir2 Mixed P4 8004
TPS IN 1 P5 8005
TPS IN 2 P6 8006
TPS IN 3 P7 8007
TPS IN 4 P8 8008
IR Ports
Port name
Port nr.

Command
injection
port nr.
IR1 Uart3 Mixed D1 9001
IR2 Uart4 Mixed D2 9002
IR3 D3 9003
IR4 D4 9004
Ethernet
Port name
Port nr.

CPU P1
Control P2




