5. Device Concept MMX8x4-HT series – User's Manual 40

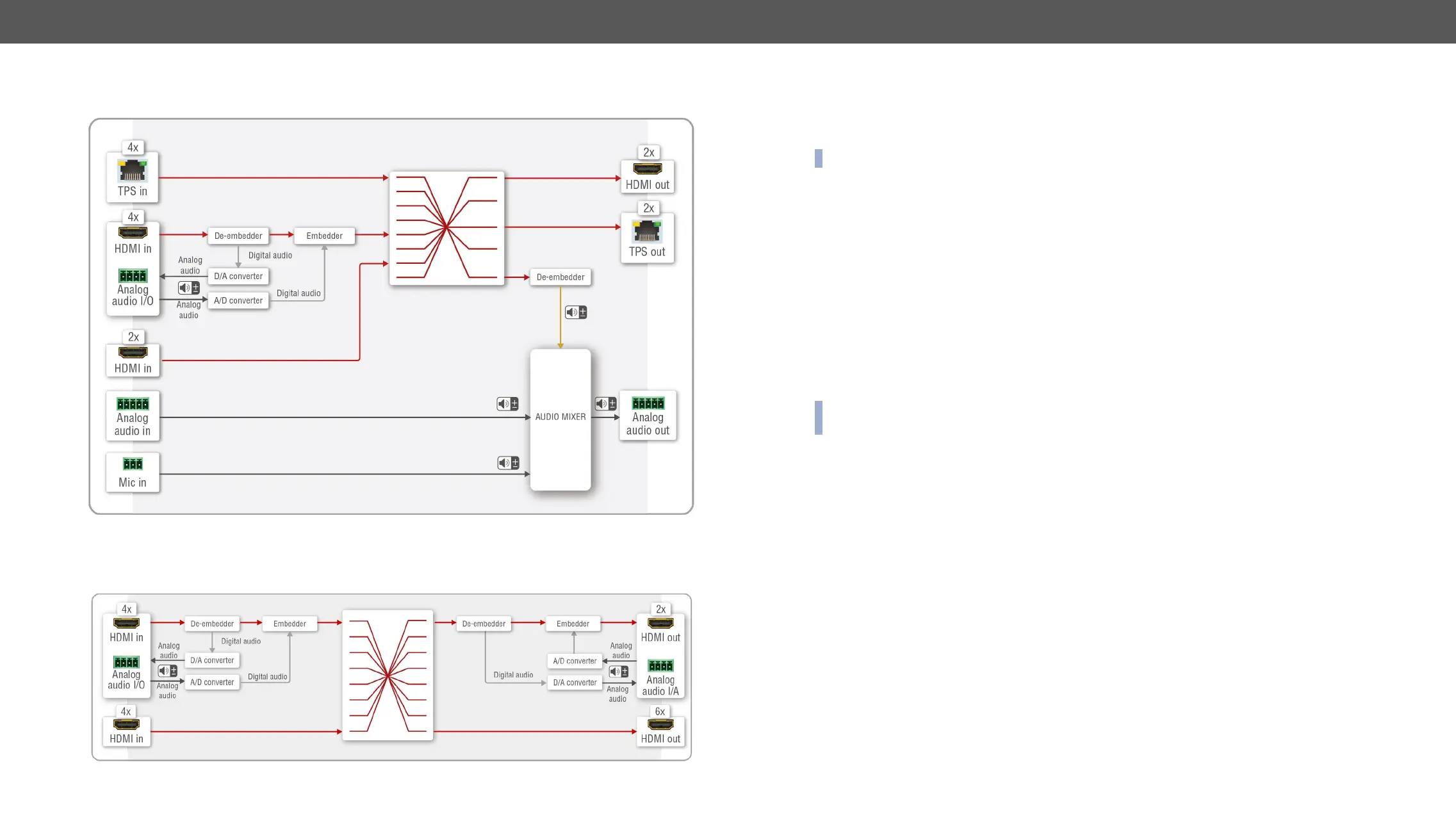

matrix:
The Autoselect Feature
software (see more info about it in HDMI and TPS Output Port Properties
(see more info about it in Change the Autoselect Mode section).
INFO: An input port is active if there is a valid signal on it.
There are three types of Autoselect as follows:
First detect mode: Selected input port is kept connected to the output while it has an active signal.
Priority detect mode: Always the highest priority active input is selected to transmit.
▪ Match the priority to the input ports. 0 means the highest, 7 means the lowest priority. If two inputs
have the same priority number, the lower port number gets higher priority.
▪ Certain inputs can ignore by clicking the green tick or write 31 instead of the priority number. This port
will be not scanned. See more details about this setting in section.
▪ Always confirm the settings by clicking on Set priorities button.
Last detect mode: Always the last attached input is selected to transmit.
See the Flowchart of Autoselect Modes in the Appendix chapter.
INFO: Autoselect mode is always disabled on locked output. If the crosspoint is changed manually, the
autoselect function became also disabled.
