Port Properties Windows
TPS Input Port Properties
DIFFERENCE:  MMX8x8-HDMI-4K-A and MMX8x8-HDMI-4K-A-USB20 models have no TPS port.

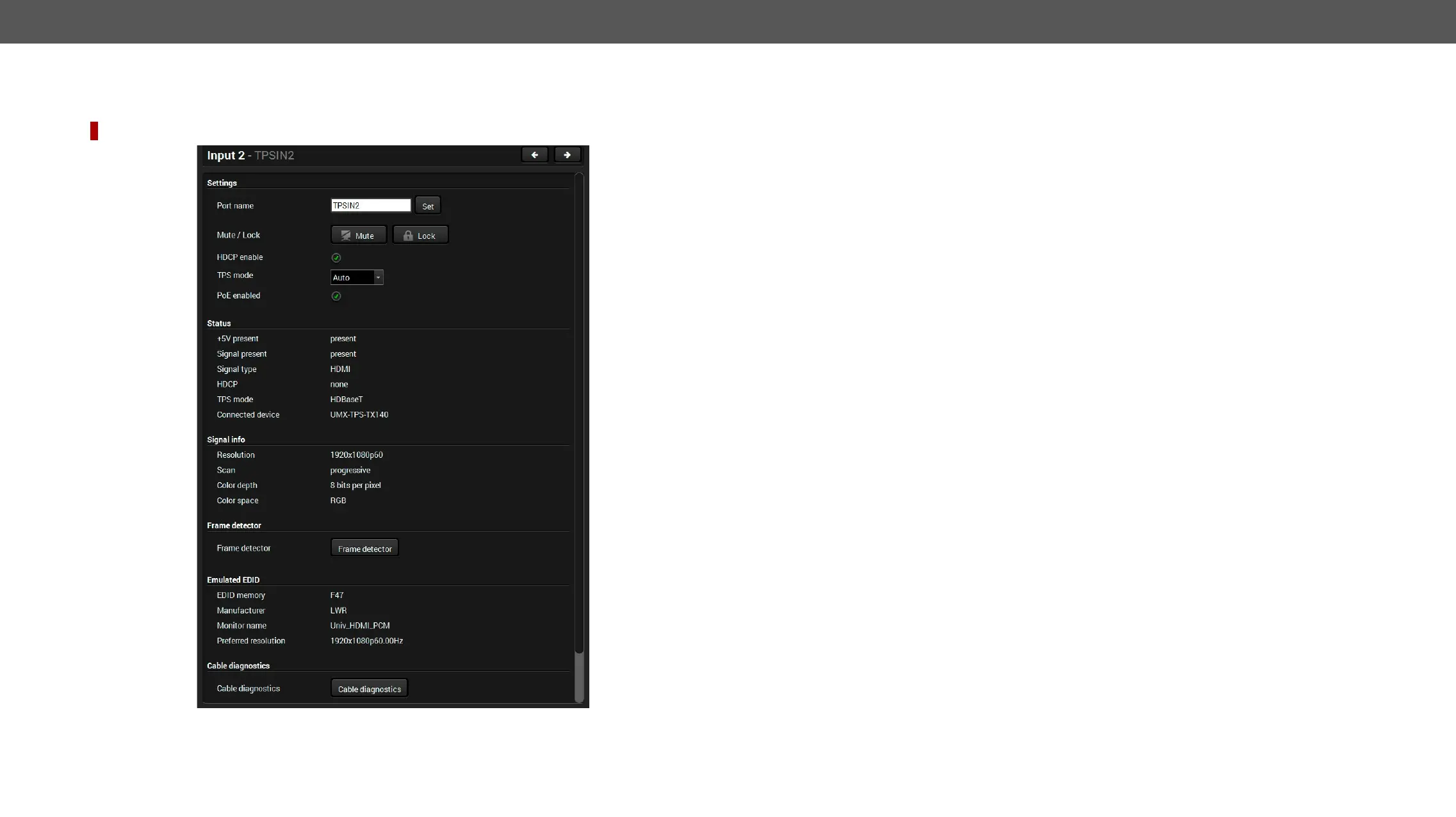

TPS Input Port Properties Window in MMX8x4-HT420M model
#hdcp#lock#unlock#mute#unmute#portstatus#tpsmode#diagnostic#cablediagnostic#framedetector
Available Settings
▪ Port name
▪ Mute/unmute the port;
▪ Lock/unlock the port;
▪ HDCP setting
▪ TPS mode
 TPS Interface
section.
▪ PoE setting*
TPS input and output ports which are compatible with the PoE standard.
*Only in MMX8x4-HT420M model.
Status and Signal Info
It gives a feedback about the current parameters the of the video signal:
▪ 
▪ 
Frame Detector
See more details about the Frame Detector in the Frame Detector section.
Emulated EDID
Displays the basic information about the emulated EDID.

Other
Reloading Factory Default Settings for the selected port.




