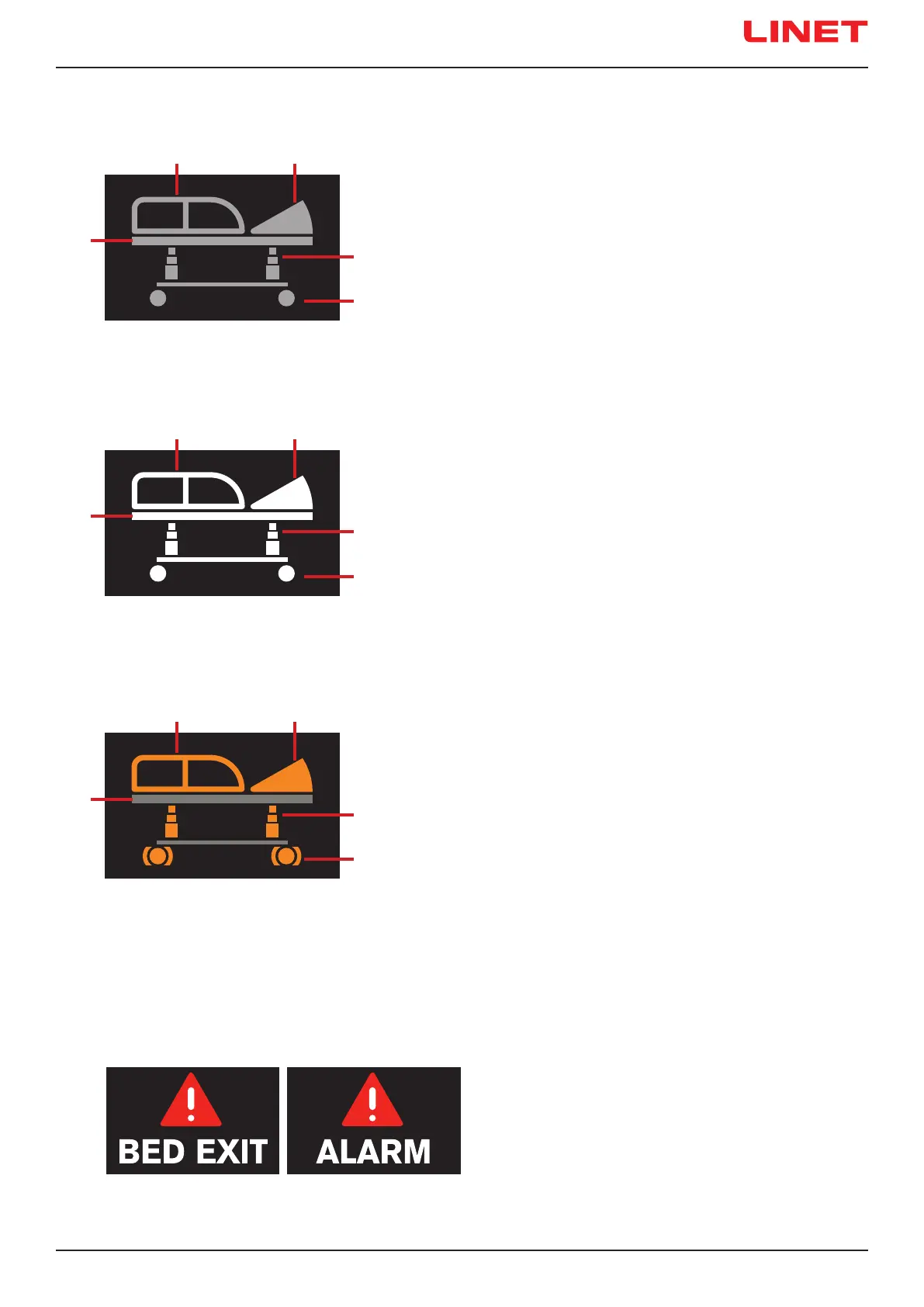

Fig. Bed picture with all insecure bed
statuses (ashing orange - alerts/in-
secure statuses)
Fig. Visual signalisation of Bed Exit Alarm (alternation of
the two inscriptions)
Fig. Bed picture with all not monito-
red statuses (grey - not monitored
statuses)
Fig. Bed picture with all secure bed
statuses (white - secure monitored
statuses)
1
1
1
2
2
2
5
5
5
1. siderail status (all siderails up/ siderail down)
2. backrest angle (backrest in more than 30°/backrest in less than 30°)
3. bed height (bed in the lowest position/ bed not in the lowest position)
4. brake status (braked castors/unbraked castors)
5. Bed Exit Alarm Status (grey - Bed Exit Alarm is not activated)
1. siderail status (all siderails up)
2. backrest angle (backrest in more than 30°)
3. bed height (bed in the lowest position)
4. brake status (braked castors)
5. Bed Exit Alarm Status (white - Bed Exit Alarm is activated)
1. siderail status (ashing orange - siderail down)
2. backrest angle (ashing orange - backrest in less than 30°)
3. bed height (ashing orange - bed not in the lowest position)
4. brake status (ashing orange - unbraked castors)
5. Bed Exit Alarm Status (grey - Bed Exit Alarm is not activated)
17.12.1 Signalisation (Bed picture)
17.12.2 Bed Exit Alarm Signal
Bed Exit Alarm is signalized visually on the display of m-Panel.
