11.2 Castor Control
CAUTION!
Material damage due to incorrect transport and involuntary movement!
► Prior to transport, ensure that the bed is disconnected from the mains.
► Ensure that the castors are braked prior to assembly, disassembly and maintenance.
► Ensure that the castors are braked when the bed is occupied.
► Hang the mains cable on the transport hook on the bed during transport.
► Have the bed transported exclusively by nursing personnel and by at least 2 persons.
CAUTION!
Respect minimal clearance underneath the bed!
► Observe the path for any obstacles and avoid collisions and possible damages of any bed´s part on the underca-
rriage.
► Do not use bed lifts and hoists for lifting the bed.
The bed is equipped with central castor´s control and brake system.
The control levers are located in the four corners of the undercarriage.

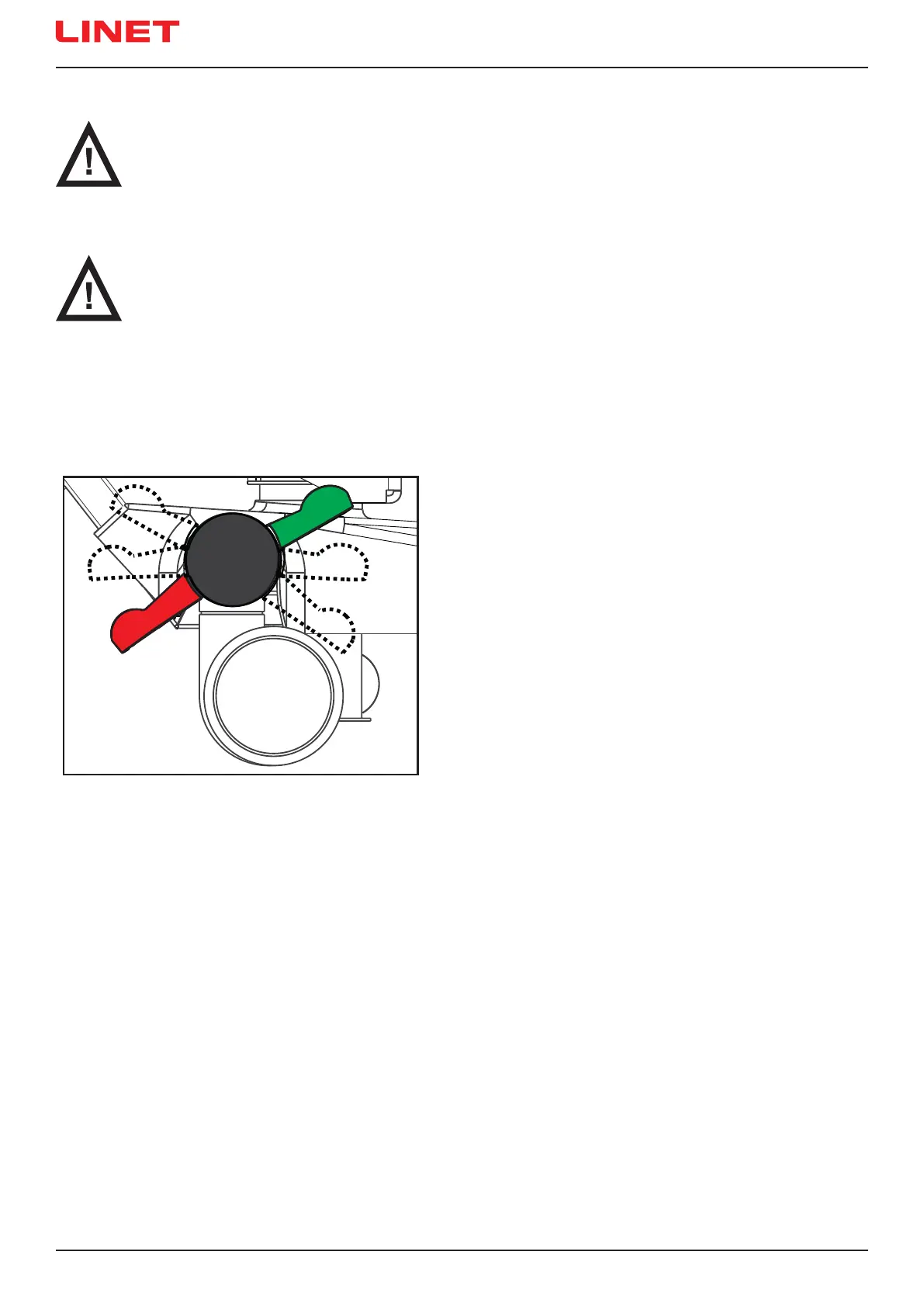

Fig. Positions of Castor Control Lever
3
2
1
Castor control lever positions:
1. Forward Movement - Steering (GREEN PEDAL
DOWN)
An arrested front castor determines the direction of
movement. If the bed is equipped with a fth castor, this
castor determines the direction of movement.
2. Unrestricted Movement
All four castors are unlocked.
3. Braked (RED PEDAL DOWN)
All four castors are braked.
