D9U001MCX-0101_03
148

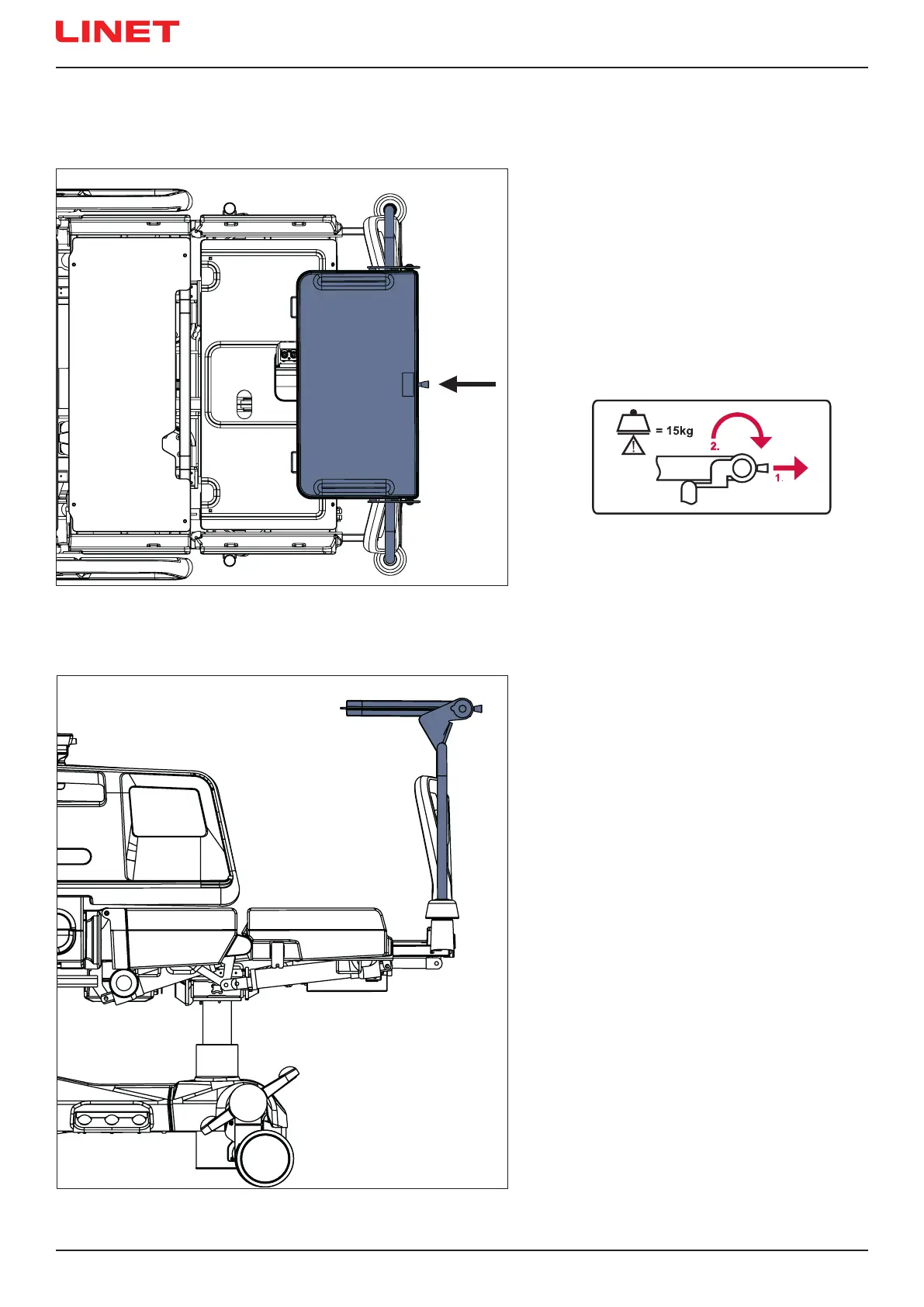

19.9 Monitor Shelf
The Monitor Shelf is intended for transport of the monitors with a weight of up to 15 kg.
Fig. Monitor Shelf label with instruc-
tions for manipulation with board of the
Monitor Shelf
Fig. Monitor Shelf above the foot board
Installing the Monitor Shelf:
► Place the Monitor Shelf to the holes in
the corner bumpers at foot end.
► After pulling the stop as on the label with
instructions (1), adjust orientation of the Monitor
Shelf board by tiping it out (2).
► Fixate monitor with safety belts in order
to avoid any damage during transport.
Fig. Monitor Shelf (side view)
