1. Longitudinal Tilt Icons (UP/DOWN) with Trendelenburg/Antitrendelenburg Tilt Angle Indicator
2. Lateral Tilt Icons (UP/DOWN) with Lateral Tilt Angle Indicator
3. EXIT Icon (to return to the Positioning Screen)
4. Horizontal Position Icon (to adjust the mattress support platform to the horizontal position)
Positioning icons 1 and 2 are explained in chapter „13 Bed Positioning“ on the page 77.

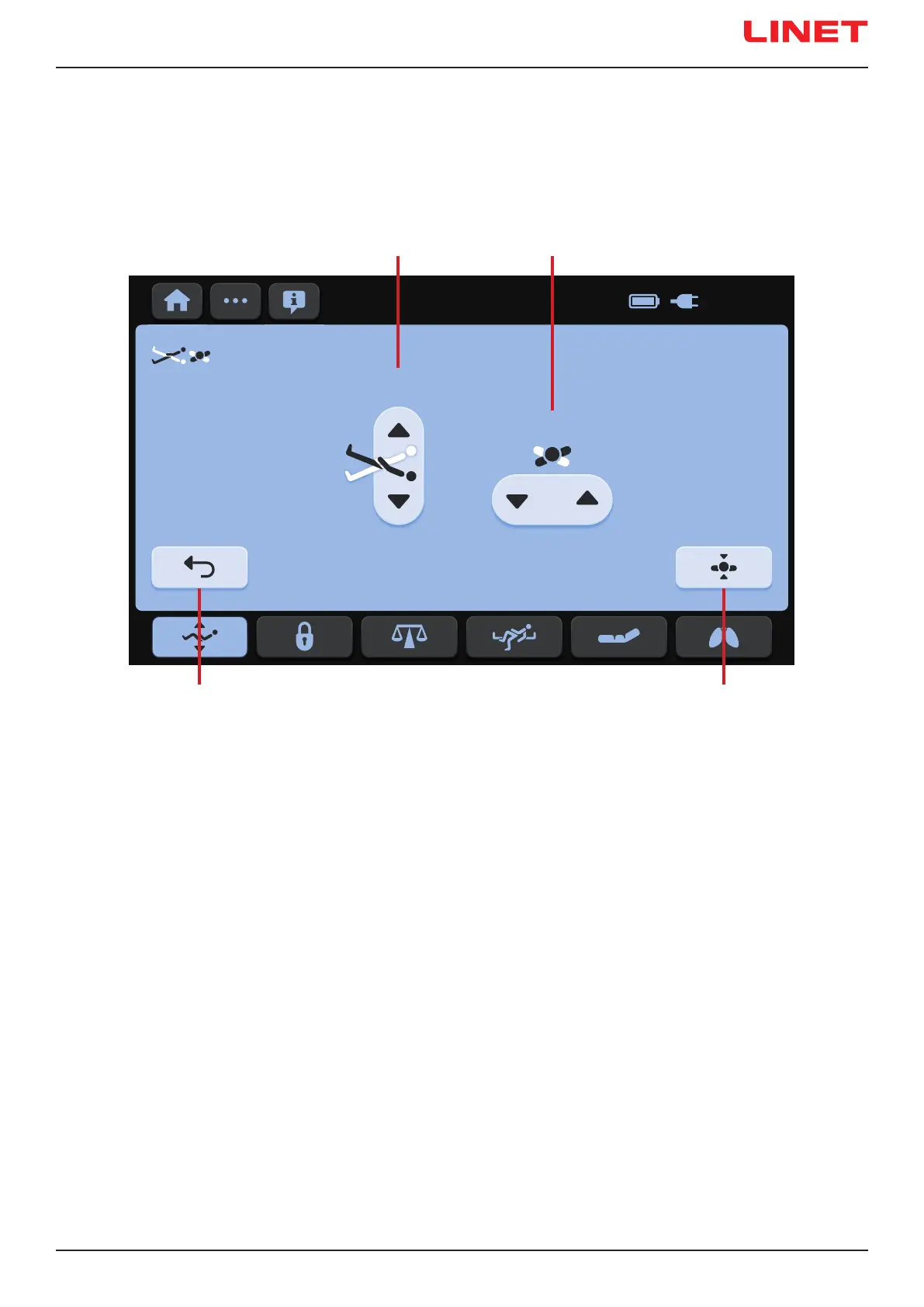

Fig. Combined Positioning Screen
25. 12. 25
22:58
7°
12°
0:03:00
COMBINED
POSITIONING
06
25. 12. 25
22:58
7°
12°
0:03:00
COMBINED
POSITIONING
06
21
3 4
COMBINED TILT POSITIONING
Combined Positioning Screen enables less limited simultaneous positioning of the Lateral Tilt and of the Longitudinal Tilt (Trende-
lenburg Tilt and Antitrendelenburg Tilt).
A corresponding pop-up window indicates the reached tilt adjustment limits of the bed.
